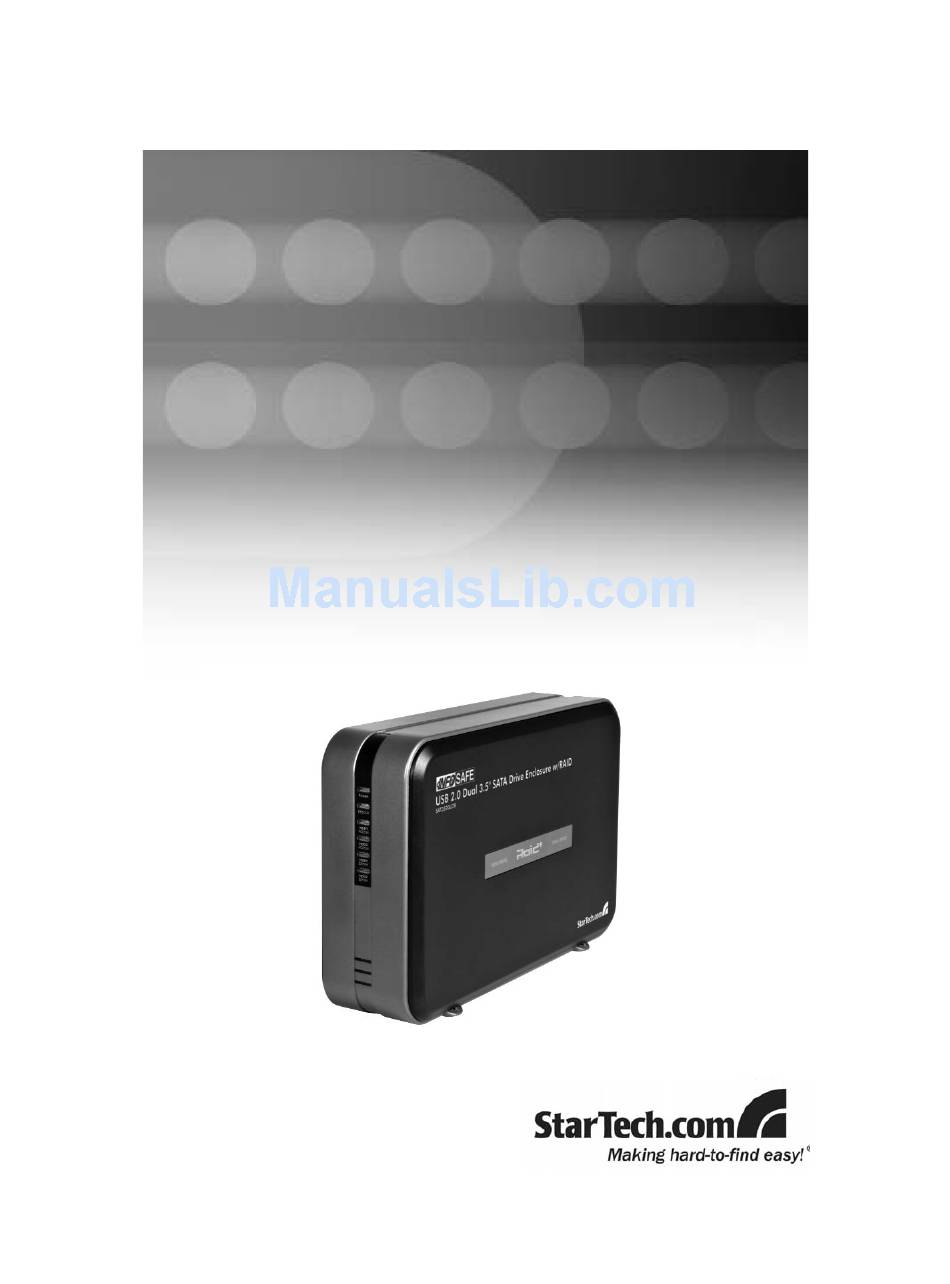

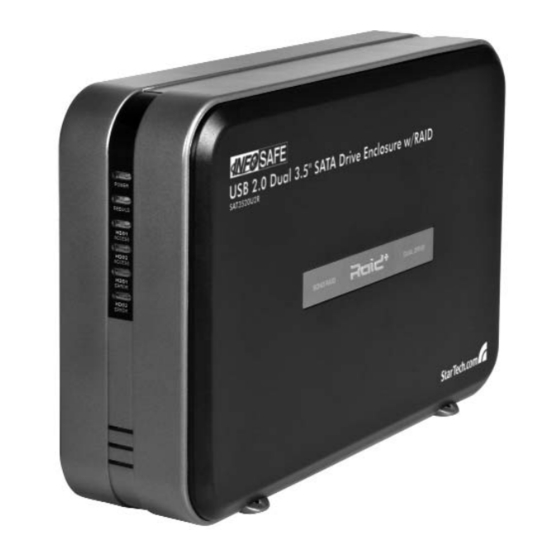

- Page 1 USB 2.0 External RAID Enclosure 2 Drive USB 2.0 External RAID 0, 1 Enclosure SAT3520U2R Instruction Manual Actual product may vary from photo...
- Page 2 StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks,...
-
Page 3: Table Of Contents
Instruction Manual Table of Contents Introduction ........... . .1 Features . -
Page 4: Introduction
Instruction Manual Introduction Thank you for purchasing a StarTech.com 2 Drive USB 2.0 External RAID 0, 1 Enclosure. An ideal fit for RAID applications, this Dual 3.5" SATA Drive Enclosure is the perfect solution for consolidating your storage into a convenient, external solution. -
Page 5: Hardware Guide
Instruction Manual Hardware Guide Front Panel Power indicator Rebuild indicator HDD1 Access Indicator HDD2 Access Indicator HDD1 Error Indicator HDD2 Error Indicator Ventilation Rear Panel Power switch Power receptacle USB 2.0 port Power indicator... -
Page 6: Operating Modes
Please note: If RAID 1 mode is in effect, and you wish to change to single or RAID 0 modes, please use the RIB Clean utility to clean the drives partition table, located on the StarTech.com website, in the Downloads section. For more information, please see the section titled Using the RIB Clean Utility. -
Page 7: Using The Rib Clean Utility
Clean Utility must be used to prepare partition information. To use the RIB Clean Utility: 1. Download the utility from the StarTech.com website (Downloads section), and save it to the local computer. 2. Double-click on the RIBClean icon to launch the Utility: 3. -
Page 8: Drive Installation
(for Non-RAID or RAID 0 Configurations). Please note that if you are configuring SAT3520U2R for RAID applications (Mirroring Mode, Striping Mode or Spanning Mode), the installed hard drives must be identical in brand, size and model number. -
Page 9: Raid 1 Mirror Mode
Once secure, power on the enclosure. SAT3520U2R will recognize the drive as the master drive, and prepare it for mirroring. Once complete, the error light indicator of the second drive will illuminate (denoted as HDD2 Error). - Page 10 Place cover back enclosure, and replace the screws removed earlier. Power enclosure. SAT3520U2R will indicate that the Rebuild function is under way (the corresponding light will display activity), as the data from Drive 1 is mirrored onto Drive 2, and RAID 1 is configured on the drives.
-
Page 11: Specifications
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,... - Page 12 United States, Canada, the United Kingdom and Taiwan. Visit www.startech.com for complete information about all our products and to access exclusive interactive tools such as the Parts Finder and the KVM Reference Guide.
