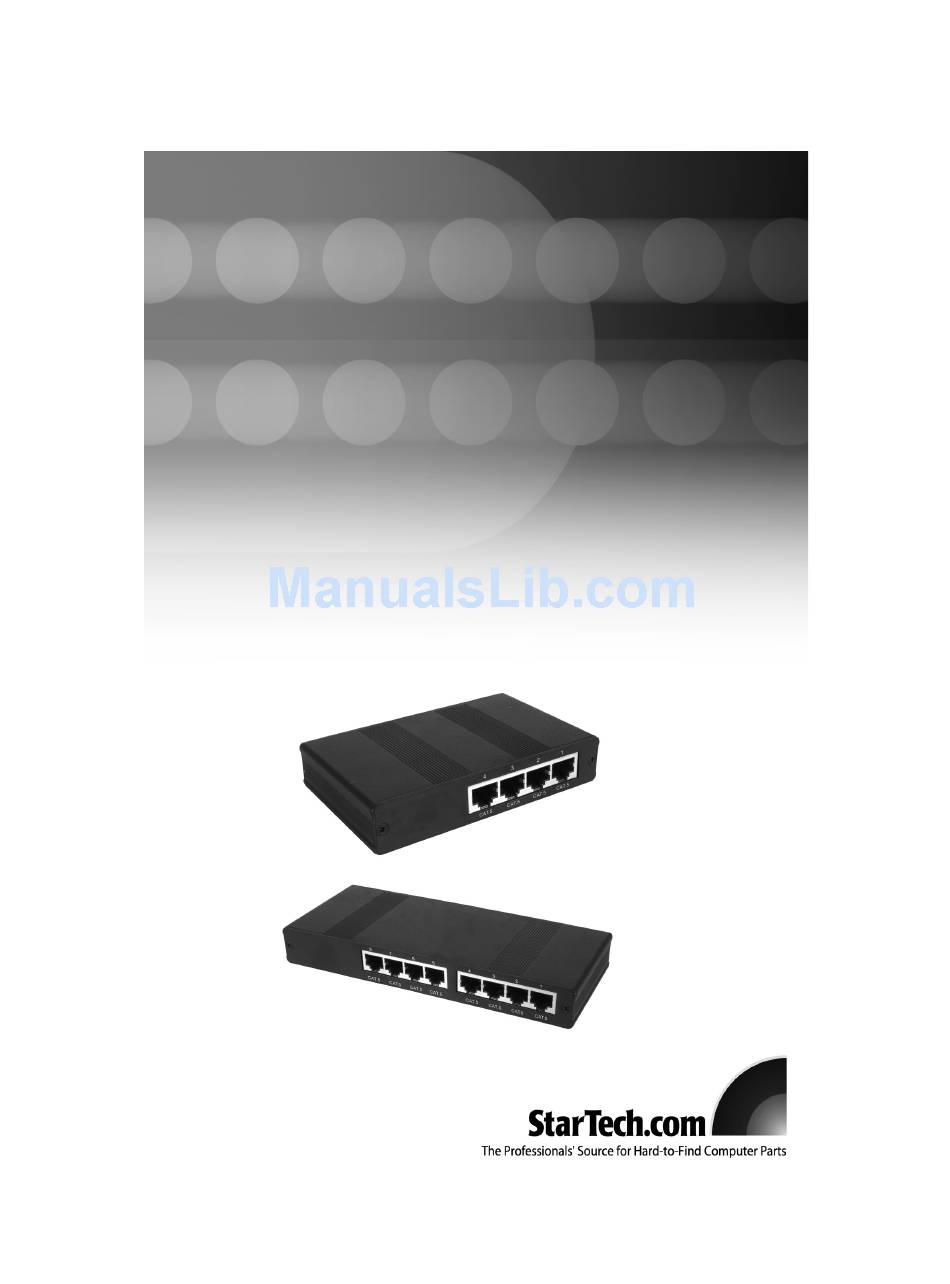

- Page 1 UTP Cat5 Extender & Splitter 4/8-port Ethernet VGA Signal Extender & Splitter ST124UTPE Instruction Guide ST128UTPE...
-
Page 2: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 3 Table of Contents Introduction ..........2 Connecting Your VGA Extender and Splitter .
- Page 4 Category 5 patch cable, two for each remote display (if using premises cabling) Do you need additional cables? Visit www.startech.com to find what you need and the name of your local StarTech.com dealer. NOTE: The total length of RJ45 cables supporting each remote display cannot exceed...
- Page 5 I I n n s s t t a a l l l l a a t t i i o o n n The VGA Extender is composed of two different units: the ST124UTPE(4- port)/ST128UTPE(8-port) Extender and Splitter, along with a STUTPRXL Remote Receiver (available seperately).
- Page 6 Step 3 (See Below) (See Below) (See Below) 1. Place the VGA Extender (ST128UTPE/ST124UTPE) near the local computer. 2. Switch off the computer. 3. Connect the data cable from the local computer display to the OUTPUT port on the VGA Extender.
-
Page 7: Completing The Installation
The following section provides troubleshooting help. The solutions are arranged in the order they should be attempted in most situations. If you continue to have difficulties after attempting the solutions in this section, please contact StarTech.com technical support. One or more of the remote displays is black or displays a “no signal” message: This means that the Remote Receiver is not receiving a signal from the VGA Extender. - Page 8 ST128UTPE: 8 x Cat. 5 (out) 1 x HD-15 VGA (in) 1 x HD-15 VGA (out) Power External Adapter: 12V DC 600mA ST124UTPE: 130 x 83.5 x 29.5 Dimensions (L x W x H) mm: ST128UTPE: 200 x 83.5 x 29.5 ST124UTPE: 247g Weight...
- Page 9 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,...
- Page 10 United States, Canada, the United Kingdom and Taiwan. Visit www.startech.com for complete information about all our products and to access exclusive interactive tools such as the Parts Finder and the KVM Reference Guide.
