Brickcom CB-101A Series User Manual page 55

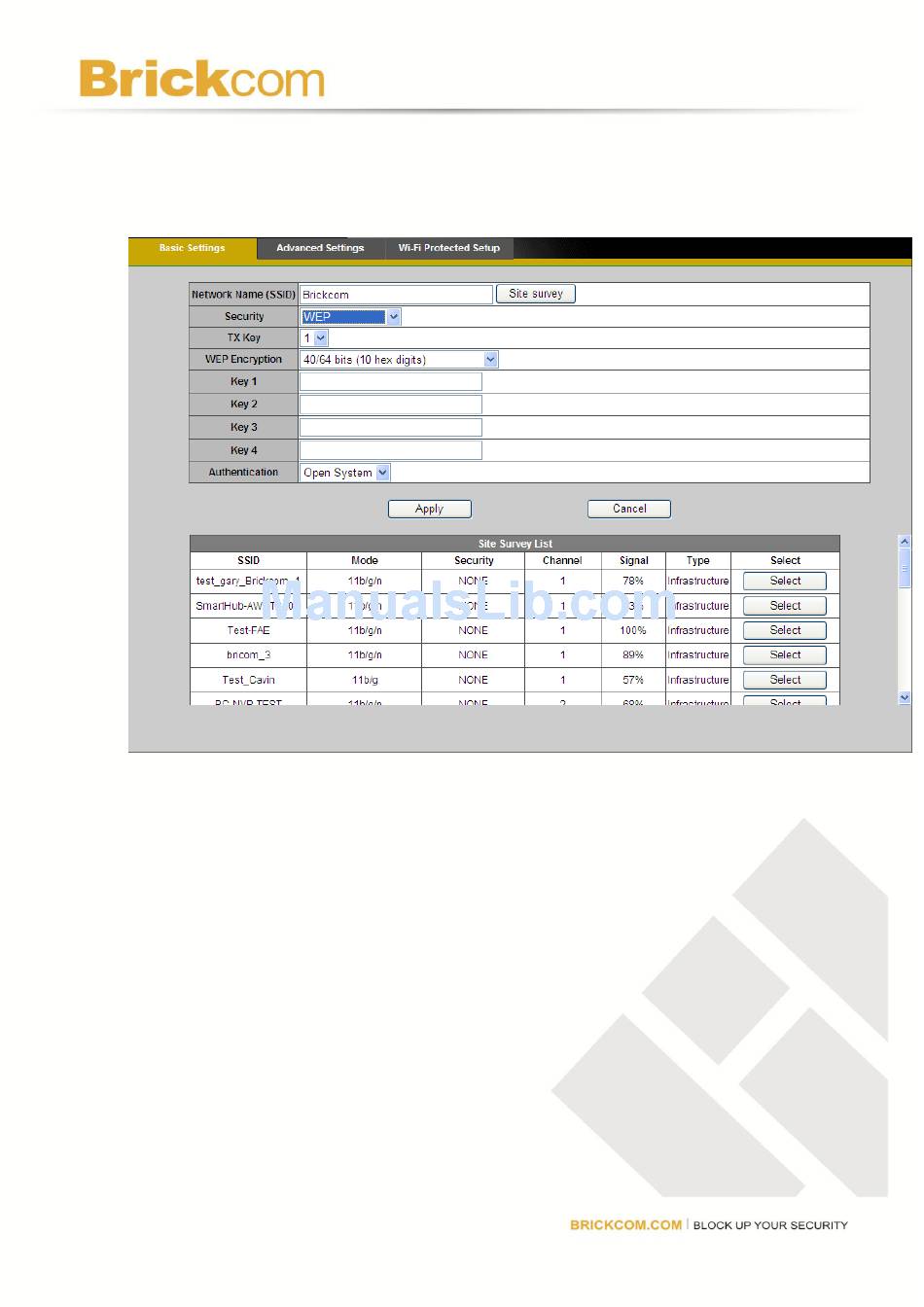

WEP- Wired Equivalent Privacy (WEP) is a basic encryption method which transmits network
broadcast messages using radio signals. It is not as secure as WPA.
Tx Key - Select a key from the drop-down menu.
WEP Encryption - Select a level of WEP encryption: 64 bits 10 hex digits or 128 bits 26 hex
digits. The default is 64 bits 10 hex digits.
Key 1-4 - Enter the WEP key(s) manually.
Authentication - The default is set to Open System, which allows either Shared Key or Auto
authentication to be used. With Shared Key authentication, the sender and recipient use a WEP
key for authentication. With Auto authentication, the sender and the recipient do not use a WEP
key for authentication.
Click Apply to apply settings or Cancel to cancel changes.
- 48 -
