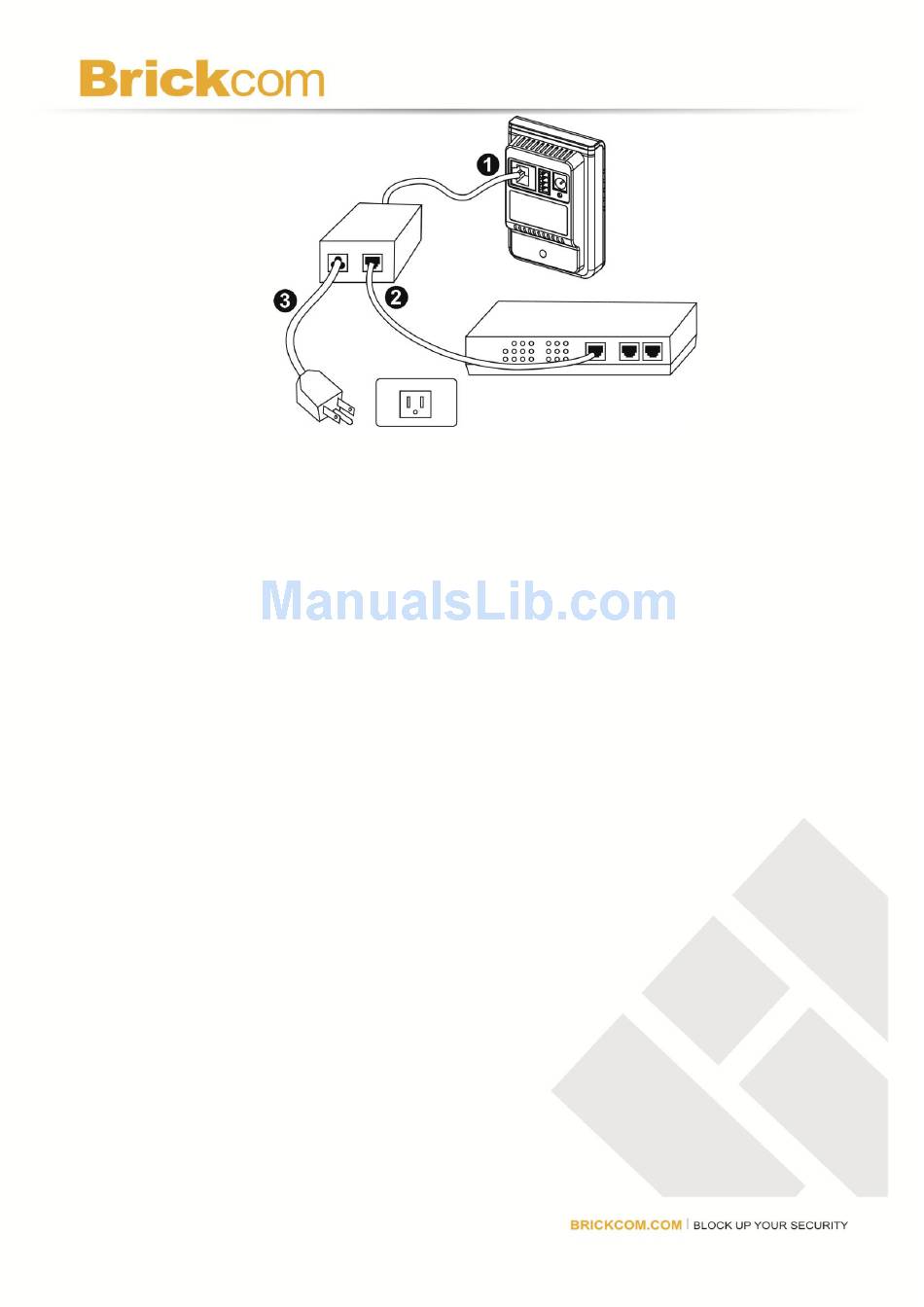

5. Use a standard Ethernet cable to connect the camera to a PoE Injector.

6. Use a standard Ethernet cable to connect the PoE Injector to the non-PoE switch.

7. Use a standard power cable to connect the PoE Injector to a power outlet.

- 11 -
