connector on the camera.
2 Basic Connection (Without PoE)
2.1 Connect the camera to a switch using a standard Ethernet cable.
2.2 Connect the power adapter from the camera to a power outlet.
Note: DC12V 1A power adapter is required.
3 Power over Ethernet (PoE) Connection
3.1 The CB-101A is PoE compliant, so there are two options for connecting the camera
to a power and Ethernet source.
PoE-enabled switch or a non-PoE switch.
A. If using a PoE-enabled switch:

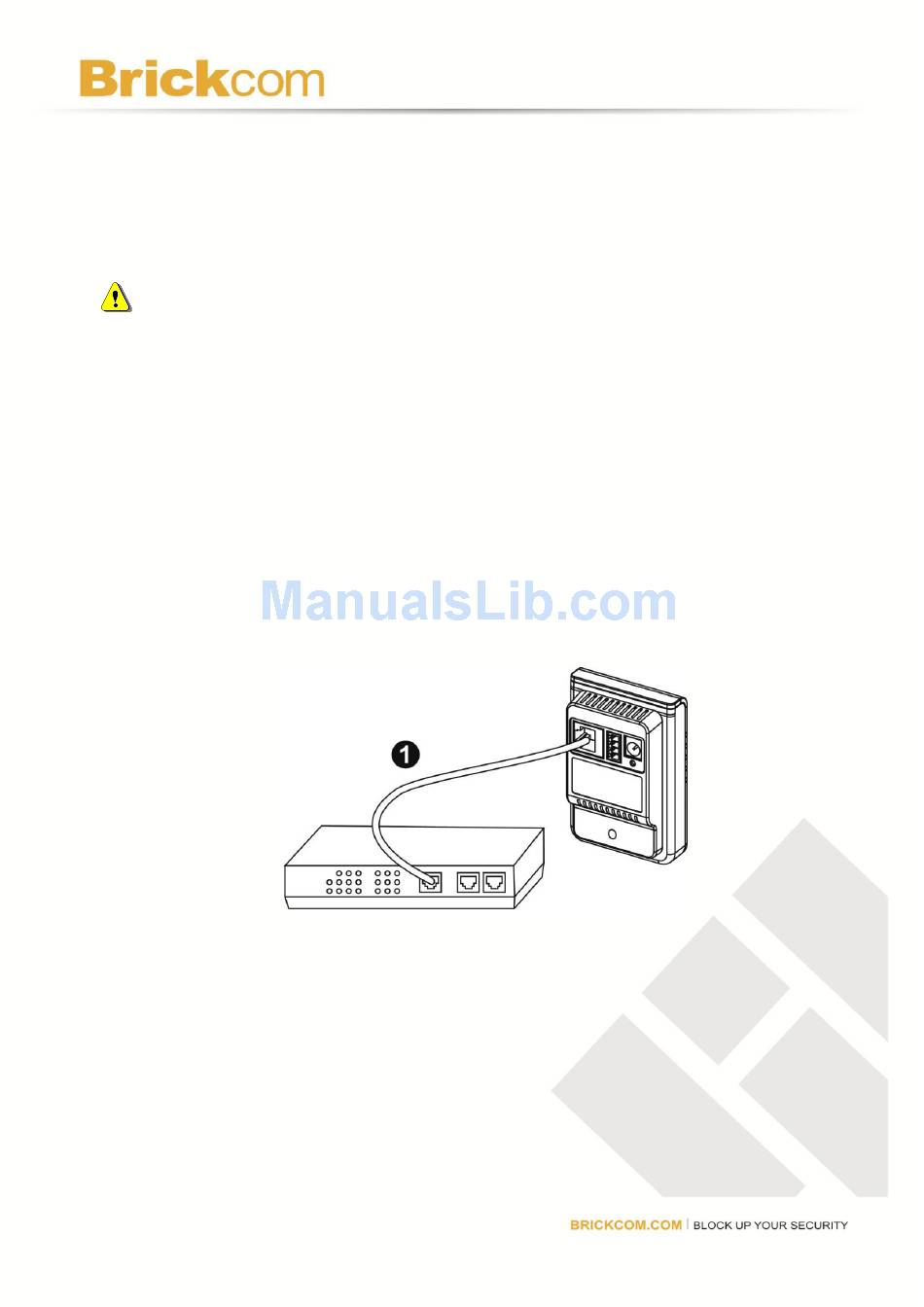

1. Use a single Ethernet cable to connect the camera to the PoE-enabled switch.
B. If using a non-PoE switch:
The camera can either be connected to a
