Adjustable Depth Open Frame Wall Mount Rack
Product IDs
RK12WALLOA
RK15WALLOA
RACK-18U-20-WALL-OA
RACK-21U-20-WALL-OA
RACK-24U-20-WALL-OA

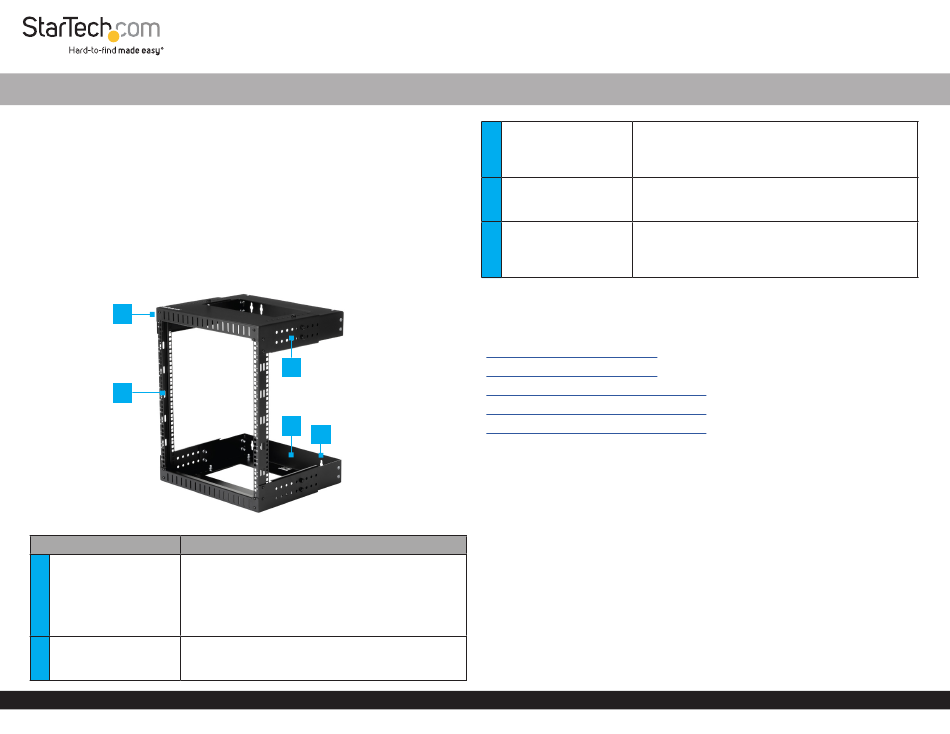

Product Diagram
Front View
1
2
Component
• Structural components of the Adjustable Depth
Rack
• The Adjustment Holes on the sides allow for
Front Horizontal
1
Brackets (x 2)
variable depth
• Assembly Screw Holes can be found at the front
and sides to attach the Mounting Posts
• Mounting Holes along the Mounting Posts allow
to mount Rack Equipment
2
Mounting Posts
• Features Square Cage Nut Holes
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
3
4
5
*Product may vary from image
Function
• Used to assemble the Front and Rear Horizontal
Brackets together
Depth Adjustment
3
Holes
• Allow for Adjustable Depth from 12 to 20 inches
(30.4 to 50.8 cm)
• Structural components of the Adjustable Depth
Rear Horizontal Brackets
Rack
4
(x 2)
• Wall Mounting Holes are located along the length
• Use to wall mount the Adjustable Depth Rack
Wall Mounting Holes
• Wall Mounting Holes are spaced 12 inches (30.48
5
(x 8)
cm) [inner holes] and 16 inches (40.64 cm) [outer
holes]
Product Information
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit:
www.StarTech.com/RK12WALLOA
www.StarTech.com/RK15WALLOA
www.StarTech.com/RACK-18U-20-WALL-OA
www.StarTech.com/RACK-21U-20-WALL-OA
www.StarTech.com/RACK-24U-20-WALL-OA
Requirements
• Phillips Head Screwdriver
• Appropriate Mounting Hardware for the Wall Type
• (Optional) Wrench
• (Optional) Cage Nut Tool
Package Contents
• Adjustable Depth Server Rack x 1
• Assembly Screws x 16
• Bolts x 24
• Washers x 24
• Quick-Start Guide x 1
• M6 Cage Nuts (Quantity outlined in the table below)
• M6 Screws (Quantity outlined in the table below)
• M6 Plastic Washers (Quantity outlined in the table below)
Quick-Start Guide
Manual Revision: August 29, 2023 8:45 AM
