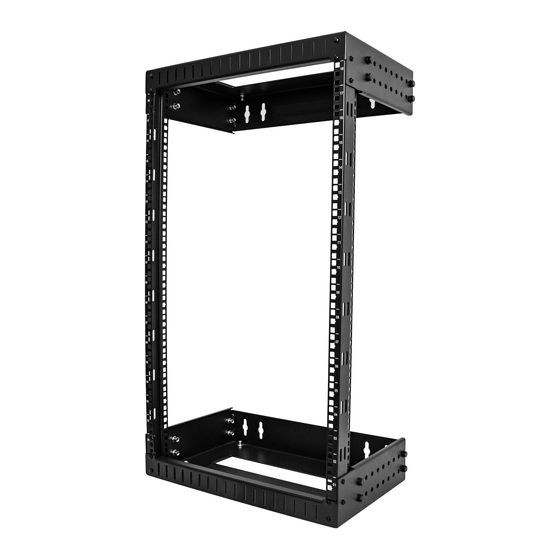

Adjustable depth open frame wall mount equipment rack

Advertisement

Quick Links

Adjustable Depth Open Frame Wall Mount Equipment Rack

Product IDs

RACK-18U-20-WALL-OA
RACK-21U-20-WALL-OA
RACK-24U-20-WALL-OA

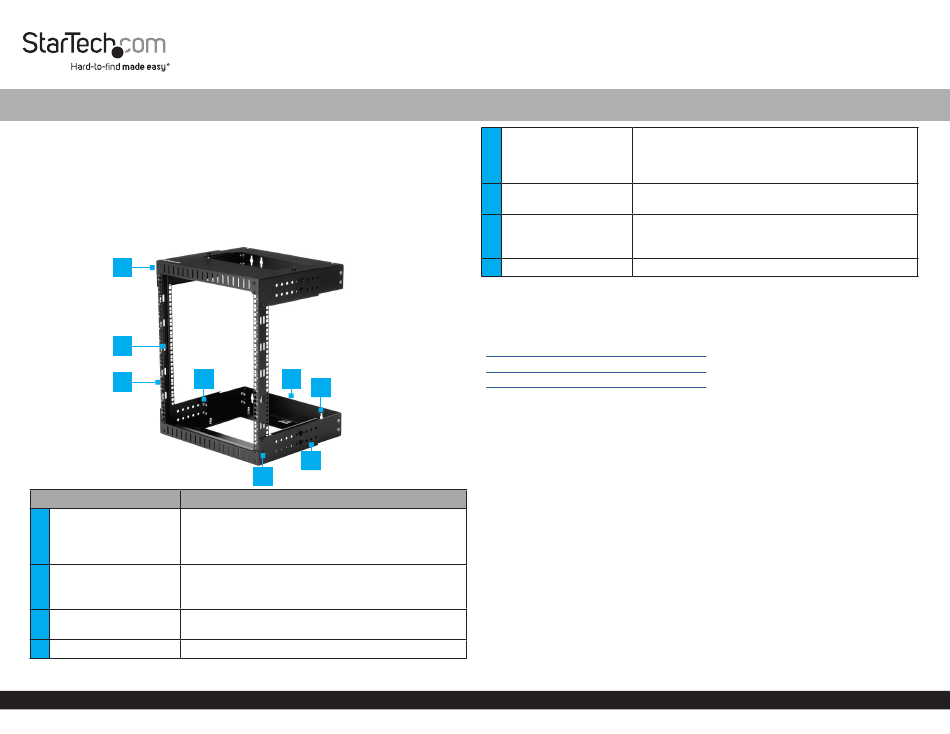

Product Diagram

Front - Angled View
1
2
4
3
Component
• Structural components of the Adjustable Depth
Server Rack
Front Horizontal
1
Brackets (x 2)
• Holes, located on the top and sides, allow for
adjustable depth from 12-20 inches
• Structural components of the Adjustable Depth
Server Rack
2
Vertical Rails (x 2)
• Features Cage Nut Holes
• Use Cage Nuts to mount equipment into the
3
Cage Nut Holes
Adjustable Depth Server Rack
4
Bolts and Washers (x 24)
• Assemble the structural components
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
5
6
8
7
*Product may vary from image
Function
• Structural components of the Adjustable Depth
Server Rack
Rear Horizontal Brackets
5
(x 2)
• Holes, located on the top and sides, allow for
adjustable depth from 12-20 inches
Wall Mounting Holes
6
• Wall mount the Adjustable Depth Server Rack
(x 8)
• Assembly Screw Holes can be found on the Front
Assembly Screw Holes
7
Horizontal Brackets and Vertical Rails
(x 16)
• Assemble the structural components
8
Adjustment Holes
• Set the mounting depth

Product Information

For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit:
www.StarTech.com/RACK-18U-20-WALL-OA
www.StarTech.com/RACK-21U-20-WALL-OA
www.StarTech.com/RACK-24U-20-WALL-OA

Requirements

• Phillips Head Screwdriver
• Appropriate Mounting Hardware for the Wall Type x 4
• (Optional) Wrench
• (Optional) Cage Nut Tool

Warnings

• Read the entire manual and ensure the instructions are fully understood before
assembling and/or using this product.
• Before adding equipment to this product, ensure this product has been properly
mounted.
• Never operate this product if parts are missing or damaged
• The mounting hardware included with this product might not be adequate for some
wall structures. If lacking the necessary expertise to wall mount this product, contact
a construction professional to install the wall mount or to provide specific mounting
instructions for the wall structure.
• Ensure the weight of the equipment does not exceed the weight capacity of this
product. If the weight capacity is exceeded, personal injury or damage to the
equipment are possibilities. This product can support the following weight: up to 90
kg (198.4 lb.).
Quick-Start Guide
Manual Revision: July 17, 2021 1:14 PM
