V i p er s a t C o nf i g u r at i o n MN/22137, rev 1

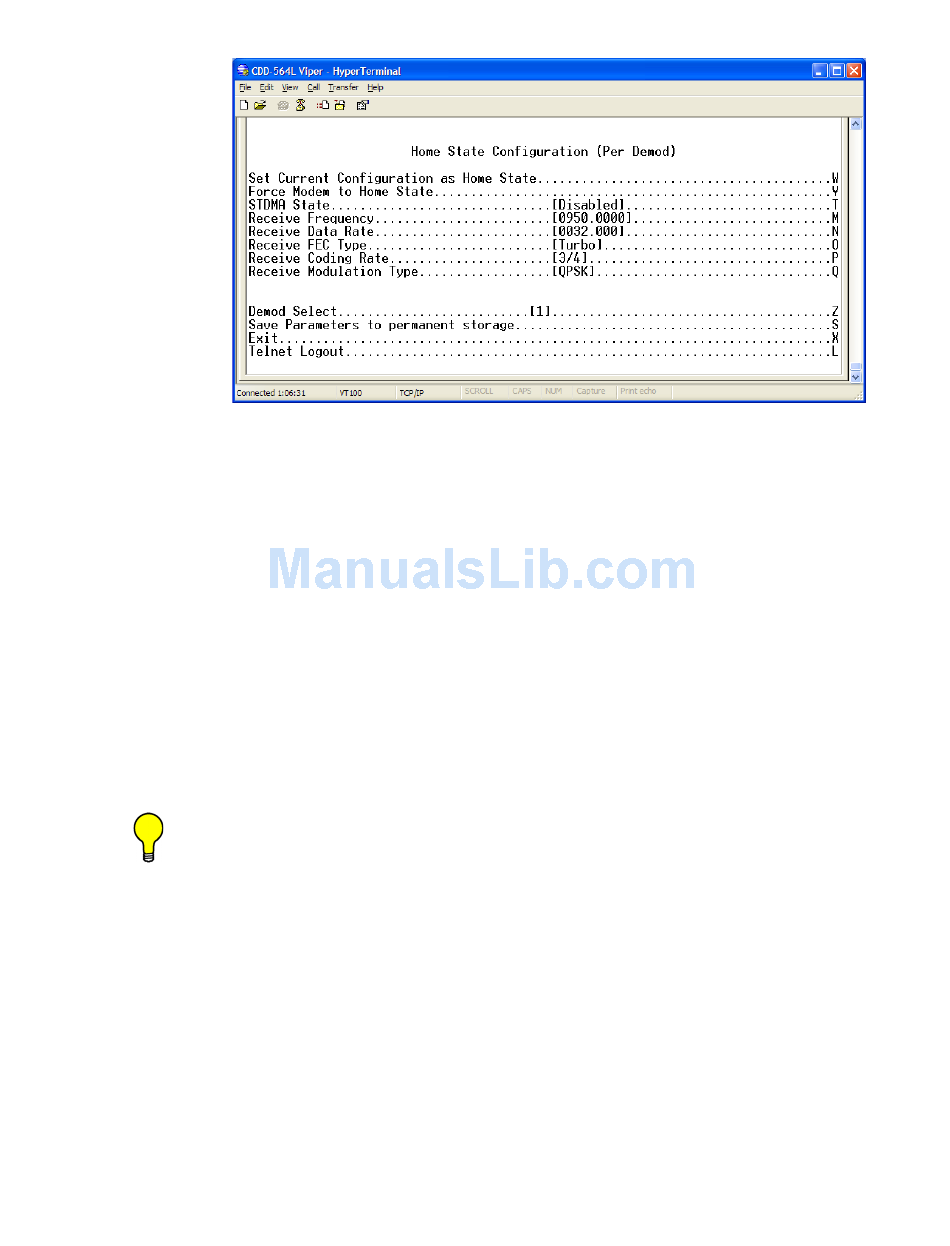

Figure 3-62
Home State Configuration screen

Set Current Configuration as Home State

This command sets the selected Demod's current configuration as its Home
State settings. Assuming the Demod has been properly configured using the
Satellite Demodulator Configuration menu (Rx parameters) and the Feature
Configuration menu (Vipersat STDMA setting), these parameter values will be
copied into the Home State configuration. Rather than entering each of these
values individually, this command can be used as a shortcut for establishing the
Home State settings.
Enter W at the command prompt in the Home State Configuration screen to
execute this command. Once saved, the modem will be configured with the
Home State settings at boot time and when manually reset with the Force
Modem to Home State command.
Tip: This command is useful when a CDD-56X's initial set up is completed and
the unit is functioning as desired in a network.

Force Modem to Home State

If at any time it is desired to have a CDD-56X return to its Home State, this
command (enter Y) can be executed. A warning message is displayed as shown
in figure 3-63, requiring the command to be confirmed before it is executed.
V i p e r s a t C D D - 5 6 X S e r i e s U s e r G u i d e
3-48
