Swann Advanced series Easy Setup Manual page 11

Remote Access: IP addresses
Public and Private IP Addresses
The IP address used by the DVR, whether entered manually (STATIC) or assigned by
the dynamic host (DHCP) is the private IP address of the DVR. The private IP address
is used to locate the DVR on your private network. However, to access the DVR from
a remote location via the Internet, you'll need to know your home network's public
IP address.
What's the diff erence?
The IP addressing system that the Internet utilizes at the moment supports up to
(approximately) 4 billion addresses. That is a lot, but it's not enough for every device
connected to it (computers, phones, video game consoles, DVRs, servers, televisions
and even some refrigerators can all have Internet connections) to have individual
addresses. This problem is solved by assigning an address to each sub-network on
the Internet. This means that all LANs, such as your local network in your home or
offi ce, will have a public IP address which will allow you to fi nd that network from
anywhere connected to the Internet.
This means that all devices connected to your network share one public IP address.
To diff erentiate devices on your network, your network has its own IP address range,
and this is what is referred to as your private IP address. You'll need to know the
private IP address if you're using STATIC addressing and/or are Port Forwarding (i.e.
not using UPnP).
If you're using DHCP addressing and have UPnP enabled on both the router and the
DVR, then you may not need to know the private IP address at all.
How do I fi nd these addresses, and what should I do with them?
If you're setting up a dynamic network (DHCP) then you don't need to know the
private IP address of your DVR (it'll probably change over time, anyway). Rather,
you only need to defi ne the Media Port and Web Port. If you're not using UPnP (if
possible, use UPnP - it's just awesome) then confi gure your router to forward these
ports to the DVR.
If you've confi gured your network using STATIC IP addressing, then you'll be entering
the private IP address directly into the DVR. Then you'll need to choose your Web Port
and Media Port. Finally, you'll have to confi gure your router to forward your selected
ports to the private IP address of the DVR.
Finally, to learn your network's public IP address, you'll need a computer with Internet
access connected via the same network as the DVR you're confi guring. Then, open
an Internet browser window. In the address bar, go to www.whatismyip.com. Your
public IP address will be displayed instantly!
68
10
3 4 5 6

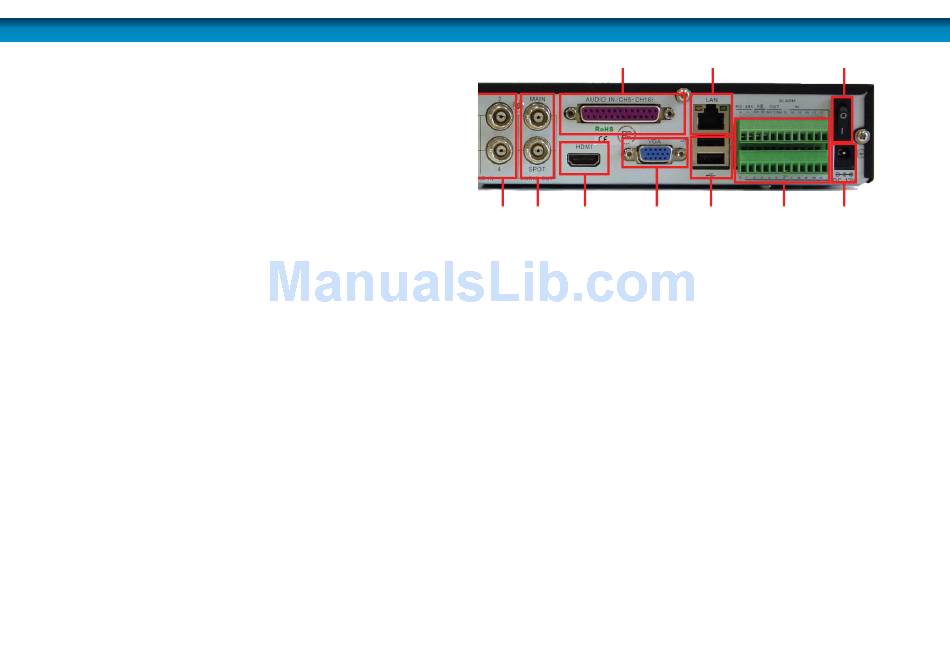

7 Below) USB Backup Port: For
connecting a USB fl ash drive for the
purposes of backing up footage.
8) Alarm/Sensor/RS485 Connections:
For connecting external sensors, alarms
or external devices to the DVR. The
most often used ports are located on
the upper left: this is the RS485 port,
used primarily to connect PTZ (pan, tilt,
zoom) devices.
9) Power Connection: For supplying
power to the DVR. Use only the supplied
power adaptor, and do NOT change or
modify it in any way. Modifi cations to
your power supply radically increases
the risk of electrocution or fi re, and will
immediately void your warranty.
10) Audio Inputs (CH5 ~ CH16):
An additional 12 audio inputs. These
require use of the included serial port
adapter, but otherwise work in the
same manner as the primary audio
inputs.
11 12
7 8 9
11) LAN Port: To connect an Ethernet
cable, allowing the DVR to be connected
to a local area network. This network,
in turn, can be used to give the DVR a
connection to the Internet.
12) Power Switch: Turns the DVR on (I)
or off (O).
