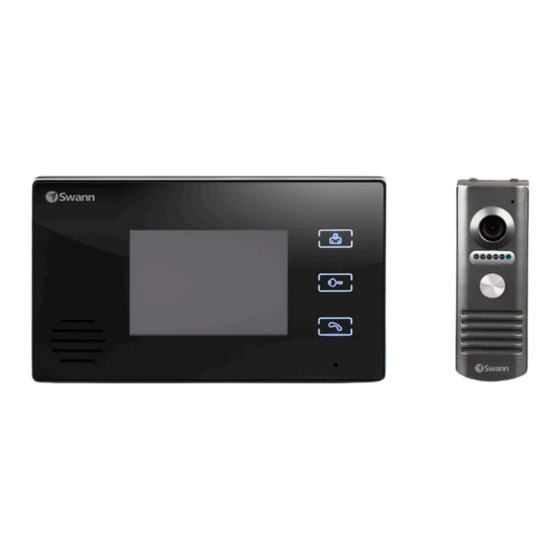

Doorphone video intercom colour camera with 3.5” lcd screen
Hide thumbs
Also See for Advanced Series:
- Easy setup manual (40 pages) ,
- Manual (25 pages) ,
- Installation manual (4 pages)
Related Manuals for Swann Advanced Series
Summary of Contents for Swann Advanced Series
- Page 1 Advanced-Series Doorphone Video Intercom Colour Camera with 3.5” LCD Screen MDP870C210113E...
-
Page 2: Package Contents
Package Contents What’s in the box: • 3.5” LCD monitor • Outdoor camera • Power adapter • Cable 50ft/15m • Mounting screws, brackets & plugs • Operating instructions Layout 3.5” LCD Screen Monitor Unlock Talk Speaker Microphone LCD SCREEN: This is where you view your visitor that the outdoor camera sees. MONITOR: Press this button to connect to the camera and view what the outdoor camera sees. - Page 3 Layout Wiring Terminal Melody Selection Brightness Control Colour Control Volume Control DC12V The left side of the Doorphone has extra controls that you can adjust. MELODY SELECTION: There is a wide variety of different melodies that you can select from. Press this button to select a different melody. BRIGHTNESS: This adjusts the brightness of the image seen on the Doorphone.
-
Page 4: Doorphone Installation
Doorphone Installation 2.48 inches / 63mm We recommended you drill a hole in the wall and to insert the cable before you screw the mounting bracket on. Connect the provided cable and power adapter to the rear of the Doorphone (see page 5). To mount the Doorphone, use the two screws to secure the mounting bracket to the wall. -
Page 5: Wiring Diagram
Wiring diagram 1. Audio wire Blue 2. Ground wire Brown 3. Video wire Green 4. Power wire Black Attach the cable to the rear of the Doorphone by sliding the Outdoor Camera U-shaped connection under each screw terminal. Screw into place and be careful not Electronic to over tighten. -
Page 6: Operation
Operation DOORBELL: The visitor presses the call button to ring the doorbell. A video feed will appear on the Doorphone. UNLOCK: If the “electronic lock” option is TALK: Touch and release the TALK button fitted, press the UNLOCK button to unlock to talk to the visitor. -
Page 7: Troubleshooting
Troubleshooting No sound or hard to hear the visitor: If you are finding it hard to hear the visitor, adjust the volume on the side of the Doorphone to make it louder. If this is not sufficient, ask the visitor to stand closer to the outdoor camera unit when speaking. -
Page 8: Helpdesk / Technical Support Details
Any unit which proves defective during the stated period will be repaired without charge for parts or labour or replaced at the sole discretion of Swann. The end user is responsible for all freight charges incurred to send the product to Swann’s repair centres. The end user is responsible for all shipping costs incurred when shipping from and to any country other than the country of origin.
