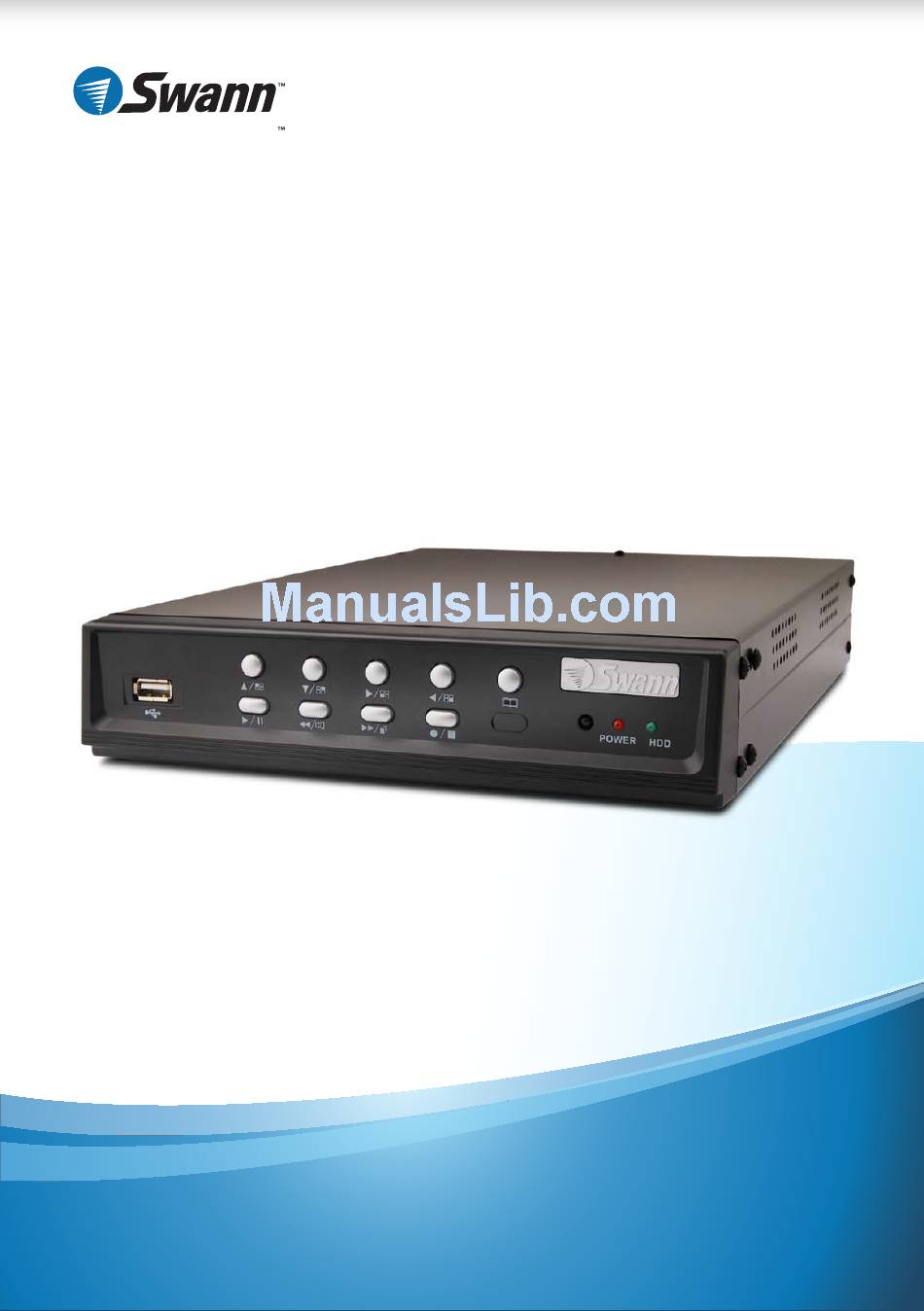

Page 1: Channel Digital Video Recorder
Advanced security made easy DVR4-1000™ 4 Channel Digital Video Recorder Operating Instructions SW242-DU2 / SW244-DUX / SW244-DUM www.swannsecurity.com... -
Page 2: Before You Begin
Before You Begin FCC Verification: NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are de- signed to provide reasonable protection against harmful interference in a residen- tial installation. -
Page 3: Table Of Contents
Contents Before You Begin Contents Package Contents DVR Layout Front Panel Rear Panel Remote Control Layout Connections & Installation Connecting Cameras and Power Adapter Connecting the DVR to a TV Monitor Turning the DVR On/Off and Auto Recovery Image Display Single Camera View Multi Camera View Installing or Changing a Hard Drive... -
Page 4: Package Contents
Package Contents DVR4-1000™ Unit Remote Control Operating Instructions East Setup Guide Power Adapter with Cable Software CD BNC to RCA Video Cable Operating Instructions Security Stickers If you are missing any of the components above, contact Swann Communications for assistance. -
Page 5: Dvr Layout
DVR Layout Front Panel 7 8 9 1. USB Connection 5. Left Arrow 10. Play/Pause Button Download backup footage to Move cursor left in menus or Push to begin last recording or Flash Drive (not included) camera 4 fullscreen view pause playback 2. -
Page 6: Remote Control Layout
Remote Control Layout 1-4. Camera Select Buttons Changes to corresponding camera when pressed 5. Record / Stop Button Start or stop recording 6–7. Up & Down Buttons Moves up / down in menus 8-9. Rewind & Fast Forward Moves left / right in menus 10. -
Page 7: Connecting Cameras And Power Adapter
Connecting Cameras and Power Adapter Cameras and accessories optional 1. Connect the Power and BNC ends of the Security Camera to an Extension Cable. 2. Connect the BNC end of the Extension Cable to the back of the DVR. 3. Connect the power end of the Extension Cable to the Power Splitters. 4. -
Page 8: Connecting The Dvr To A Tv Monitor
To turn on your DVR connect the Power Adapter to the DC 12V input on the back of the unit. To turn the DVR off unplug the DVR from the wall outlet or power point. If the DVR will not be in use for extended periods of time Swann recommends unplugging the unit. Auto-Recovery Feature The DVR4-1000™... -
Page 9: Image Display
Image Display Single Camera View 1. Current Camera Channel 2. Motion Detection Icon 3. Recording Icon 4. Main Display 5. Current Date & Time 6. Mute Audio 7. No Camera Signal Icon MUTE Multi Camera View Multi Camera View with 4 Cameras Multi Camera View with No Cameras... -
Page 10: Installing Or Changing A Hard Drive
Installing or Changing a Hard Drive IMPORTANT NOTE: The following instructions are for installing or changing the hard drive. If your DVR4-1000™ already has a hard drive pre-installed disregard these steps. Installing / Changing a Hard Drive in the DVR4-1000™... -
Page 11: Starting The Dvr With A New Hard Drive
Starting the DVR With a New Hard Drive When starting the DVR4-1000™ for the first time or starting the DVR after changing to a new hard drive, the DVR will configure the hard drive for use. Fol- low the on screen prompts to configure the hard drive. -
Page 12: Menu Operation
Menu Operation Accessing and Navigating the Menu System The main Setup Menu can be accessed by pressing the Menu Button To navigate the menus press the directional arrow keys To select the highlighted option press To return to the previous menu press Note: The menu cannot be accessed while in playback or backup mode. -
Page 13: Record Menu
Record Menu The Record Menu adjusts recording quality, timers and schedules. Record Speed: Set the recording frame rate per camera. Note: higher frame rates provide smoother recordings but use more hard drive space. You may individually set the Record Speed of each camera. The total number of frames used can not exceed 60 for NTSC systems or 50 for PAL systems. -
Page 14: Motion Detection Menu
Motion Detection Menu The Motion Detection menu allows you to set motion options for each camera. Note: The DVR detects motion based on the level of change in the picture. Channel: Select which camera attributes to change from camera 1-4. Sensitivity: Set the amount of movement necessary before motion detection triggers recording. -
Page 15: Record Menu
Record Menu The Screen menu adjusts the display of cameras in the main camera view. Border: Applies a border between the cameras in multi camera view. Video Adjustment: Adjust the display to fit on your TV monitor. Auto Switching: When active, in live view mode, the DVR will automatically switch between camera channels in full screen mode. -
Page 16: System Menu
F/W Upgrade: Displays the current firmware version and allows future up- grades via a USB Flash Drive. Do not remove the Flash Drive while the firmware is updating as it may damage the DVR. Only use updates authorized by Swann. When complete, remove the Flash Drive and restart the DVR. -
Page 17: Time Search
Time Search Time Search allows you to quickly jump to a specific time and date to view a recording. Start time: This is the date and time of the oldest recording on the DVR. Stop time: This is the date and time of the final recording on the DVR. Enter a time between the Start and End time and press the Play button to view a recording. -
Page 18: Backup Footage
Backup Footage The DVR4-1000™ has a backup feature via the USB port on the front of the DVR. The DVR accepts flash drives or thumbdrives up to 2GB in size. Follow the steps below to backup footage: 1. Insert a USB flash drive / thumbdrive (not included) to the USB port. -
Page 19: Viewing Backup Footage On A Pc
Viewing Backup Footage on a PC Using the VVFPlayer software View backed up footage from the DVR4-1000™ with the included VVFPlayer software located on the CD. 1. Copy the VVFPlayer software from the CD to your computer. 2. Double click to open the VVFPlayer software. -
Page 20: Extract Footage From A Larger Video Clip
Viewing Backup Footage on a PC (cont) Extract footage from a larger video clip When dealing with larger backup files it may be necessary to extract smaller clips. The following describes how to extract footage and export to a new .VVF file. 1. -
Page 21: Troubleshooting Guide
Solution: Analog wireless cameras suffer from interference. The DVR interprets the change of image as motion and records. Swann recommends the use of wired cameras or digital wireless cameras such as the ADW-300 for DVR recording. -
Page 22: Technical Specifications
Technical Specifications Video/Audio Video Format: NTSC / PAL depending on region Operating System: Embedded RTOS Video Input: BNC x 4 Audio Input: RCA x 1, Line-In Video Output: BNC x 1 Audio Output: RCA x 1, Line-Out Display and Recording Display Frame: NTSC: 120 fps (4 ×... -
Page 23: Warranty Information
Swann. The end user is responsible for all freight charges incurred to send the product to Swann’s repair centres. -
Page 24: Technical Support Details
562-777-2551 INTERNATIONAL (M-F, 9am-5pm US PT) +61 3 8412 4610 AUSTRALIA toll free See http://www.worldtimeserver.com for information on time zones and the current time in Melbourne, Australia compared to your local time. © Swann Communications 2008 Advanced security made easy™...
