Gefen EXT-VGA-141SRN User Manual

Vga extender srn
Hide thumbs Also See for EXT-VGA-141SRN:
Table of Contents

Advertisement

Quick Links

Download this manual
®
VGA Extender SRN
EXT-VGA-141SRN
User Manual
www.gefen.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXT-VGA-141SRN and is the answer not in the manual?

Questions and answers

Related Manuals for Gefen EXT-VGA-141SRN

Summary of Contents for Gefen EXT-VGA-141SRN

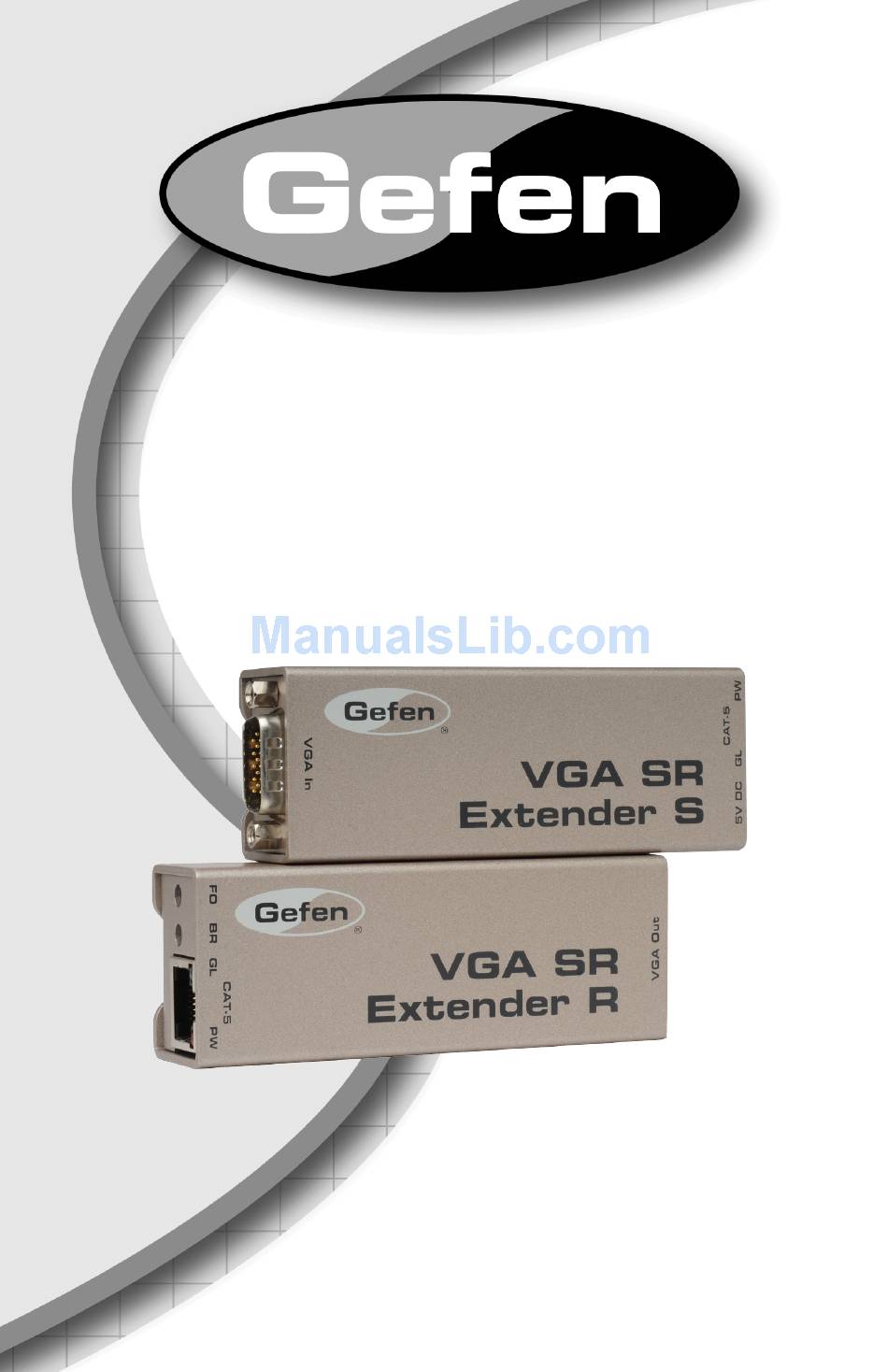

  • Page 1 ® VGA Extender SRN EXT-VGA-141SRN User Manual www.gefen.com...
  • Page 3 Chatsworth, CA 91311 www.gefen.com support@gefen.com Notice Gefen, LLC reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. VGA Extender SRN is a trademark of Gefen, LLC. © 2011 Gefen, LLC. All rights reserved.

  • Page 4: Table Of Contents

    CONTENTS Introduction Operation Notes Features Sender Unit Layout Sender Unit Descriptions Receiver Unit Layout Receiver Unit Descriptions Connecting the VGA Extender SRN Wiring Diagram Operating The VGA Extender SRN Adjusting the Signal Quality 10 Network Cable Wiring Diagram 11 Specifications 12 Warranty...

  • Page 5: Introduction

    Congratulations on your purchase of the VGA Extender SRN. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate.

  • Page 6: Operation Notes

    EDID. If using a non-VESA standard resolution or if EDID is needed, an EDID storage and relay device is necessary. Gefen recommends the use of a DVI Detective (part# EXT-DVI-EDID, EXT-DVI-EDIDN, or EXT-DVI-EDIDP) with two VGA to DVI adapters.

  • Page 7: Features

    FEATURES Features • Extends any VGA or high definition component display up to 150 feet (45 meters) • Supports resolutions up to 1080p, 1920 x 1200, and 2K • Equalization trim pot for brightness adjustment • Uses only one CAT-5e cable for extension Package Includes (1) VGA Extender SRN - Sender Unit (1) VGA Extender SRN - Receiver Unit...

  • Page 8: Sender Unit Layout

    SENDER UNIT LAYOUT Top View Front View Back View...

  • Page 9: Sender Unit Descriptions

    SENDER UNIT DESCRIPTIONS VGA In Connect a VGA cable from the computer to this port. CAT-5 Connect a CAT-5e cable from this connector to the CAT-5e connector on the Receiver Unit. This LED indicator will glow bright yellow-orange once the included 5 V DC power supply is connected between the Sender Unit and an available electrical outlet.

  • Page 10: Receiver Unit Layout

    RECEIVER UNIT LAYOUT Top View Front View Back View...

  • Page 11: Receiver Unit Descriptions

    RECEIVER UNIT DESCRIPTIONS VGA Out Connect a VGA cable from the port to the computer display. This is the Focus trim pot. Use this trim pot to compensate for distance and cable skew compensation. See page 9 for details. This is the Brightness trim pot. Use this trim pot to adjust the brightness of the picture.

  • Page 12: Connecting The Vga Extender Srn

    VESA resolutions should be output by most computers without the need of an EDID. If using non-VESA-standard resolutions or if EDID is needed, an EDID storage and relay device is needed. Gefen recommends using the DVI Detective (Gefen Part No. EXT-DVI-EDID, EXT-DVI-EDIDN, or EXT-DVI-EDIDP) with two VGA to DVI adapters.

  • Page 13: Operating The Vga Extender Srn

    OPERATING THE VGA EXTENDER SRN Adjusting the Signal Quality The Brightness and Focus adjustments are found on the Receiver Unit and will help compensate for issues that can be introduced by outside interference and cable skew variances. Focus trimpot Brightness trimpot If the outgoing image is too dark or too bright, the brightness trim pot can be tuned to help brighten the image.

  • Page 14: Network Cable Wiring Diagram

    NETWORK CABLE WIRING DIAGRAM Gefen has specifically engineered their products to work with the TIA/EIA-568-B specification. Please adhere to the table below when field terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. Color...

  • Page 15: Specifications

    SPECIFICATIONS Video Amplifier Bandwidth ............... 350 MHz Input Video Signal ................1.2 Volts p-p Input Sync Signal ................ 5 Volts p-p (TTL) Horizontal Frequency Range .............. 15 - 70 KHz Vertical Frequency Range ..............30 - 170 Hz Video In ....................HD-15, male Video out ..................

  • Page 16: Warranty

    If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
  • Page 20 Rev A2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
