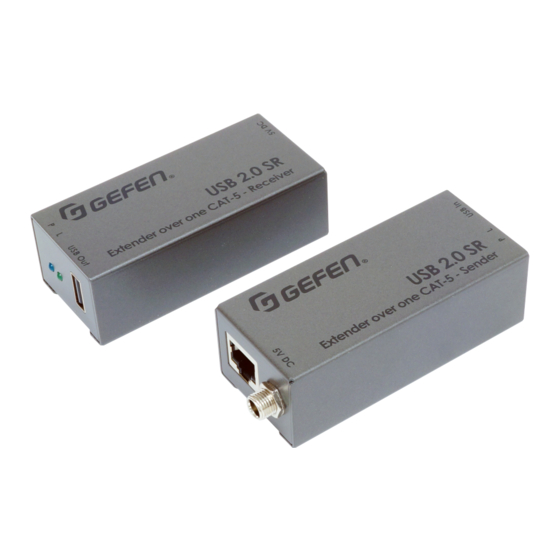

- Page 1 USB 2.0 SR Extender over one CAT-5 Cable EXT-USB2.0-SR User Manual Version A1...
- Page 2 Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Page 3 Warranty Information For the latest warranty coverage information, refer to the Warranty and Return Policy under the Connect section of the Gefen Web site at http://www.gefen.com/connect/warranty-and- return-policy...
- Page 4 Petaluma, CA 94954 USA © 2017 Core Brands, LLC. All Rights Reserved. All trademarks are the property of their respective owners. Gefen and Core Brands, LLC reserve the right to make changes in the hardware, packaging, and any accompanying documentation without prior notice.
- Page 5 However, Gefen and Core Brands, LLC assume no responsibility for any inaccuracies that may be contained in this manual. In no event will Gefen and Core Brands, LLC be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual.
- Page 6 Packing List* The following items are shipped with the EXT-USB2.0-SR. If any of these items are not present in the box when you first open it, immediately contact your dealer or Gefen. • USB 2.0 SR Extender - Sender Unit •...
-
Page 7: Table Of Contents
Table of Contents Introduction ........................8 Sender Unit ..........................8 Receiver Unit .........................10 Installation ........................12 Connection Instructions......................12 Sample Wiring Diagram ....................... 13 LED Status ........................14 Specifications .........................15... -
Page 8: Introduction
Introduction Sender Unit USB 2.0 SR Extender over one CAT-5 - Sender... - Page 9 Introduction Name Description Power This LED indicator glows solid blue when the unit is powered. See LED Status (page 14) for more information. Link This LED glows solid green when a link is established between the Sender and Receiver. See LED Status (page 14) more information.
-
Page 10: Receiver Unit
USB 2.0 SR Introduction Extender over one CAT-5 - Sender Receiver Unit USB 2.0 SR Extender over one CAT-5 - Receiver... - Page 11 Introduction Name Description Power This LED indicator glows solid blue when the unit is powered. See LED Status (page 14) for more information. Link This LED glows solid green when a link is established between the Sender and Receiver. See LED Status (page 14) more information.
-
Page 12: Installation
Installation Connection Instructions ► USB Connect the included USB cable from the USB In port of the Sender unit, to a USB host device such as a computer. Using another USB cable, connect your USB device to the USB Out port on the Receiver unit. -
Page 13: Sample Wiring Diagram
Installation Sample Wiring Diagram USB CABLE CAT-5e OR BETTER CABLE (Up To 165 FT) Computer Receiver Sender USB Peripheral EXT-USB2.0-SR... -
Page 14: Led Status
LED Status The Power and Link LED indicators on the Sender and Receiver unit provides basic information on the current status of each unit. The information, in the table below, applies to both the Sender and Receiver unit. Power Description Solid blue •... -
Page 15: Specifications
Specifications* Supported Formats • USB 2.0 • USB 1.1 Connectors & Indicators Link Connectors (Sender/Receiver) • 1 x RJ-45, shielded USB Connector (Sender) • 1 x USB type B USB Connector (Receiver) • 1 x USB type A • Locking-type, 5.5mm barrel/2.5mm pin Power Supply Connectors (Sender/Receiver) Link Indicator (Sender/Receiver) •... - Page 16 1800 S McDowell Blvd. Petaluma CA 94954, USA 1-707-283-5900 1-800-472-5555 Copyright© 2017 Core Brands, LLC. Part Number MAN-EXT-USB2.0-SR Version A1...
