Arecont Vision MegaBall 2 Specifications

1080p–5 Megapixels

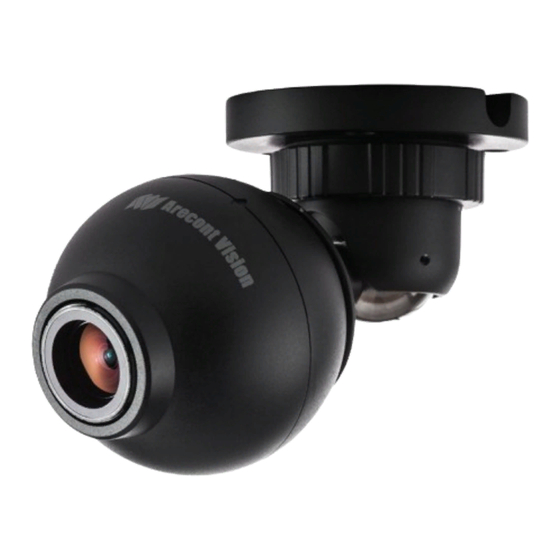

MegaBall
®
1.3–5MP H.264 All-in-One Manual Lens or Motorized P-Iris Lens Day/Night Indoor IP Cameras
(WDR option in 1080p and 3MP)
MegaBall Cameras
®
1080p
AV2245PM-D
AV2245PM-D-LG
AV2245PM-W
Flush Mount
(-D)
LG Version (-LG – Light Gray)
Stylish MegaBall 2 multi-megapixel cameras provide ample
®
resolution to zoom-in for details in live or recorded video. These
indoor all-in-one solutions integrate a 1080p, 3 or 5-megapixel
camera with fast frame rates and an IR corrected motorized
vari-focal P-iris lens with an adjustable wall mount or flush and
surface mount dome housing. H.264 compression reduces network
Integrated Motorized Lens P-Iris Control for
with Remote Focus Best Depth of Field
and Zoom and Image Clarity
Features:
Remote Focus/Zoom P-Iris Lens (-PM Models)
•
P-Iris Control to Get Best Depth of Field and Image Clarity
•
(-PM Models)
Optional True WDR up to 100dB at Full Resolution Available
•
on Some 1080p and 3MP Models: See Clearly in Shaded
and Bright Light Conditions Simultaneously
Light Gray and Black Dome Options
•
Casino Mode™ Guarantees Continuous 30fps Frame Rate
•
Required by Gaming Industry Regulations (AV2145 & 2245
Models)
Binning Mode for Strong Low-Light Performance on 3MP
•
and 5MP Resolutions
Made in the USA
2
1080p WDR 3Megapixel
AV2246PM-D AV3245PM-D
AV2246PM-D-LG AV3245PM-D-LG
AV2246PM-W AV3245PM-W
Surface Mount
All-in-One Ball True Day/Night
Solution with IR Cut Filter
3Megapixel WDR
AV3246PM-D
AV3246PM-D-LG
AV3246PM-W
bandwidth and storage requirements while delivering full frame
rates and full resolution without sacrificing image quality. Day/Night
functionality allows for 24-hour surveillance. Wide Dynamic Range
(WDR) up to 100dB at full resolution balances light and dark areas in
the same scene (AV2246 and AV3246). Binning mode for increased
low-light sensitivity is available for 3MP and 5MP cameras.
Pixel Binning Mode Wide Dynamic Range
on 3 and 5MP Models Available on AV2246 and
AV3246 Models
True Day/Night Functionality with Mechanical IR Cut Filter (DN Models)
•
Tamper-Resistant Housing
•
Installer Friendly Cable Management, 3-Axis Adjustment, In-Ceiling
•
and Surface Mount Dome
PoE and Auxiliary Power: 12–48V DC/24V AC
•
Dual Encoder H.264/MJPEG
•
Privacy Mask, 1024 Zone, Motion Detection, Flexible Cropping,
•
Bit Rate Control, Multi-Streaming and Forensic Zooming
Fast Frame Rates
•
PSIA Conformant
•
New User-Friendly Webpage
•
Reduced Overall System Cost
•
Made in the USA
•
+1.818.937.0700 | 877.CAMERA.8 | www.arecontvision.com | avsales@arecontvision.com
5Megapixel
AV5245PM-D
AV5245PM-D-LG
AV5245PM-W
Wall/Ceiling Mount
(-W)
Casino Mode™ Dual Encoder
Maintains at Least 30fps H.264/MJPEG
on AV2245 Models
