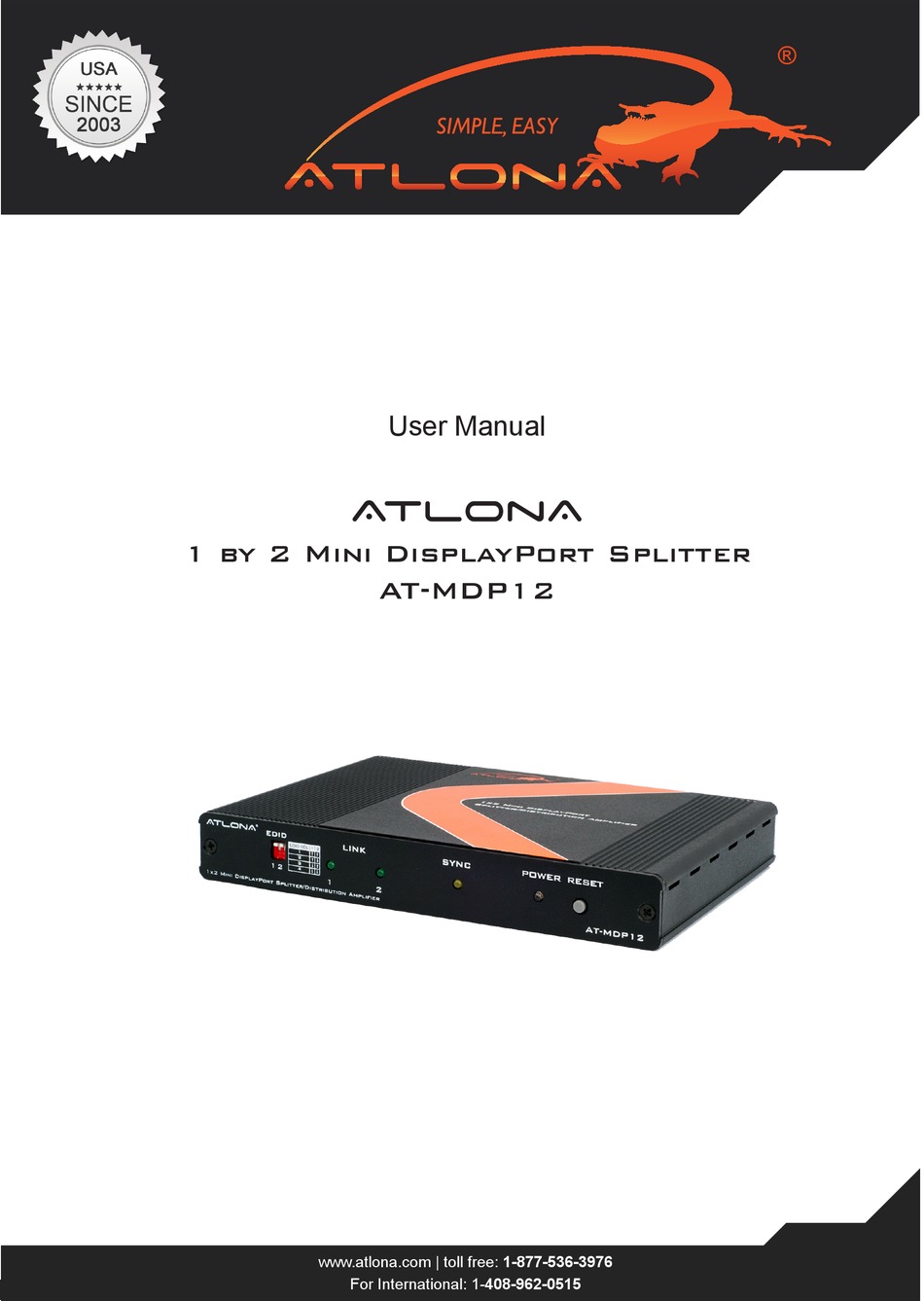

- Page 1 User Manual AtlonA 1 by 2 Mini DisplayPort Splitter AT-MDP12 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
6. Panel Descriptions ..........6.1 Front Panel ..........6.2 Rear Panel ..........7. EDID Support Format ..........8. Connection and Installation ..........9. Safety Information ..........10. Warranty ..........11. Atlona Product Registration ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction
2560 x 1600 and PCM audio up to 7.1. Audio can also be bypassed through the unit’s USB connection, the same USB is used to power the splitter. With four sets of EDID formats, the AT-MDP12 provides a fast switch between source and display and saves the EDID’s reading sink time to allow image to be... -
Page 4: Panel Descriptions
3. MINI-DP OUT 1 & 2: Connect the MDP cable or MDP to DP cable to your MDP/DP input display for displaying a single source on two screens simultaneously. 4. MINI-DP IN: Connect the MDP cable or MDP to DP cable from the MDP/DP source for signal sending. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Edid Support Format
PCM 2CH 48K PCM 2CH 44.1K PCM 2CH 32K CONNECTION AND INSTALLATION Mac Mini Mini DP to Mini DP Cable Or DP to Mini DP Cable LCD Monitor Mac 24” or 27” Monitor www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 6: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 7: 10. Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 8: 11. Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights. To register go to www.atlona.com/registration www.atlona.com | toll free: 1-877-536-3976...
