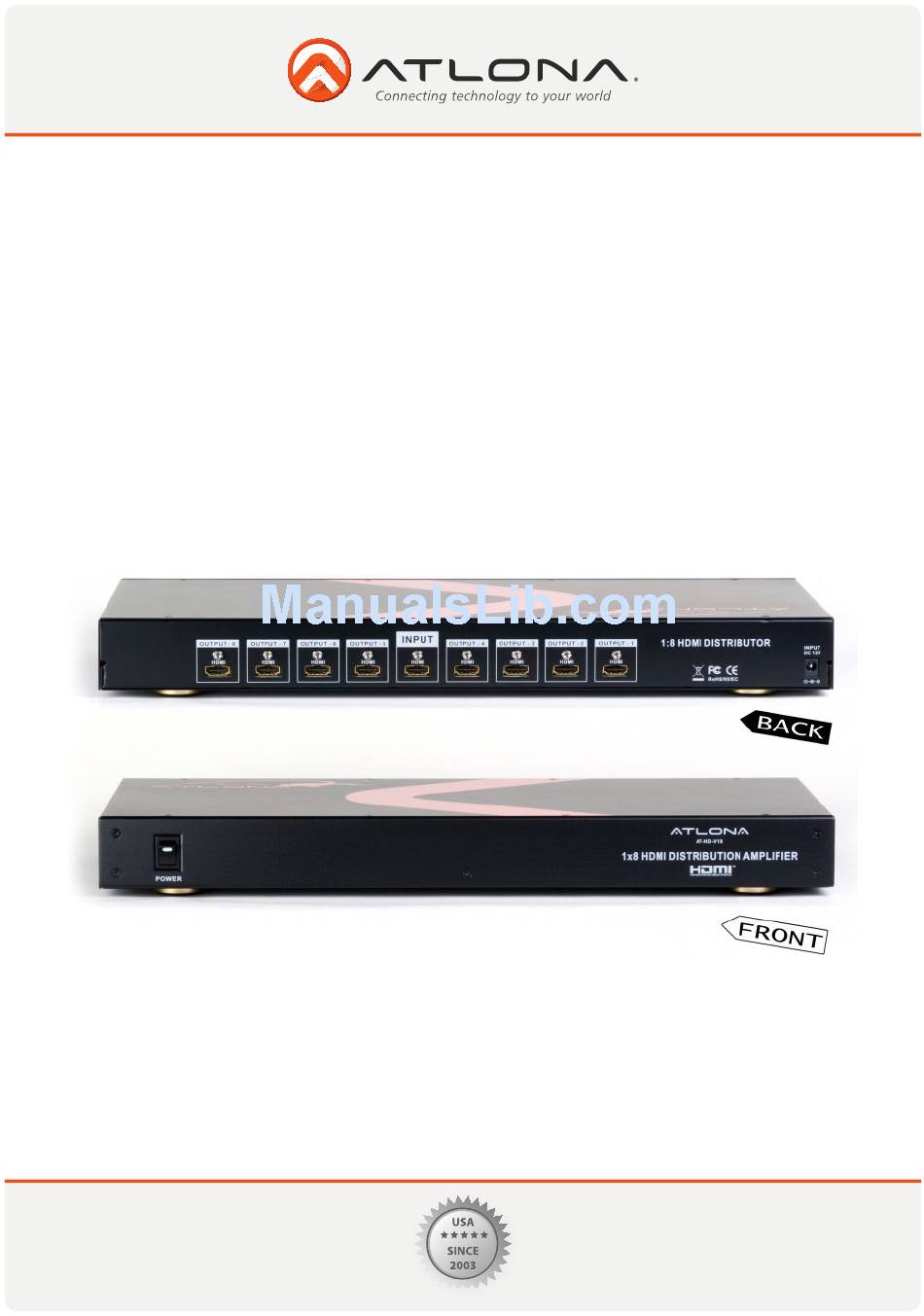

- Page 1 User Manual 1 IN 8 OUT HDMI v1.3 SPLITTER AT-HD-V18 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
..........3 5.2 Rear Panel ..........4 6. Applications ..........4 7. Operation ..........5 8. Attentions ..........5 9. Safety Information ..........6 10. Warranty ..........7 11. Atlona Product Registration ..........8 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
With 1 x HDMI Input and 8 x HDMI Outputs, the AT-HD-V18 allows one HD source device to support up to eight HDTV displays. Both HDTV displays will have the same quality image as the source. Along with being HDCP Compliant, auto- scan function software is built-in to extend HDMI signal for long distance at resolutions up to 1080p or 1920x1200 for HDMI or DVI. -
Page 4: Specifications
1. POWER SWITCH. The power switch turns the unit on and off. The LED will illuminate red to indicate that the switcher is ON 2. 19 INCH EAR MOUNT PAIR. 19 inch case Ear Mount pair Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Rear Panel
2,4. OUTPUTS: HDMI Outputs 1-8. HDMI (Female) digital video/audio connector Note: With the proper adapters, the distributor can be used with DVI digital video signals APPLICATIONS HDMI Player HDMI Displays 5-8 HDMI Displays 1-4 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Operation
5. When connections are completed, the HDTV signal will be distributed to each HDTV dis-play. 6. For the best performance, you should re-start the AT-HD-V18 splitter power to make sure the AT-HD-V18 is work- ing well in HDCP between HD player and Display devices, when the HDMI cable was disconnected after your last use. -
Page 7: Safety Information
It may also cause damage to your AT-PRO2HD88M. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 8: 10. Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 9: 11. Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
