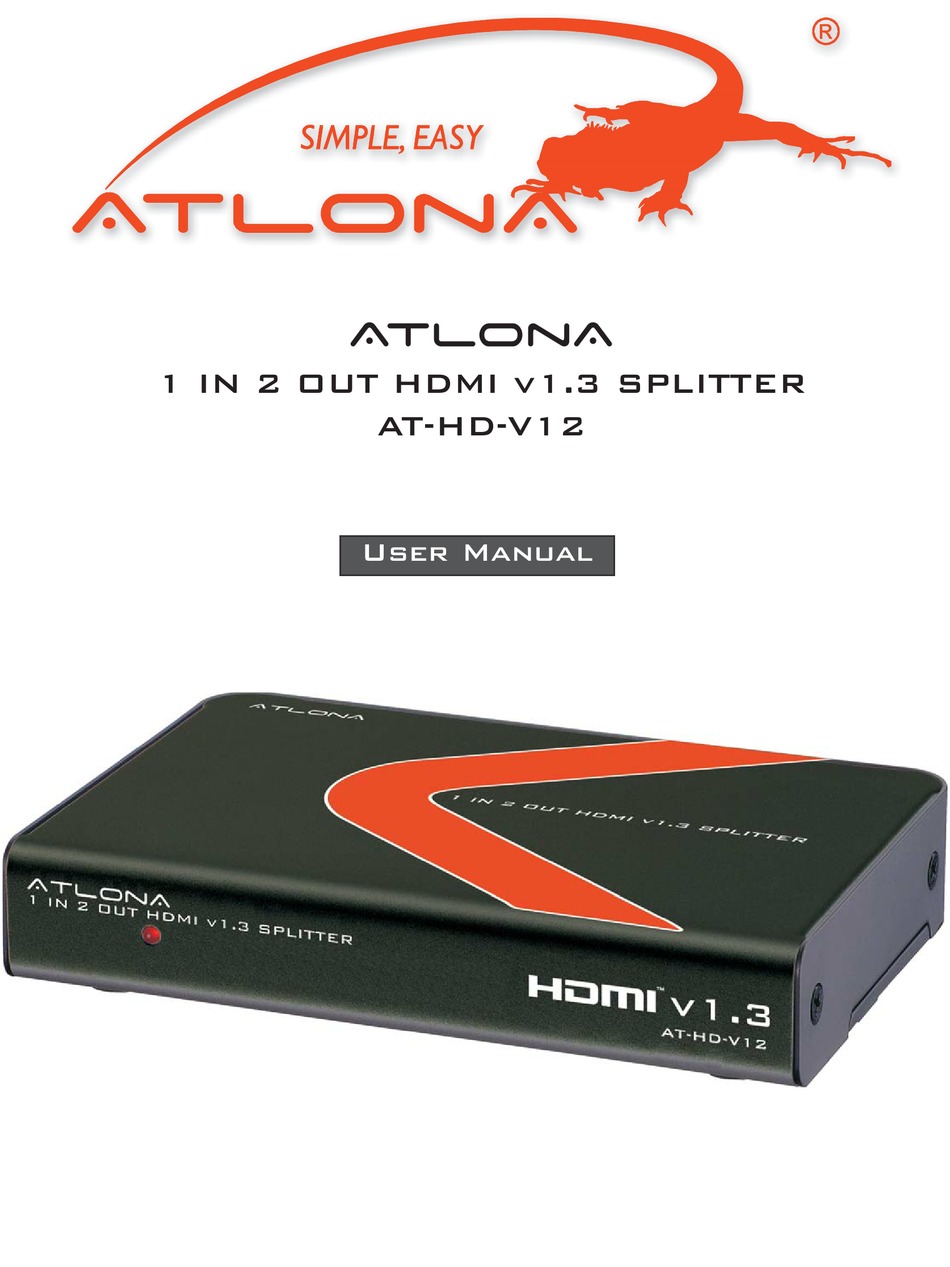

- Page 1 AtlonA 1 IN 2 OUT HDMI v1.3 SPLITTER AT-HD-V12 User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ..........2. Features and Contents ..........3. Illustration ..........4. Connection and Installation ........5. Connecting and operation ........6. Attentions ..........7. Safety ..........8. Warranty .......... -
Page 3: Introduction
Our series of HDMI Switchers and Splitters are designed to make the use of your HDTV equipment more comfortable, productive and affordable. The AT-HD-V12 allows one HD source device to support up to two HDTV displays. Both HDTV displays will have the same quality image as the source. -
Page 4: Illustration
ILLUSTRATION Front Panel Rear Panel Connection and Installation Blue-ray DVD player OUT 1 OUT 2 HDTV Display HDTV Display... -
Page 5: Connecting And Operation
Connect the AT-HD-V12 Splitter to your devices 1. Connect the HDMI cable from the HD source to the input port of AT-HD-V12 Splitter. 2. Connect the HDMI cables from your displays (monitor or projector) to the outputs of the AT- HD-V12 Splitter. -
Page 6: Safety
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 7: Warranty
WARRANTY LIMITED ONE-YEAR WARRANTY ATLONA by Lenexpo Electronics warrants only to the initial purchaser of this product for a period of one year from the date of purchase from an Authorized ATLONA Reseller, the product will be free of electrical and mechanical defects that materially affect the products operation as described in this users manual.
