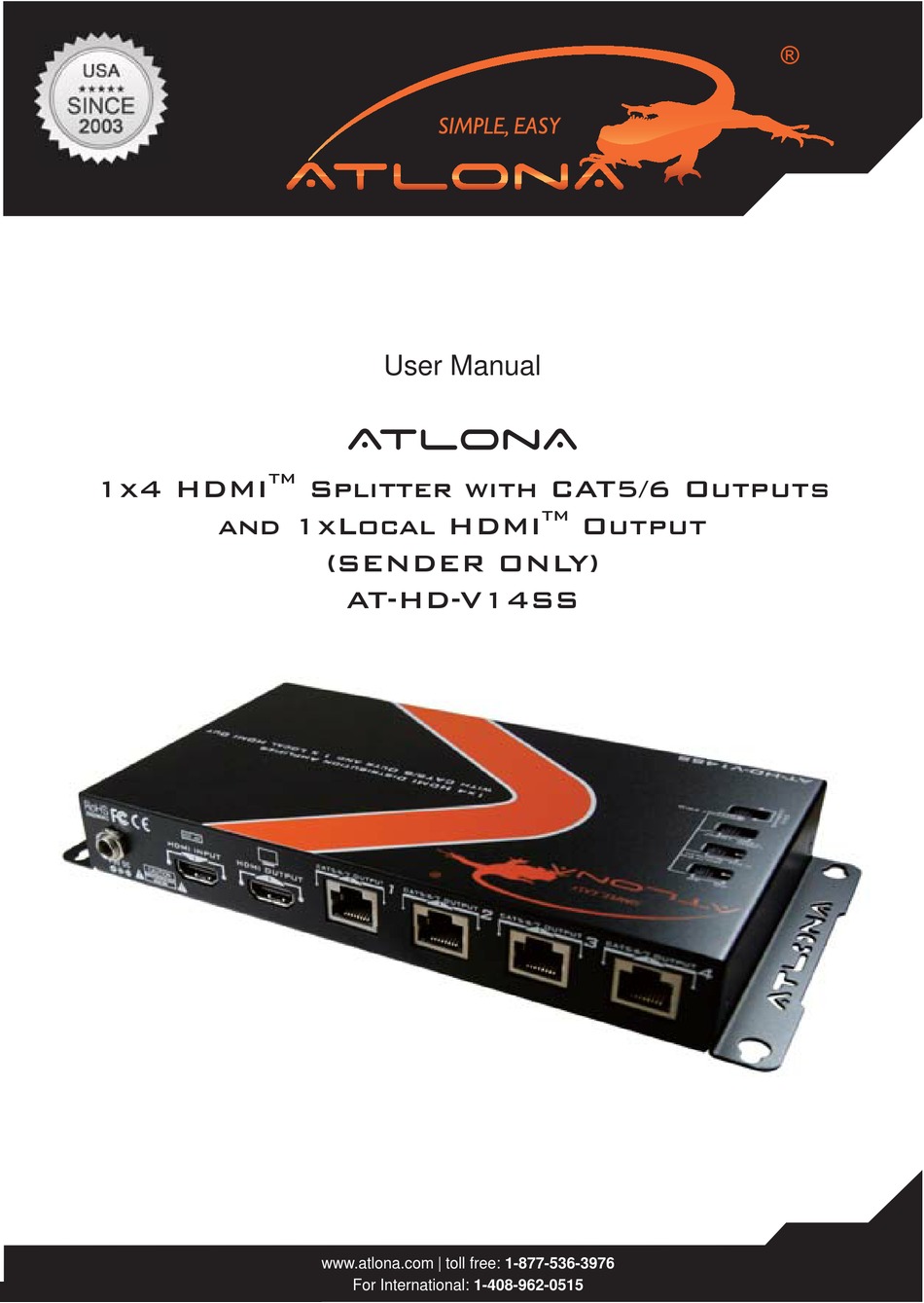

- Page 1 User Manual AtlonA 1x4 HDMI Splitter with CAT5/6 Outputs and 1xLocal HDMI Output (SENDER ONLY) AT-HD-V14SS www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
7. CONNECTION DIAGRAM ..........8. EDID LEARNING ..........9. NOTICE ..........10. PERFORMANCE GUIDE ..........11. RJ45 / CAT5 REFERENCE ..........12. ATLONA PRODUCT REGISTRATION ..........13. SAFETY INFORMATION ..........14. WARRANTY ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction
(SENDER ONLY) is the perfect solution for those who want to display a single source on 4 or more displays using a Single Twisted Pair Cat5 or Cat6 Cable. AT-HD-V14SS is capable of HDTV resolutions up to: 1080p@110ft and 1080i@200ft. -
Page 4: Package Contents
PACKAGE CONTENTS: • 1x AT-HD-V14SS unit • 1x 5V DC locking power supply unit (110/240v universal) • 1x User's manual www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Specifications
Power supply 5V DC 5V DC None Power consumption 10 Watts (max) 1 Watt (max) 0.5 Watt (max) Operation temperature 32~104°F (0~40°C) Storage temperature -4~140°F (-20~60°C) Relative humidity 20~90% RH (no condensation) www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 6: Panel Descriptions
AT-HD14SS, AT-HD19SS, AT-HD50SS or AT-HD- V14SS CAT5/6/7 OUTPUT 1 - 4: Link to each HDMI display via a CAT5/6 cable with a Receiver Unit AT-HDRS or AT- HD15SRS www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 7: Top Panel
EDID LEARNING vs. Default EDID: When the DIP switch is set to Default EDID, users can adjust desired EDID setting for the default EDID profile. When the DIP switch is set to EDID LEARNING, the AT-HD-V14SS will learn the EDID from the device connected to the HDMI output port. -
Page 8: Installation
OUTPUT on each Receiver Unit with a HDMI cable. 5. Plug in the 5V DC power supply units to the locking power jacks on the Receiver Units and the AT-HD-V14SS. 6. Connect one HDMI display or cascading device to the HDMI OUTPUT port with a HDMI cable. -
Page 9: Edid Learning
HDMI output port that needs to provide the EDID information for the AT-HD-V14SS to learn from. 2. Dial the DIP switch from Default EDID to EDID LEARNING and stay at the Learn EDID position. -
Page 10: Performance Guide
fi rmware updates. At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. -
Page 11: Safety Information
It may equipment. also cause damage to your AT-HD-V14SS. Opening the product will void the warranty. Operate this product using only the included external power supply. Use of other power Do not attempt to service the unit. -
Page 12: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer's receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
