SECTION 2
•
LOGIC UNIT AND 2F UNIT
UHF band pass filter
(FI201: EFCH445MWN)
UHF RF amplifier*
(Q201: 2SC4226)
AF power amplifier
(IC151: 2SC5226)
VHF RF amplifier*
(Q51: 2SC5226)
1st IF filter
(FI401: FL244)
2nd IF filter
(FI101: CFWM450E)
+3V regulater
(IC2: S-81335HG-K)
* Located under side of these points
•
1F UNIT
PA board
Power amplifier
(Q402: 2SK3075)
Drive amplifier
(Q401: 2SK3074)

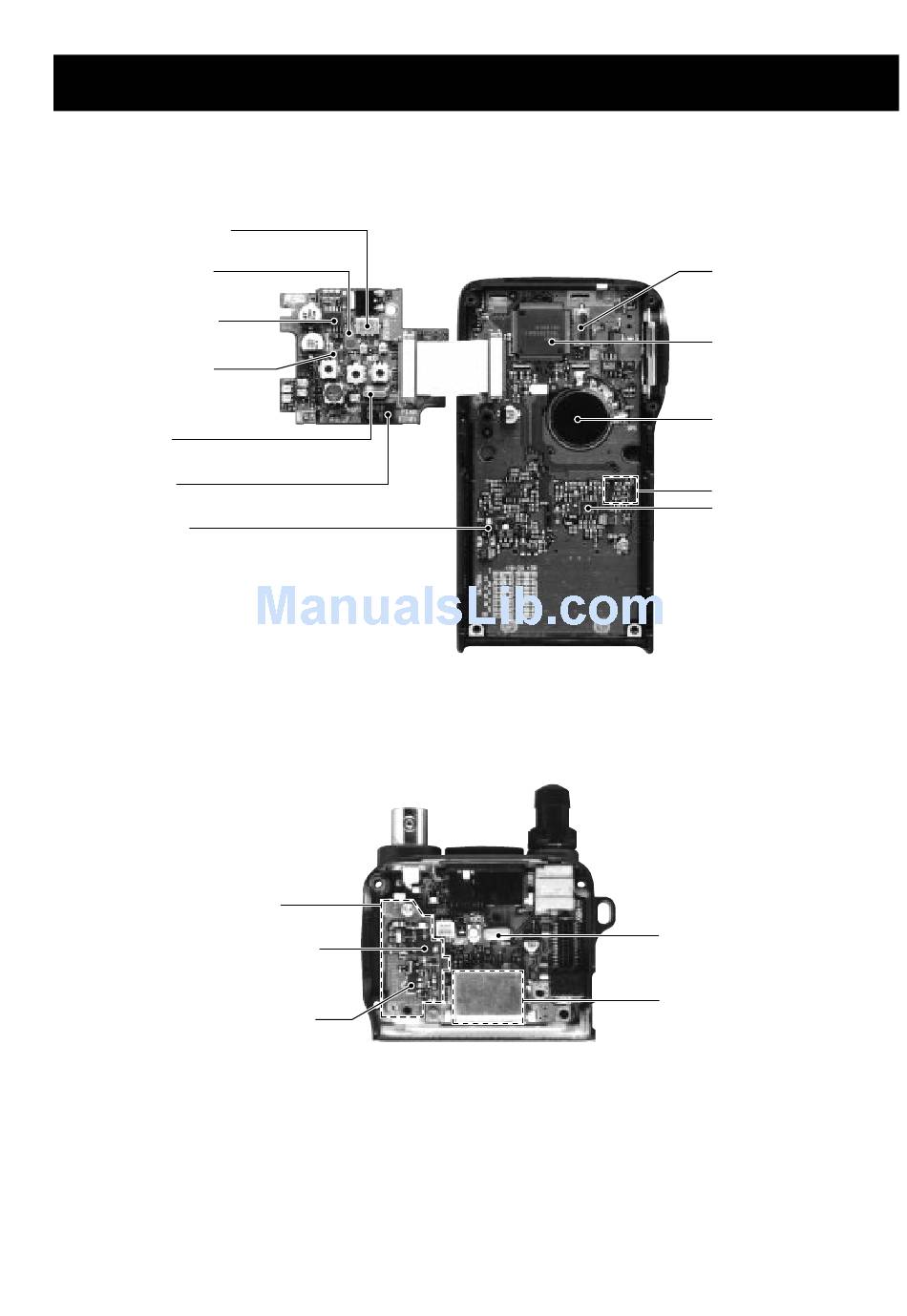

INSIDE VIEWS
2F UNIT LOGIC UNIT
2 - 1
CPU system clock
(X1: CR534 5.03MHz)
CPU system clock
(IC1: M38267M8L-165GP)
Speaker
Initial matrix
Microphone amplifier/lpf
(IC2: BA4510F)
CPU system clock
(IC1: M38267M8L-165GP)
DUAL VCO board
