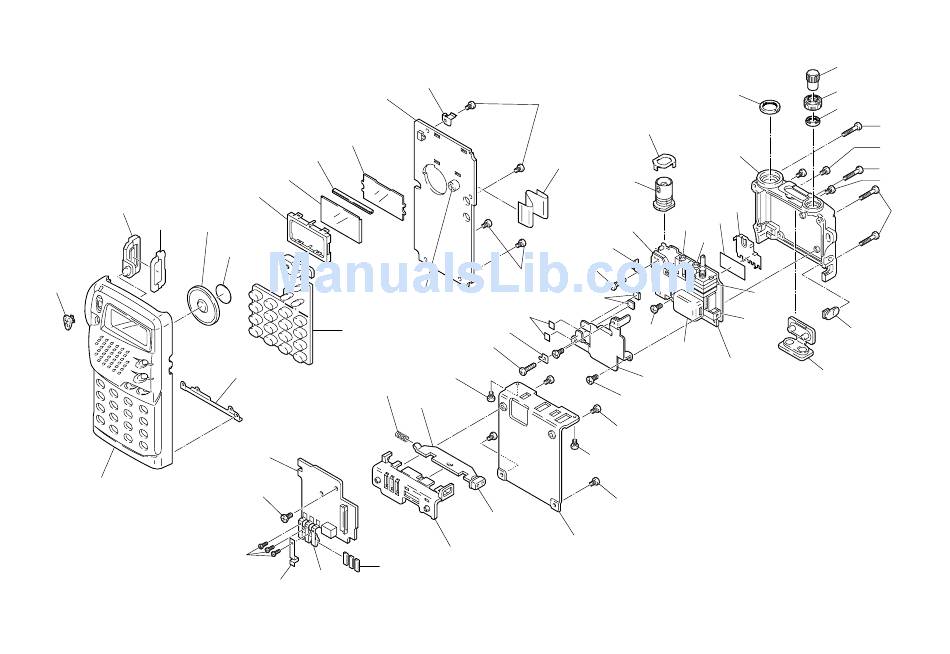

Icom IC-T7H Service Manual page 24

MP3 (L)
MP9 (L)
SP1 (L)
MP12 (L)
MP15 (L)
MP13 (L)
MP23 (C)
UNIT abbreviation (C): CHASSIS PARTS, (L): LOGIC UNIT, (PA): PA UNIT, (D): DIAL VCO UNIT, (1F): 1F UNIT
LOGIC UNIT
MP1 (L)
EP2 (L)
DS4 (L)
MP5 (L)
MC1 (L)
MP2 (L)
MP11 (L)
MP4 (C)
MP5 (C)
2F UNIT
MP16 (C)
MP10 (C)
MP7 (C)
MP34 (C)
7 - 2
MP16 (L)
MP10 (L)
W1 (L)
MP28 (C)
MP20 (C)
MP10 (L)
MP30 (C)
MP31 (C)
MP35 (C)
MP20 (C)
MP18 (C)
MP18 (C)
MP6 (C)
MP11 (C)
MP2 (C)
J1 (C)
MP33 (C)
MP1 (C)
J1 (C)
MP1 (1F)
MP2 (1F)
J902 (1F)
MP401 (PA)
J901 (1F)
S1 (1F)
J903 (1F)
MP15 (C)
MP301 (D)
1F UNIT
MP3 (C)
MP15 (C)
MP14 (C)
MP17 (C)
MP8 (C)
MP9 (C)
MP21 (C)
MP13 (C)
MP19 (C)
MP13 (C)
MP24 (C)
MP13 (C)
MP12 (C)
MP29 (C)
