Ultrak DuraCam Technical Specifications

Combine the high performance and dependability of our miniature cameras with the durability and strength of our sleek
new mini rugged housings, and you have Ultrak's new DuraCam. The DuraCam mini ruggedized housings combine the
most advanced camera technology with the latest impact resistance materials to deliver the best value and protection
for your most challenging applications. Whether you are protecting an apartment complex, shopping mall, airport or a
maximum-security correction facility, DuraCam has the solution to fit your most demanding applications indoors or out.

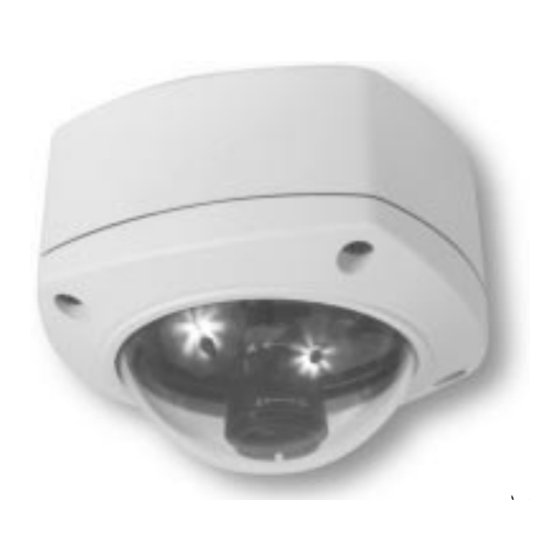

Each DuraCam VK series mini ruggedized dome housing utilizes a 1/3" high performance camera and comes standard
with a 3.6mm fixed mini lens. Each DuraCam is covered with an optically clear 4" impact resistant dome shell and liner.
Lenses are available in 2.9mm, 8mm, 12mm focal length options.
Installation is quick and easy with all the tamper proof mounting hardware included. Each DuraCam comes standard
with 24 VAC operation and line lock. No job is too big or small for the uncompromising performance of the DuraCam
impact resistance dome.
• Durable, impact and vandal resistant
• Puncture proof
• High resolution color (470TVL)
• 24 VAC operation with line lock
• Standard 3.6mm
• Optional lens, 2.9mm, 8mm, 12mm
• Varifocal lens options
• Indoor/outdoor (IP66 rated)
VK SERIES MINI RUGGEDIZED DOME CAMERA ENCLOSURE
• DC auto iris varifocal option
• Simple installation
• 1/2" and 3/4" threaded NPT opening on top and side
(surface dome)
• Flush or Surface mount dome chassis
• Manual tilt adjustment
• Tamper-resistant hardware included
• Clear dome with liner
17/5
DuraCam
