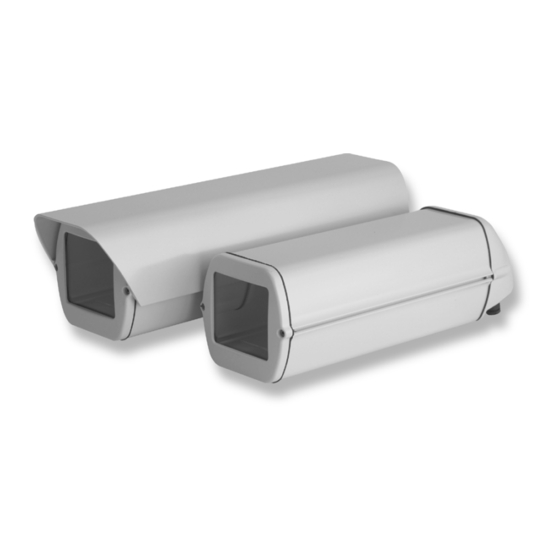

- Page 1 HEB Series 10- AND 12-INCH CAMERA ENCLOSURES WITH OPTIONAL SUNSHIELD, HEATER AND BLOWER KITS AND MOUNTING BRACKET INSTALLATION INSTRUCTIONS Worldwide Support Center 1301 Waters Ridge Drive Lewisville, TX 75057 (800) 796-2288 (972) 353-6400 FAX (972) 353-6670...
- Page 2 (800) 796-2288 ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY BE REPRODUCED BY ANY MEANS WITHOUT WRITTEN PERMISSION FROM ULTRAK. THE INFORMATION IN THIS PUBLICATION IS BELIEVED TO BE ACCURATE IN ALL RESPECTS. HOWEVER, ULTRAK CANNOT ASSUME RESPONSIBILITY FOR ANY CONSEQUENCES RESULTING FROM THE USE THEREOF.
-
Page 3: Table Of Contents
SECTION 1. HEB CAMERA HOUSING SERIES INTRODUCTION PURPOSE ..................1 FEATURES...................1 SECTION 2. HOUSING INSTALLATION INSTRUCTIONS HEB10-BK BLOWER KIT INSTALLATION ........2 HEB10-HK/HEB12-HK HEATER KIT INSTALLATION....4 HEB10-BK BLOWER KIT WITH HEB10-HK/HEB12-HK HEATER KIT INSTALLATION ..........6 CAMERA MOUNTING FOR HEB SERIES HOUSINGS ....8 HEB10-SS/HEB12-SS SUNSHIELD INSTALLATION....10... -
Page 4: Section 1. Heb Camera Housing Series Introduction
SECTION 1 HEB CAMERA HOUSING SERIES INTRODUCTION PURPOSE The HEB10 and HEB12 camera housing series are stylishly and functionally designed enclosures for 1/3” and 1/2” cameras with fixed focal length or standard zoom lenses. This manual describes how to assemble the housing and its optional components, affix the camera, and mount the assembly to a suitable surface. -
Page 5: Section 2. Housing Installation Instructions
HEB10, HEB10-01, HEB12 and HEB12-01 camera housing. The HEB10-BK is compatible in both the HEB10 and HEB12 series. If you are also installing the heater, please skip to page 5 for comprehensive instructions. The blower kit is available in a preassembled package with a housing, heater kit, and sunshield under model HEB10-03 or HEB12-03. - Page 6 6. Remove the rear of the housing from the base by unscrewing the two Phillips panhead screws. (See Figure 1) FIGURE 2 7. Use these screws to replace the rear with the blower unit, being careful not to damage the wiring to the attached circuit board.
-
Page 7: Heb10-Hk/Heb12-Hk Heater Kit Installation
While this heater kit is sold as an add-on component for the HEB10, HEB10-01, HEB12 and HEB12-01, it is also available in a preassembled package. The HEB10-02 and HEB12-02 are 10- and 12-inch camera housings respectively with an installed sunshield and heater. - Page 8 5. Remove the standard silver mounting plate by unscrewing the two flathead screws located at the rear. Then replace this unit with the optional mounting plate with built-in heater. Make sure that the heater plate is secured to the shelf that extends from the rear of the housing unit.
-
Page 9: Heb10-Bk Blower Kit With Heb10-Hk/Heb12-Hk Heater Kit Installation
HEATER KIT INSTALLATION This section contains instructions for installing the heater kit and blower kit for HEB10, HEB10-01, HEB12 and HEB12-01 camera housings. While these kits are sold as add-on components, they are also available in a preassembled package. The HEB10-03 and HEB12-03 are 10- and 12-inch camera housings respectively with an installed sunshield, heater and blower. - Page 10 7. Use these screws to replace the rear with the blower unit, being careful not to damage the wiring to the attached circuit board. (See Figure 8) FIGURE 8 8. Attach the mounting plate with heater unit to the shelf extending from the rear of the housing.
-
Page 11: Camera Mounting For Heb Series Housings
CAMERA MOUNTING FOR HEB SERIES HOUSINGS This section contains comprehensive instructions for installing a camera into any of the HEB series housings. If you are installing optional equipment, such as a heater/blower kit, please consult the previous section in this manual that is appropriate and refer to this section when instructed to do so. - Page 12 FIGURE 12 5. To install your camera on the mounting plate with heater, use the supplied 1/4” flathead screws and nylon washer. (See Figure 11) NOTE: If you are using a camera with a zoom lens, it may be necessary to use one or both of the provided black elevation plates to keep the camera stable.
-
Page 13: Heb10-Ss/Heb12-Ss Sunshield Installation
This section contains instructions for installing the sunshield for the HEB series housing. While this is sold as an add-on component for the HEB10 and HEB12, it is also available in a preassembled package. The HEB10-01 and HEB12-01 include a housing and a sunshield. - Page 14 FIGURE 15 1. Using fasteners of appropriate size and type, attach the bracket to the wall surface in a position that will allow for viewing of the selected area. (See Figure 15) 2. Locate two nuts that freely slide along the channel. Position the nuts approximately 2-3/8”...
-
Page 15: Section 3. Specifications
Slotted Camera Sled Cable Entry 2 Compression Fittings Construction Extruded and Die-cast Aluminum Finish Almond Color Epoxy Powder Coating Options: HEB10-SS Snap-on Sunshield for HEB10 HEB12-SS Snap-on Sunshield for HEB12 HEB10-HK Heater Kit for HEB10 HEB12-HK Heater Kit for HEB12... -
Page 16: Heb10-Bk Blower Specifications
C +/- 3 F < 68 F +/- 5 Dimensions (WxHxD): 5.5 x 5.0 x 3.7 in (139 x 128 x 97 mm) HEB10-HK & HEB12-HK HEATER SPECIFICATIONS Power Supply 24Vac Power Consumption Heater ON C < 14 C +/- 3 F <... -
Page 17: Ul-Wbm & Ul-Wb+Bj Wall Mount Specifications
UL-WBM & UL-WB+BJ WALL MOUNT SPECIFICATIONS Dimensions (WxHxL): UL-WBM 2.8 x 4.5 x 8.9 in. (70 x 115 x 226 mm) UL-WB+BJ 2.8 x 4.5 x 11.2 in. (70 x 115 x 284 mm) Weight: UL-WBM 1.1 lbs. (0.5 kg) UL-WB+BJ 1.4 lbs. - Page 18 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 19 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 20 FORM 1047, REV. 11/96...
