1/3" CCD BLACK-
AND-WHITE
OBSERVATION
CAMERA
INSTALLATION
INSTRUCTIONS
Ultrak Worldwide Support Center & Eastern Regional Office:
1301 Waters Ridge Drive Lewisville, TX 75057
(800) 796-2288 (972) 353-6400 FAX (972) 353-6670
Ultrak Western Regional Office:
6252 West 91st Avenue Westminster, CO 80030
(800) 846-8884 (303) 428-9480 FAX (303) 429-6609
KC-3P
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ultrak KC-3P
Summary of Contents for Ultrak KC-3P
- Page 1 AND-WHITE OBSERVATION CAMERA INSTALLATION INSTRUCTIONS Ultrak Worldwide Support Center & Eastern Regional Office: 1301 Waters Ridge Drive Lewisville, TX 75057 (800) 796-2288 (972) 353-6400 FAX (972) 353-6670 Ultrak Western Regional Office: 6252 West 91st Avenue Westminster, CO 80030 (800) 846-8884 (303) 428-9480 FAX (303) 429-6609...
- Page 2 (303) 429-6609 ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY BE REPRODUCED BY ANY MEANS WITHOUT WRITTEN PERMISSION FROM ULTRAK. THE INFORMATION IN THIS PUBLICATION IS BELIEVED TO BE ACCURATE IN ALL RESPECTS. HOWEVER, ULTRAK CANNOT ASSUME RESPONSIBILITY FOR ANY CONSEQUENCES RESULTING FROM THE USE THEREOF.
- Page 3 AND COMPLYING WITH ALL FEDERAL, STATE, AND LOCAL LAWS AND STATUTES CONCERNING THE MONITORING AND RECORDING OF VIDEO AND AUDIO SIGNALS. ULTRAK SHALL NOT BE HELD RESPONSIBLE FOR THE USE OF THIS PRODUCT IN VIOLATION OF CURRENT LAWS AND STATUTES.
-
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS 1. READ INSTRUCTIONS - Read all safety and operating instructions before operating this product. 2. RETAIN INSTRUCTIONS - Retain the safety and operating instructions for future reference. 3. CLEANING - Unplug all equipment before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. - Page 5 10. OVERLOADING - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 11. FOREIGN OBJECTS - Never insert objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.
-
Page 7: Table Of Contents
TABLE OF CONTENTS PURPOSE..................1 SYSTEM INSTALLATION ............1 MANUAL IRIS LENS ADJUSTMENT........... 3 VIDEO TYPE AUTO IRIS LENS INSTALLATION AND ADJUSTMENT ................4 DC IRIS LENS INSTALLATION AND ADJUSTMENT ....5 BACK FOCUS ADJUSTMENT............. 7 ZOOM LENS BACK FOCUS ADJUSTMENT ......8 AUDIO DISABLE ADJUSTMENT .......... - Page 8 THIS PAGE INTENTIONALLY LEFT BLANK viii...
-
Page 9: Purpose

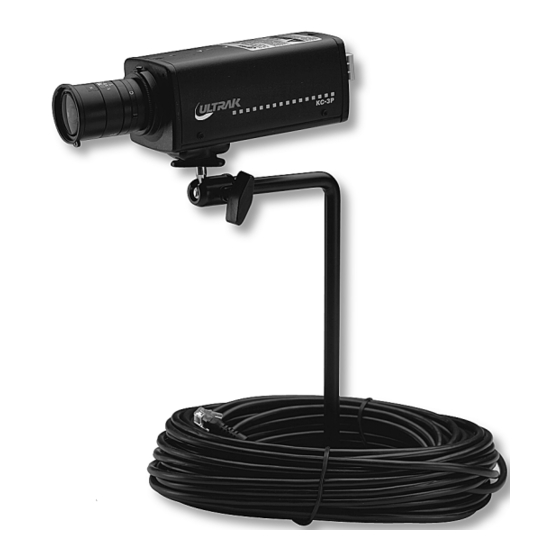

• Excellent picture quality • Two-year warranty This manual describes how to set up and operate the KC-3P Camera. SYSTEM INSTALLATION Installation of the KC-3P Camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. - Page 10 FIGURE 1. KC-3P CAMERA...
-
Page 11: Manual Iris Lens Adjustment
C. The KC-3P Observation Camera has a camera mounting block attached to the bottom of the camera housing. The ¼”- 20 UNC threaded mounting hole attaches to the bolt on the camera stand or mounting bracket. -
Page 12: Video Type Auto Iris Lens Installation And Adjustment
VIDEO TYPE AUTO IRIS LENS INSTALLATION AND ADJUSTMENT The KC-3P Observation Camera supports video-type auto-iris lenses to adjust for changing light levels. Perform the following steps to install and adjust a video-type auto iris lens. -
Page 13: Dc Iris Lens Installation And Adjustment
3. Reset the level control as noted in step E. DC IRIS LENS INSTALLATION AND ADJUSTMENT The KC-3P Camera supports dc iris lenses. Perform the following steps to install and adjust a dc-type auto iris lens. A. Thread the dc iris lens to the lens mount on the front of the camera. - Page 14 C. Plug the connector into the DC IRIS jack on the back of the camera. The connector is polarized and can only be inserted into the jack one way. D. The EI switch should be in the OFF position. E. Apply power to the KC-3P Camera.
-
Page 15: Back Focus Adjustment
F. Adjust the dc Iris lens for an optimum picture. Use the IRIS LEVEL control on the back of the camera for optimum picture quality. BACK FOCUS ADJUSTMENT For best results, perform back focus adjustments at night or while using a #6 or #8 welder’s glass in front of the lens. The focus of the camera will change slightly if the camera iris was adjusted on a light scene, then changes to a dark scene. -
Page 16: Zoom Lens Back Focus Adjustment
A. Choose an object at the farthest range that you wish to look at with a zoom lens. B. Make sure the iris of the lens is wide open. (Do this by adjusting the camera at night or use a welders glass in front of the lens.) C. - Page 17 E. Remove the audio jumper. F. Replace the jumper on the center pin and the OFF pin, see diagram. Skip to step I. AUDIO Move the jumper from the ON and center position to the OFF and center position to disable the audio from the camera to the observation monitor.
- Page 18 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 19: Troubleshooting
SECTION 2 TROUBLESHOOTING AND MAINTENANCE TROUBLESHOOTING If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problem Possible Solution No Video... -
Page 20: Specifications
SPECIFICATIONS Dimensions (WxHxD) 2.3 x 2.0 x 4.8 in (58 x 52 x 123 mm) Power supply 24V ac +/- 10%, 60 Hz +/- 1% Power consumption 3.0W (3.5W max. with auto-iris) Image pickup element 1/3 inch CCD image area sensor (4.9mm H x 3.7mm V) Scanning system 2:1 interlace...
