Ultrak KC5520CN Technical Specifications

Ultrak KC5520CN Technical Specifications

1/3" ccd, high-performance dsp color cameras

Advertisement

Quick Links

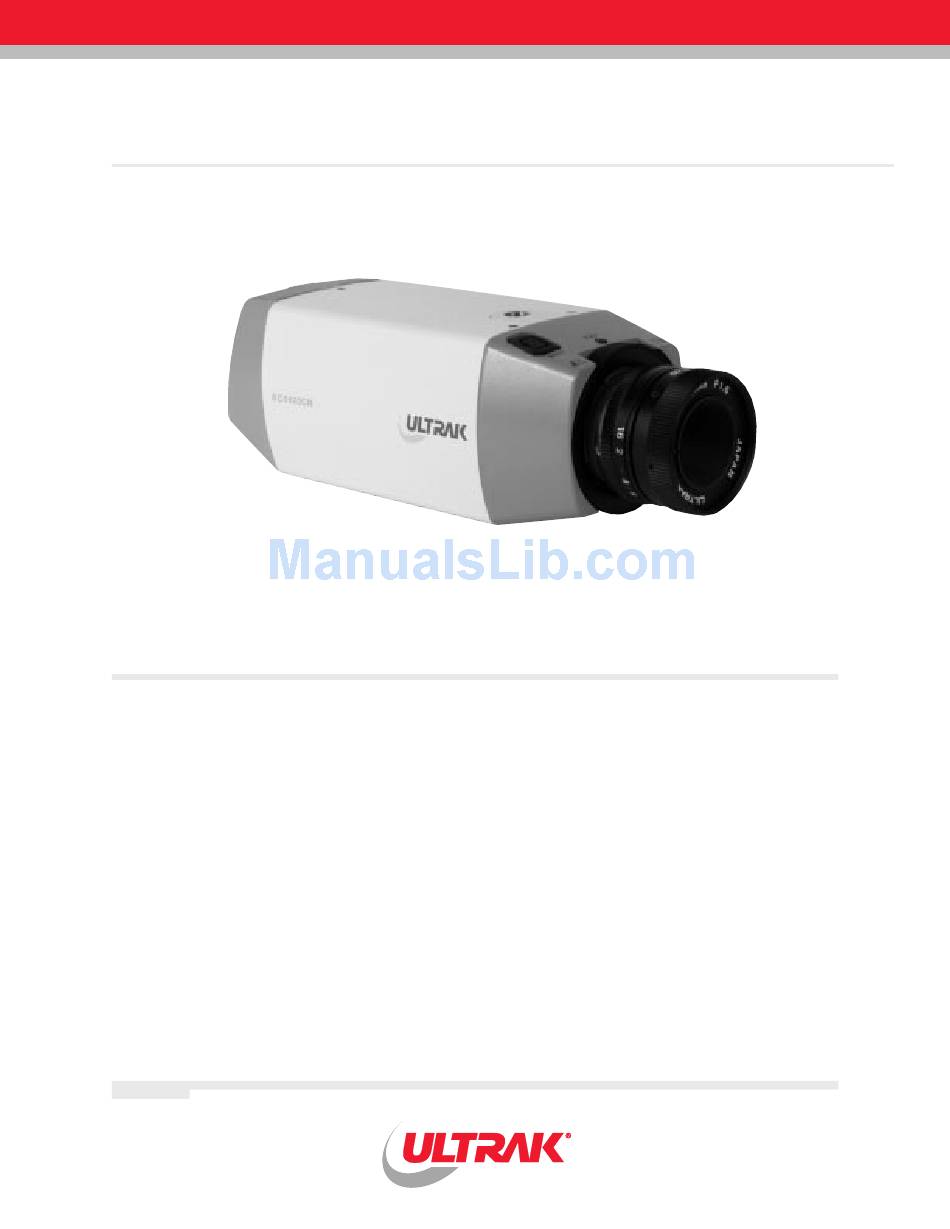

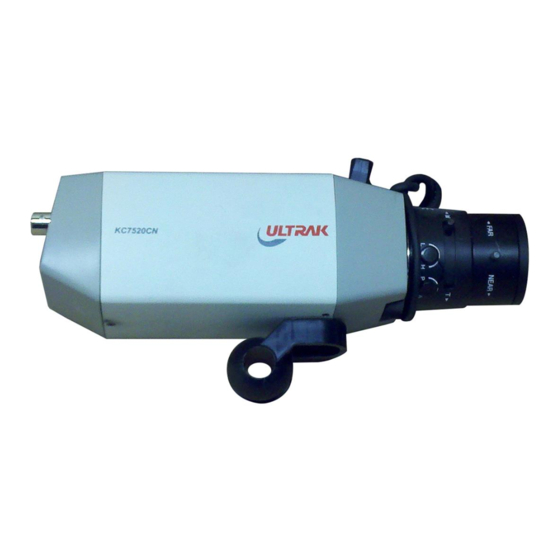

KC5520CN/KC7520CN
The KC5520CN and KC7520CN are 1/3" CCD high-performance color cameras designed for video surveillance systems. These
are part of Ultrak's line of professional cameras utilizing advanced DSP CCD technology. These high-performance cameras
produces outstanding color images for the most diversified color applications.
The KC5520CN with 330 lines of resolution and a sensitivity of 1.25 lux, and the KC7520CN with 470 lines of resolution, a
sensitivity of 1.6 lux and an advanced feature set such as BLC, AGC auto/manual white balance, auto/manual shutter
speeds and Gamma control, these cameras allow the CCTV professional to ensure the highest quality image and performance
for his application. Physical characteristics such as the C/CS/back-focus ring and push-button terminal strip for power make
the installation easier.
Ultrak
®
professional cameras provide what security professionals are looking for: ease of use, exceptional quality, high per-
formance and competitive pricing.
• High-performance 1/3" advanced DSP color CCD technology
• 330 lines of resolution - KC5520CN
• 470 lines of resolution - KC7520CN
• KC5520CN 1.25 lux @ F1.2 sensitivity, KC7520CN 1.6 lux
@ F1.2 sensitivity,
• C/CS, back-focus ring for easy adjustment
• Auto electronic shutter & manual electronic shutter
1/3" CCD, HIGH-PERFORMANCE DSP COLOR CAMERAS
KC5520CN / KC7520CN
modes from 1/60 to 1/100,000
• Accepts video or DC lenses with dip switch select
• Quick connect for video or DC lens with 4-pin connector
• BLC, Gamma, AGC adjustments
• 24VAC power operation
• Auto & manual white balance modes
• Limited 3-year warranty
1/9
(Lens not included)

Advertisement

loading
Need help?

Need help?

Do you have a question about the KC5520CN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ultrak KC5520CN

  • Page 1 The KC5520CN with 330 lines of resolution and a sensitivity of 1.25 lux, and the KC7520CN with 470 lines of resolution, a sensitivity of 1.6 lux and an advanced feature set such as BLC, AGC auto/manual white balance, auto/manual shutter speeds and Gamma control, these cameras allow the CCTV professional to ensure the highest quality image and performance for his application.
  • Page 2: Technical Specifications

    Conversion: 1" = 25.4mm Measurement conversions are approximate Ultrak Worldwide Support Center: 1301 Waters Ridge Drive Lewisville, TX 75057 (800) 796-2288 (972) 353-6500 Fax (972) 353-6670 REV. 05/01 ©Ultrak ® is a registered trademark of Ultrak, Inc. 2001. FORM 3613 www.ultrak.com 1/10...
