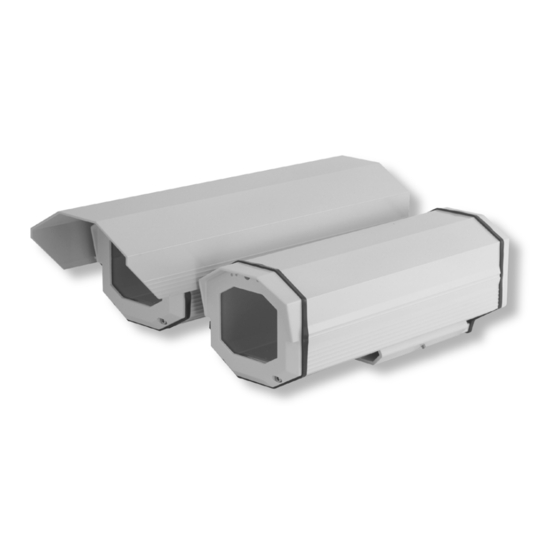

- Page 1 HEG Series 14-INCH CAMERA ENCLOSURE WITH OPTIONAL SUNSHIELD, HEATER AND BLOWER KITS AND MOUNTING BRACKET INSTALLATION INSTRUCTIONS Worldwide Support Center 1301 Waters Ridge Drive Lewisville, TX 75057 (800) 796-2288 (972) 353-6400 FAX (972) 353-6670...
- Page 2 LEWISVILLE, TX 75057 (800) 796-2288 ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY BE REPRODUCED BY ANY MEANS WITHOUT WRITTEN PERMISSION FROM ULTRAK. THE INFORMATION IN THIS PUBLICATION IS BELIEVED TO BE ACCURATE IN ALL RESPECTS. HOWEVER, ULTRAK CANNOT ASSUME RESPONSIBILITY FOR ANY CONSEQUENCES RESULTING FROM THE USE THEREOF.
-
Page 3: Table Of Contents
PURPOSE ..................1 FEATURES...................1 SECTION 2. HOUSING INSTALLATION INSTRUCTIONS HEG14-BK BLOWER KIT INSTALLATION........2 HEG14-HK HEATER KIT INSTALLATION........4 HEG14-BK BLOWER KIT WITH HEG14-HK HEATER KIT INSTALLATION ..........6 CAMERA MOUNTING FOR HEG SERIES HOUSINGS....8 HEG14-SS SUNSHIELD INSTALLATION........10 UL-WB+BJ & UL-WBM WALL BRACKET MOUNTING.....11 SECTION 3. -
Page 4: Section 1. Heg Camera Housing Series Introduction
SECTION 1 HEG CAMERA HOUSING SERIES INTRODUCTION PURPOSE The HEG14 camera housing series includes stylishly and functionally designed enclosures for 1/3”, 1/2” and 2/3” cameras with fixed focal length or large zoom lenses. This manual describes how to assemble the housing and its optional components, affix the camera, and mount the assembly to a suitable surface. -
Page 5: Section 2. Housing Installation Instructions
HEG14-BK BLOWER KIT INSTALLATION (without heater) This section contains comprehensive instructions for installing the blower kit into the HEG14 and HEG14-01 camera housing. If you are also installing the heater, please skip to page 6 for comprehensive instructions. The blower kit is available in a preassembled package with a housing, heater kit, and sunshield under model HEG14-03. - Page 6 5. Remove the standard silver camera mounting plate by unscrewing the two Phillips panhead screws located at the rear. Retain the screws. (See Figure 1) 6. Remove the rear of the housing from the base by unscrewing the two Phillips flathead screws. (See Figure 1) FIGURE 2 7.
-
Page 7: Heg14-Hk Heater Kit Installation
Mounting on page 11. HEG14-HK HEATER KIT INSTALLATION (without blower) This section contains instructions for installing the heater kit for the HEG14 and HEG14-01 camera housings. If you are also installing the blower unit, please skip to page 6 for comprehensive instructions. - Page 8 4. Locate the following parts that are taped to or enclosed in the housing: two black plastic plates, a nylon washer, and three hexagonal screws of varying lengths for camera mounting; two hexagonal screws with two metal washers; and two Phillips panhead screws with nylon washers and rubber gaskets.
-
Page 9: Heg14-Bk Blower Kit With Heg14-Hk Heater Kit Installation
This section contains instructions for installing the heater kit and blower kit for HEG14 and HEG14-01 camera housings. While these kits are sold as add-on components, they are also available in a preassembled package. The HEG14-03 and is a 14-inch camera housing with an installed sunshield, heater and blower. - Page 10 6. Remove the rear of the housing from the base by unscrewing the two Phillips flathead screws. (See Figure 7) Use these screws to replace the rear with the blower unit, being careful not to damage the wiring to FIGURE 8 the attached circuit board.
-
Page 11: Camera Mounting For Heg Series Housings
CAMERA MOUNTING FOR HEG SERIES HOUSINGS This section contains comprehensive instructions for installing a camera into any of the HEG series housings. If you are installing optional equipment, such as a heater/blower kit, please consult the previous section in this manual that is appropriate and refer to this section when instructed to do so. - Page 12 FIGURE 11 FIGURE 12 5. To install your camera on the mounting plate with heater, use the supplied 1/4” flathead screws and nylon washer. (See Figure 11) NOTE: If you are using a camera with a zoom lens, it may be necessary to use one or both of the provided black elevation plates to keep the camera stable.
-
Page 13: Heg14-Ss Sunshield Installation
This section contains instructions for installing the sunshield for the HEG series housing. While this is sold as an add-on component for the HEG14, it is also available in a preassembled package. The HEG14-01 includes a housing and a sunshield. -
Page 14: Ul-Wb+Bj & Ul-Wbm Wall Bracket Mounting
UL-WB+BJ & UL-WBM WALL BRACKET MOUNTING This section contains information for mounting the recommended UL-WB+BJ wall bracket, which is sold separately from HEG series camera housings (The UL-WBM is also compatible for most camera angles). Be sure that the camera and the optional components have been installed into the housing properly before proceeding to mount the assembly. -
Page 15: Heg Housing Specifications
Cable Entry 2 Compression Fittings Construction Extruded and Die-cast Aluminum Finish Almond Color Epoxy Powder Coating Options: HEG14-SS Snap-on Sunshield for HEG14 HEG14-HK Heater Kit for HEG14 HEG14-BK Blower Kit for HEG14 Environment Indoor/Outdoor Recommended Mounts UL-WB+BJ & UL-WBM Operating Temperature... -
Page 16: Heg14-Hk Heater Specifications
HEG14-HK HEATER SPECIFICATIONS Power Requirements 24Vac Power Consumption Heater ON C < 14 C +/- 3 F < 39 F +/- 5 Heater OFF C > 20 C +/- 3 F > 68 F +/- 5 HEG14-SS SUNSHIELD SPECIFICATIONS Dimensions (WxHxL): 6.9 x 3.9 x 19.9 in.
