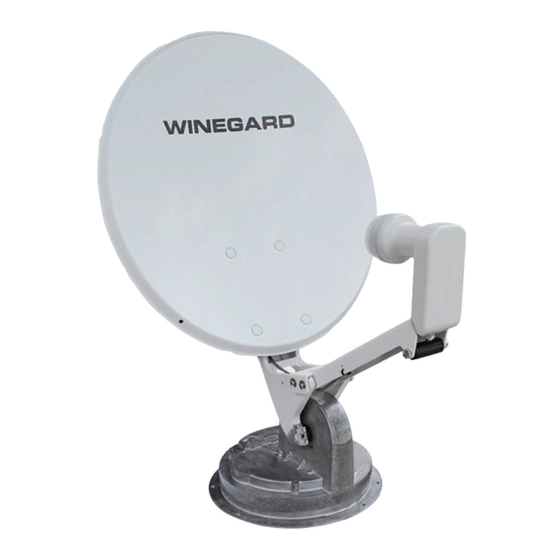

Winegard RM-DM46 Owner's Manual & Installation Instructions
Rv digital satellite system with digital elevation sensor
Hide thumbs
Also See for RM-DM46:
- Specification sheet (1 page) ,
- User manual (19 pages) ,
- Instructions manual (9 pages)
Table of Contents
Advertisement
Quick Links
OWNER'S MANUAL
INSTALLATION INSTRUCTIONS
WINEGARD
®
RV DIGITAL SATELLITE SYSTEM
with Digital Elevation Sensor
Models RM-DM46/DM00, RM-DM04, RMFLDM4
U.S. PATENT NO. 5,532,710
Made in U.S.A.
Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000
319/754-0600 • FAX 319/754-0787 • www.winegard.com
Printed in U.S.A. © Winegard Company 2002 2451069 Rev. 8/02
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winegard RM-DM46
Summary of Contents for Winegard RM-DM46

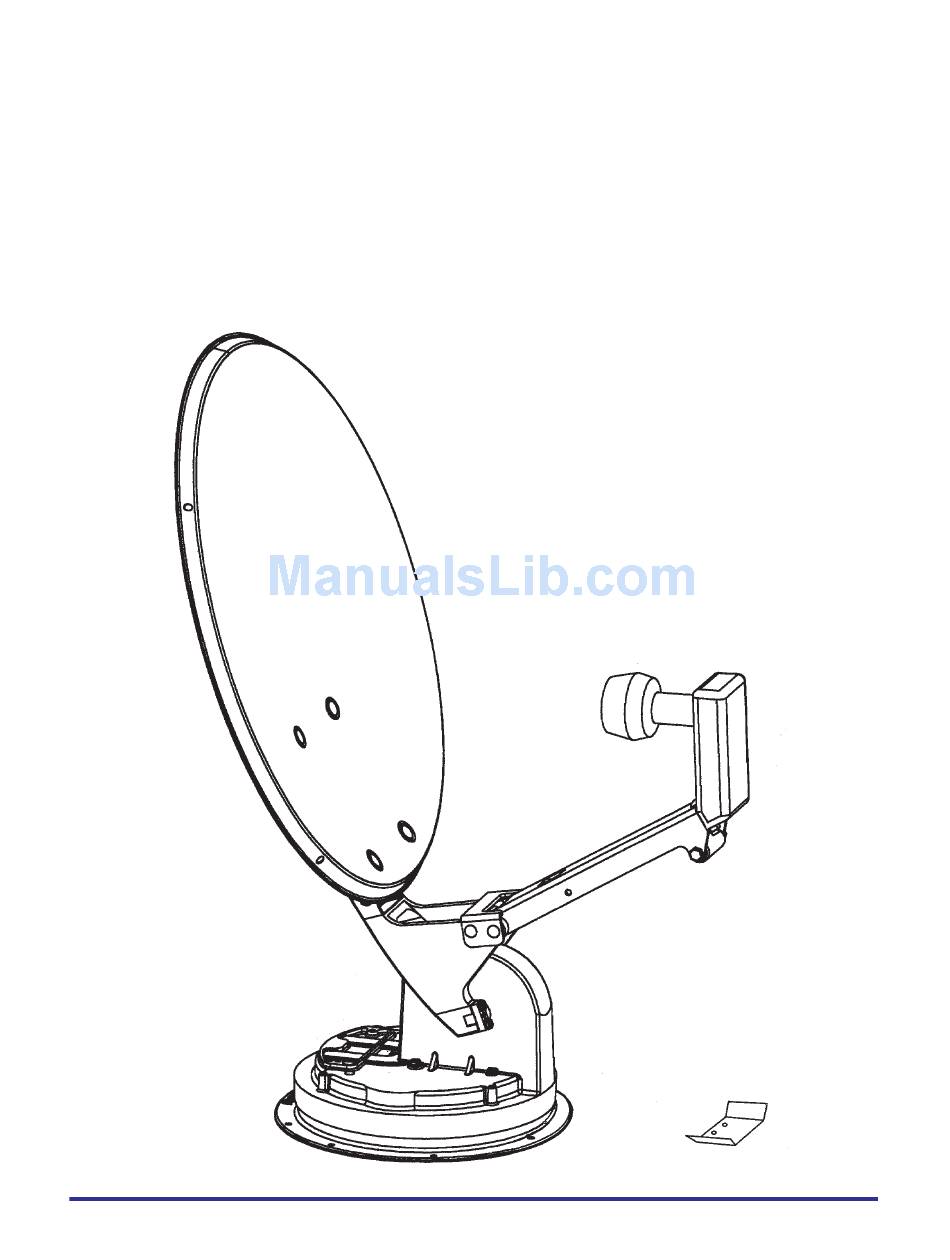

- Page 1 Digital Elevation Sensor Models RM-DM46/DM00, RM-DM04, RMFLDM4 U.S. PATENT NO. 5,532,710 Made in U.S.A. Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000 319/754-0600 • FAX 319/754-0787 • www.winegard.com Printed in U.S.A. © Winegard Company 2002 2451069 Rev. 8/02...
-
Page 2: Operation
Step 3. Press button on Winegard Digital Display Wall plate. If antenna is in travel position the display will show LL for Low Limit; HL for High Limit, will appear when dish is in up position. -
Page 3: Lowering Antenna To Travel Position
TUNING ANTENNA STEP 1. Your receiver should indicate it is receiving a signal. To tune your antenna for the best signal strength, slowly move the antenna left, then right until you have found the position that gives the highest signal strength. It is important to turn the antenna slowly;... -
Page 4: Troubleshooting
7. Inspect antenna. Make sure that it has not been damaged. If antenna is even slightly bent, the receiver may not receive any signal. 8. Contact Dealer or Winegard Service Department. FIGURE 2 ANTENNA DOES NOT ROTATE, OR IS HARD TO ROTATE 1. -
Page 5: Things You Need
7/16" wrench compatibility with your roof material) Tape measure Winegard’s Digital Elevation Sensor has been INSTALLED and CALIBRATED at the factory. INSTALLATION & ASSEMBLY STEP 1. Choose a location on the roof for dish that will allow dish to raise and rotate without interfering with other roof-mounted equipment. - Page 6 (4) Antenna STEP 3. Assemble dish to backup using Mounting Bolts bolts and nuts provided, Figure 4. STEP 4. Mount dish on roof in upright position. Rotate clockwise to stop, Figure 5. Dish will be toward back of vehicle when in stowed or travel position.
- Page 7 DIGITAL ELEVATION SENSOR ROOF CONNECTIONS The illustrations below show the different methods of connecting wires at roof level. Method will depend on model. Wire colors MUST MATCH, ie. red to red, green to green, black to black Supplied with the DM-2000 only. This wire harness connects to the digital elevation sensor on the antenna.
- Page 8 ABS (plastic pipe) glue. Worm NOTE: For roofs thicker that 5-1/4", a longer Gear aluminum hex shaft will be needed. Contact Winegard Company for this part. Threaded CUTTING SHAFT LENGTH, Figure 3F: Flip down handle on the elevating crank Ceiling Plate handle.
- Page 9 FIGURE 13 CAUTION: After INITIAL INSTALLATION, the antenna SHOULD ROTATE APPROXIMATELY 360°FROM TRAVEL POSITION. The pointer on the DIRECTIONAL HANDLE should point towards the RED SCREW ON THE ROTATION CLAMP when in TRAVEL POSITION. ASSEMBLED VIEW Elevating Shaft Threaded Tube Directional Handle Extension Ceiling Plate...
-
Page 10: Display Codes
DO NOT rotate continuously even if your are rotating slowly. If the elevation angle has STEP 17: Press button on Winegard digital display wall changed, it could be due to the following — plate. If antenna is in travel position, the display will •... -
Page 11: Parts List
PARTS LIST BACK VIEW (2) 1/4-20 Plastic Plug Hex Nut P.N. 2160228 O-Ring Backup Frame RP-4400 Worm Gear P.N. 2744939 (2) E-Clip for 1/4" Pin (2) 1/4 x 3.25" Pin P.N. 5160818 P.N. 2160813 Spacer Spring Screw Seal P.N. 2160196 Part of RP-30RM kit Cast Aluminum... - Page 12 P.N. 5160818) Travel Support Clamp (2) P.N. 2744934 P.N. 2590343 Sensor parts w/cable, Interior wallplate installed at factory display and parts RM-DM46 2780090 (2) 2160183 #10-32 x 1/2" (2) 2160138 DR-4500 Screw (2) 2160216 #6 x 1/2" Hex Head Wallplate...
- Page 13 PARTS LIST INTERIOR Ceiling Base HARDWARE KIT RK-CEIL Directional Dial (4) #10 Phillip Flat Head Screws Azimuth Lock Azimuth Lock Knob Directional Handle Washer Extension #10 x 3/8" Red Phillips Screw Directional Handle CRANK HANDLE KIT RK-HAND #8-32 x 3/8" Phillips Screw Crank Handle Base #8-32 Square Nut...
- Page 14 NOTES...
- Page 15 NOTES...
-
Page 16: Specifications
Company, 3000 Kirkwood Street, Burlington, Iowa 52601-2000, telephone 319-754-0600). Winegard Company (at its option) will either repair or replace the defective product at no charge to you. This warranty covers parts, but does not cover any costs incurred in removal, shipping or reinstallation of the product. This limited...
