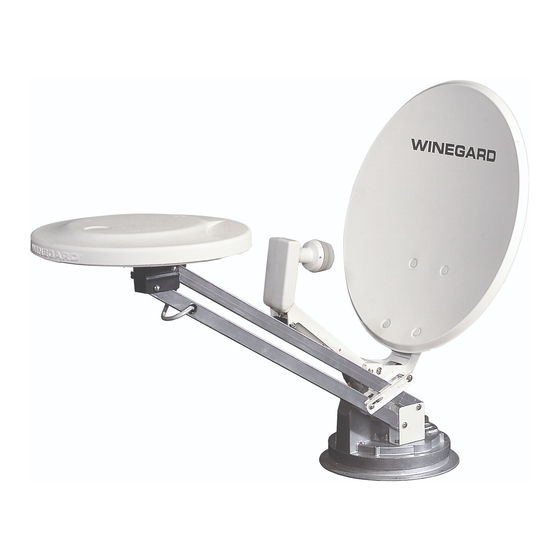

RV Digital Satellite System
with RS-1000 Antenna
U.S. PATENTS 5,532,710
IMPORTANT:
INSTALL POINT
OF BASE
TOWARD FRONT
OF VEHICLE!
OWNER'S MANUAL
INSTALLATION INSTRUCTIONS
WINEGARD
Model RD-4610
and 5,554,998
Made in U.S.A.
Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000
319/754-0600 • FAX 319/754-0787
Printed in U.S.A. © Winegard Company 2001 2451142 Rev. 6/05/01
®
Advertisement
Table of Contents
Related Manuals for Winegard RD-4610
Summary of Contents for Winegard RD-4610
-
Page 1: Installation Instructions
5,554,998 Made in U.S.A. IMPORTANT: INSTALL POINT OF BASE TOWARD FRONT OF VEHICLE! Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000 Printed in U.S.A. © Winegard Company 2001 2451142 Rev. 6/05/01 OWNER’S MANUAL 319/754-0600 • FAX 319/754-0787 ®... -
Page 2: Installation And Assembly
NOTE: The system must be level for proper operation. If you have a curved roof you should use a Winegard Model RW-1000 wedge kit to level the system. STEP 2. Position template on roof (last page of manual) and drill a 1-1/2"... - Page 3 STEP 3. Attach reflector to backup assembly as shown in Figure 2. STEP 4. Attach RS-1000 antenna to elevating tubes, see Figure 2, using the two Eclips and pins provided. Attach coax cable to F-jack on antenna, slide weather boot over boot collar.
- Page 4 STEP 5. The mount is designed to fit roofs 1" to 4 3/4" thick. If roof is less than 4 3/4" thick, cut elevating shft and directional handle to size. (See table below.) If roof is more than 4 3/4" thick, the RP-2000 Thick Roof Kit is required.
- Page 5 TOO MUCH OR TOO LITTLE WILL CAUSE DAMAGE TO COAX. STEP 11. Feed downleads through roof using Winegard Model CE-2000 cover plate (included with hardware). Weatherproof cable entry by applying approved sealant under lip of roof-thru plate and where cable enters roof.
-
Page 6: Assembled View
CAUTION: After INITIAL INSTALLATION, the antenna SHOULD ROTATE APPROXIMATELY 360 DEGREES FROM TRAVEL POSITION. The pointer on the DIRECTIONAL HANDLE should point towards the ROTATION CLAMP when in TRAVEL POSITION. ASSEMBLED VIEW POINTER MUST POINT TO CENTER OF ROTA- TION CLAMP WHEN IN TRAVEL POINT TO... -
Page 7: Operation
OPERATION STEP 1. Using a compass, determine which direction is North. It is recommended that you step outside to perform this step. Standing in or near coach/RV can give you an incorrect reading. The more accurately you determine North, the easier it will be to find the satellite(s). -
Page 8: Lowering Antenna To Travel Position
TUNING ANTENNA FOR BEST PICTURE STEP 8. Your receiver should indicate it is receiving a signal. To tune your antenna for the best picture, slowly move the antenna left, then right until you have found the position that gives the highest signal strength. It is important to turn the antenna slowly;... - Page 9 Coax downlead from satellite antenna Satellite Receiver A-B Switch FIGURE 6 Coax downlead from satellite antenna Satellite Receiver FIGURE 7 Coax downlead from satellite antenna Satellite Receiver FIGURE 8 Coax downlead from RS-1000 Power Supply Coax downlead from RS-1000 Power Supply Video Switch Set 2 Coax...
-
Page 10: Maintenance
MAINTENANCE MOUNT LUBRICATION To lubricate the mount, apply a liberal amount of silicone spray lubricant to the elevating gear, the lubricant hole and between the gear housing and baseplate. Run the antenna up/down and rotate the antenna to distribute the lubricant. See Figure 9. Spray lubricant here on elevation gear FIGURE 9... -
Page 11: Troubleshooting
319-754-0600). Winegard Company (at its option) will either repair or replace the defective product at no charge to you. This warranty covers parts, but does not cover any costs incurred in removal, shipping or reinstallation of the product. This limited warranty does not apply if the product is... -
Page 12: Parts List
PARTS LIST (not all parts listed due to space constraints) (4) 5/16" Hex Nut P.N. 2160230 (4) 5/16" Flat Washer P.N. 2160027 Backup (5) E-Clip P.N. 2745348 P.N. 5160818 Digital Elevation Device, If attached the 1/4-20 x 1.75 Hex Bolts are replaced with 1/4-20 x 2"... - Page 13 PARTS LIST Upper Elevating Tub P.N. 3506032 LNBF is attached to pivot arm with: 1/4-20 x 1/2" Cap Screw P.N. 2160240 LNBF 1/4-20 Nylock Hex Nut P.N. 2780161 P.N. 2160220 (2) 1/4" Washer P.N. 2160024 LNBF Pivot Arm P.N. 2745059 Spring P.N.
- Page 14 PARTS LIST INTERIOR HARDWARE KIT RK-CEIL Directional Handle Extension CRANK HANDLE KIT RK-HAND #8-32 x 3/8" Phillips Screw #8-32 Square Nut NOT TO SCALE Rev 6/05/01 #10 x 3/8" Phillips Screw Ceiling Base Directional Dial (4) #10 Phillip Flat Head Screws Azimuth Lock Azimuth Lock Knob Washer...
-
Page 15: Specifications
5 3/4" 5 1/2" 5 1/4" 5" Rev 1/2001 Printed in U.S.A. Winegard Company • 3000 Kirkwood Street • Burlington, Iowa 52601-2000 © Winegard Company, 2001 2451142 Rev. 6/05/01 Height when raised 37" max. 12.0" max. Operating radius 17" (34" diameter circle) Roof space required 19.5"... - Page 16 Rev. 8-97...
