OWNER'S MANUAL
INSTALLATION INSTRUCTIONS
WINEGARD
®

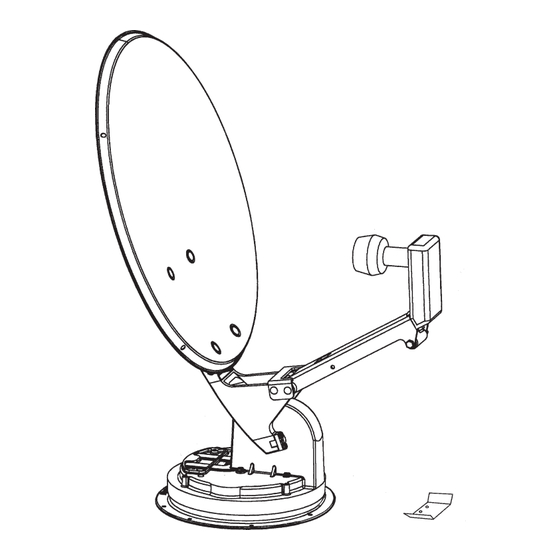

RV DIGITAL SATELLITE SYSTEM
with Digital Elevation Sensor
Models RM-46DE/00DE, RM-04DE, RM-FL4D
U.S. PATENT NO. 5,532,710
Made in U.S.A.
Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000
319/754-0600 • FAX 319/754-0787 • www.winegard.com
Printed in U.S.A. © Winegard Company 2000 2451970 Rev. 2/08/01
1
Advertisement
Table of Contents
Related Manuals for Winegard RM-46DE
Summary of Contents for Winegard RM-46DE
- Page 1 Digital Elevation Sensor Models RM-46DE/00DE, RM-04DE, RM-FL4D U.S. PATENT NO. 5,532,710 Made in U.S.A. Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000 319/754-0600 • FAX 319/754-0787 • www.winegard.com Printed in U.S.A. © Winegard Company 2000 2451970 Rev. 2/08/01...
-
Page 2: Installation And Assembly
. Winegard Model RW-5000 roof wedge with gasket is available. If inside roof wedge is needed, Winegard’s RW-1000 can be trimmed to fit ceiling plate. STEP 2. Position template on roof (pg. 8 this manual). CAUTION: DO NOT drill through wiring. - Page 3 (4) Antenna STEP 3. Assemble dish to backup using Mounting Bolts bolts and nuts provided, Figure 2. STEP 4. Mount dish on roof in upright position. Rotate clockwise to stop, Figure 3. Dish will be toward back of vehicle when in stowed or travel position.
- Page 4 Use ABS (plastic pipe) glue. than 1/32", recut directional handle. NOTE: For roofs thicker that 6-9/16", a longer aluminum hex shaft will be needed. Contact Winegard Company for this part. FIGURE 3F STEP 11. Flip down handle on the elevating crank handle (#5). Slide elevating crank handle up shaft until snug against directional handle.
- Page 5 Ceiling Plate Directional Handle Extension (4) #10 Phillips Flat Head Screws Directional Handle ALIGN POINTER WITH ANTENNA TRAVEL POSITION...
- Page 6 Figure 5 SM-1000 Surface Mount Box Wallplate Display Unit Supplied with RM-46DE, RM-FL4D and EM-00DE Step 13. See Figure 5. If using the SM-1000 surface mount box, feed cable through hole in box. Connect wires coming from sensor on roof to wall plate display in coach. Strip wires 1/4". It is IMPORTANT to connect the wires properly at roof and at wall plate.
-
Page 7: Operation
Step 3. Press button on Winegard Digital Display Wall plate. If antenna is in travel position the display will show LL for Low Limit; HH, for High Limit, will appear when dish is in up position. - Page 8 Roof Template Cable clamp attaches here. See Figure 3, page 3. 1-3/4" DIAMETER HOLE; DRILL COMPLETELY THROUGH CEILING 1/8" DRILL BIT 8 HOLES. DO NOT DRILL THROUGH CEILING.
- Page 11 TUNING ANTENNA STEP 1. Your receiver should indicate it is receiving a signal. To tune your antenna for the best signal strength, slowly move the antenna left, then right until you have found the position that gives the highest signal strength. It is important to turn the antenna slowly;...
- Page 13 (2) 1/4-20 Hex Nut P.N. 2160228...
-
Page 14: Parts List
PARTS LIST Location of elevation sensor on RM-46DE, installed and calibrated at the factory Mounting Screws Backup & Nuts Frame 46 cm Reflector, White Sensor Case Sensor Cable (4) Flat Head Bolts (White) P.N. 2160362 Pins and LNBF E-clips P.N. 2745282 Carriage Bolt P.N. - Page 15 PARTS LIST INTERIOR HARDWARE KIT RP-41RM Ceiling Base Directional Dial (4) #10 Phillip Flat Head Screws Azimuth Lock Azimuth Lock Knob Directional Washer Handle Extension #10 x 3/8" Phillips Directional Handle Crank Handle Base #8-32 x 3/8" Phillips Screw Crank Handle #8-32 Square Nut Knob #10 x 3/8"...
-
Page 16: Specifications
DIRECTV, Inc., a unit of Hughes Electronics Corporation. DISH Network is a trademark of EchoStar Communications Corporation. ANTENNA/LIFT/LNBF TWO YEAR LIMITED WARRANTY Printed in U.S.A. Winegard Company • 3000 Kirkwood Street • Burlington, Iowa 52601-2000 © Winegard Company, 2000 2451970 Rev. 2/08/01...
