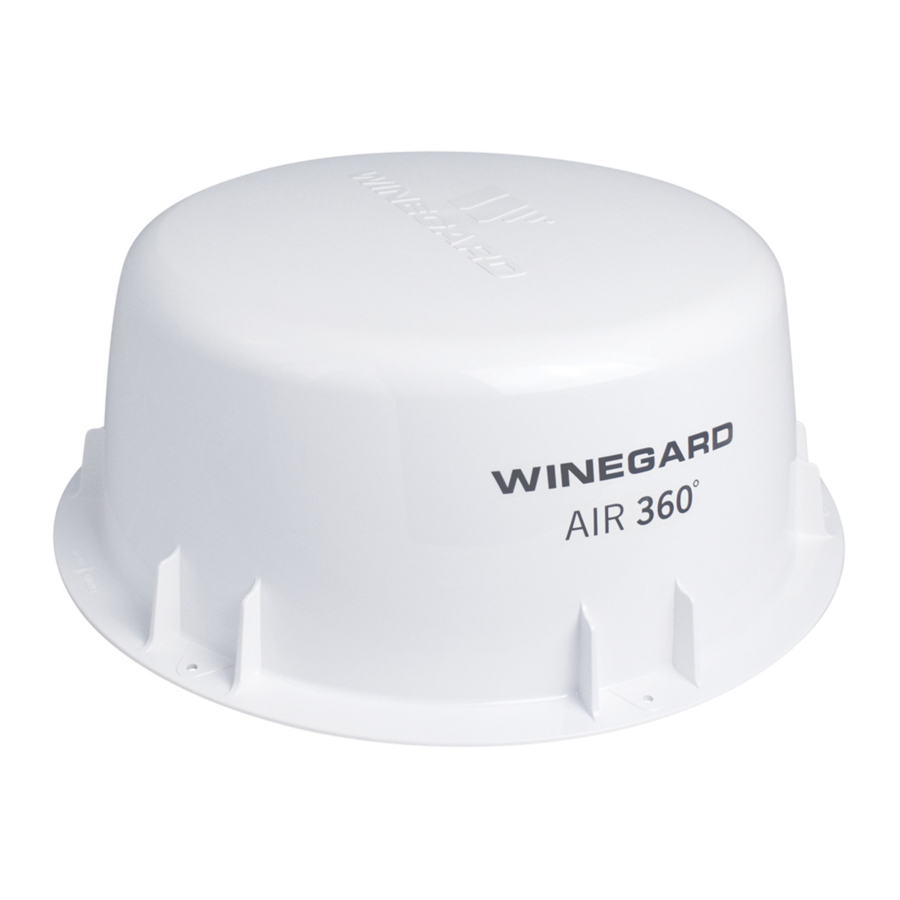

Winegard AIR 360, A3-1000, A3-1035, A3-0000 Manual

SPECIFICATIONS/FEATURES

• Designed for RV use
• Durable UV and weather resistant
• 360° Signal Reception
• High Definition VHF/UHF Digital Signals
• ATSC 3.0 Ready
• Amplified
• State of the art pHEMT technology with 4G LTE Filter
• Range – Up to 50 miles
• AM/FM (offered in some models)
• Height – 6.9"
• Diameter of dome – 17.25"
• Frequency Range:
  • VHF 54 to 216 MHz
  • UHF 470 to 700 MHz
  • AM 520-1710K
  • FM 87.5-108 MHz
• Gain – 18 dB
• Noise – 1 dB
• Impedance – 75 ohms
• Power Supply – DC 12V

AM/FM OPERATION

AM antenna offered only in some models.
Consult your vehicle owner's manual for operation of the radio.

First time users must run a channel scan after installing the antenna to receive maximum programming.
Ensure the antenna power supply (wall plate) is in the "ON" position and the green indicator light is illuminated.
A new scan will find any new channels that have been added in your area as well as finding any channels that have changed or moved since the last scan.
While the steps to perform a channel scan may vary between televisions or compatible devices, below are some general guidelines to follow.

How to Run a Channel Scan

Using the television remote, select "Menu" and then "Settings."
Select "Channel Setup."
Select "Antenna" or "Air," depending on your TV. Make sure you are not on "Cable."
Select "Channel Search" or "Channel Scan." Keep in mind that steps to perform a channel scan may vary. If the wording in your TV differs from the options shown, refer to your TV user manual for help.

Running a channel scan is NOT the same as pressing Channel UP/DOWN on your remote.

To receive maximum programming, you have to run a channel scan after setting up the antenna. To keep your channel line-up up-to-date, it is a good idea to run a channel scan monthly, anytime a channel is lost, and anytime you change locations.

Winegard App TV Signal Finder with AR

FREE DOWNLOAD

Finding your favorite TV programming has never been easier! Using your current location, the app searches for all available signals and determines the correct antenna positioning.
Antenna Pointer – Use the top-down map view to locate all HDTV towers closest to your address or GPS location. Eliminate signal obstructions such as trees, hills, and buildings by switching to the AR view. Simply point your phone to the horizon and rotate 360 degrees to bring into view your desired TV tower and find the best direction to point your antenna. The number displayed above a tower indicates the number of channels available. Tap the tower icon to see full channel details.

Avoid obstructions with the augmented reality (AR)* view.

*May not work on smartphones without sensors.
For help, email help@winegard.com or call 1-800-788-4417
