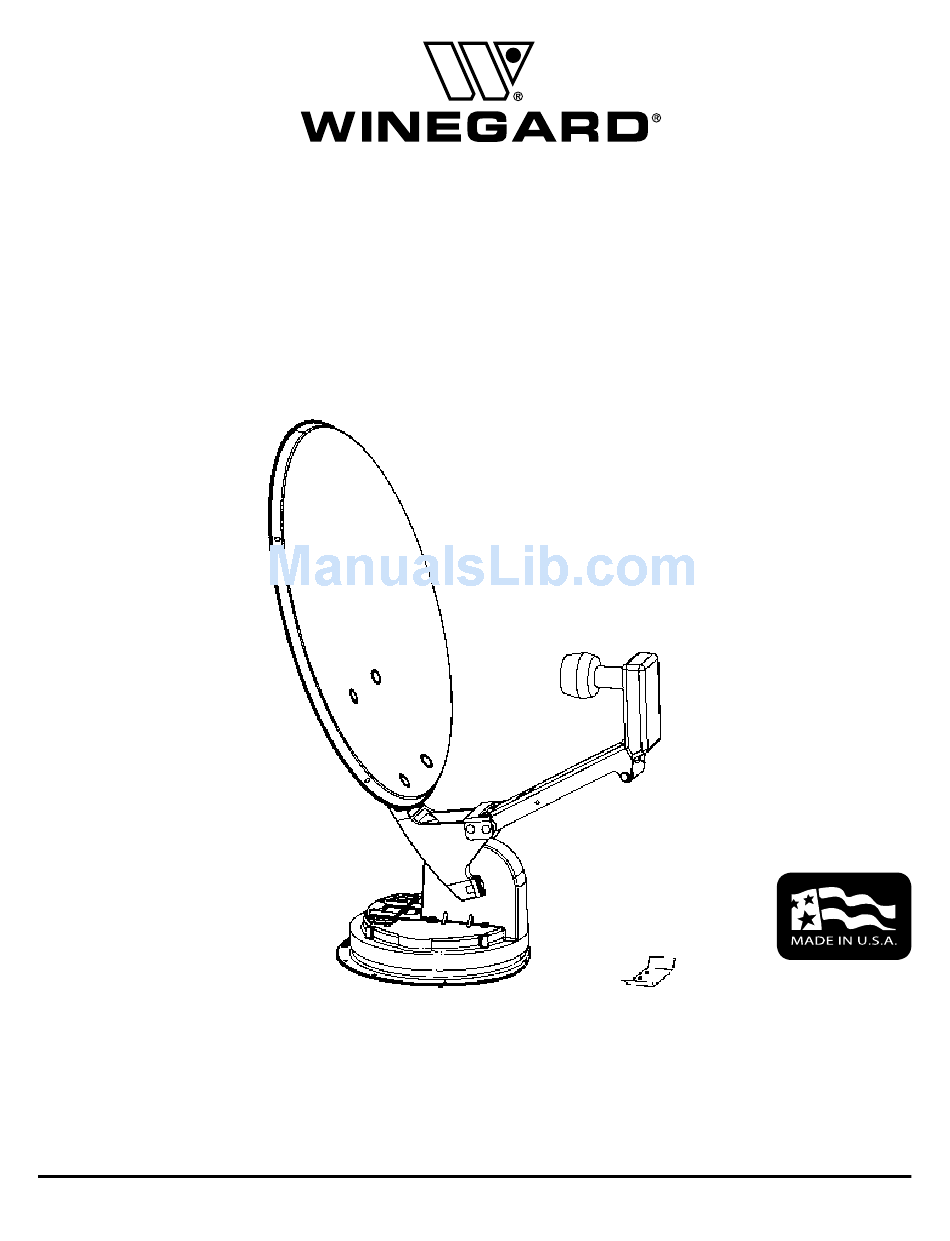

RV DIGITAL SATELLITE ANTENNA
with Digital Elevation Sensor
Model RM-DM46
may also be packaged as
RM-DM00, RMDM04, RMFLDM4
www.winegard.com
For Technical Services, call 1-800-788-4417
For Receivers and Programming, call 1-866-609-9374
DO NOT RETURN ANTENNA TO PLACE OF PURCHASE.
Winegard Company • 3000 Kirkwood Street • Burlington, IA 52601 • 800-288-8094 • Fax 319-754-0787
www.winegard.com • Printed in U.S.A. ©2002 Winegard Company Rev7 11/11 2451069

Advertisement

Table of Contents
loading

Related Manuals for Winegard RM-DM00

Summary of Contents for Winegard RM-DM00

  • Page 1 For Receivers and Programming, call 1-866-609-9374 DO NOT RETURN ANTENNA TO PLACE OF PURCHASE. Winegard Company • 3000 Kirkwood Street • Burlington, IA 52601 • 800-288-8094 • Fax 319-754-0787 www.winegard.com • Printed in U.S.A. ©2002 Winegard Company Rev7 11/11 2451069...

  • Page 2: Operation

    Unsnap the elevating crank, and turn the elevation handle CLOCKWISE to raise the antenna. Turn the elevating crank COUNTERCLOCKWISE to lower the antenna. STEP 3. Press the button on the Winegard digital display wall plate. If antenna is in travel position, the display will 1. Do check parking location for obstructions before raising antenna.

  • Page 3: Troubleshooting

    Winegard Model RW-5000 roof wedge with gasket is available. If inside roof wedge is needed, Winegard 5. Check connections at the receiver, TV, and antenna.
  • Page 4 Digital Elevation Sensor Roof Connections STEP 3. Attach dish to backup. Use bolts and nuts Figure 4 provided. See Figure 4. (4) Antenna The illustrations below show the different methods of connecting wires at roof level; method will depend on model. Mounting Bolts Wire colors must match, i.e.
  • Page 5 (plastic pipe) glue. housing; shaft goes through before aligning the directional handle and the hex-shaped opening by ceiling plate! the screw. NOTE: For roofs over 5¼” thick, a longer aluminum hex shaft is needed. Contact Winegard for this part. TIGHTEN SCREW SNUGLY!

  • Page 6: Parts List

    Due to variation in receivers and installation methods, you may find the STEP 24. Press button on Winegard digital display wall elevation numbers after peaking on strongest signal no plate. If antenna is in travel position, the display will longer match what the receiver display recommended.
  • Page 7 Parts List Parts Views RP-RM00 (Does not include LNB or Elevation Sensar) RP-35RM Carriage Bolt (not shown) Backup Frame Pivot Bracket Washer...
  • Page 8 Notes Notes...

  • Page 9: Specifications

    • Printed in U.S.A. ©2002 Winegard Company Rev7 11/11 2451069 Winegard is a registered trademarks of Winegard Company. DISH Network is a registered trademark of the EchoStar Satellite, L.L.C. DIRECTV is a registered trademark of DIRECTV, Inc., a unit of Hughes Electronics Corp. Bell TV is a trademark of Bell Canada, Inc. All trademarks are property of their respective owners.

This manual is also suitable for:

Rmfldm4Rm-dm46Rmdm04
