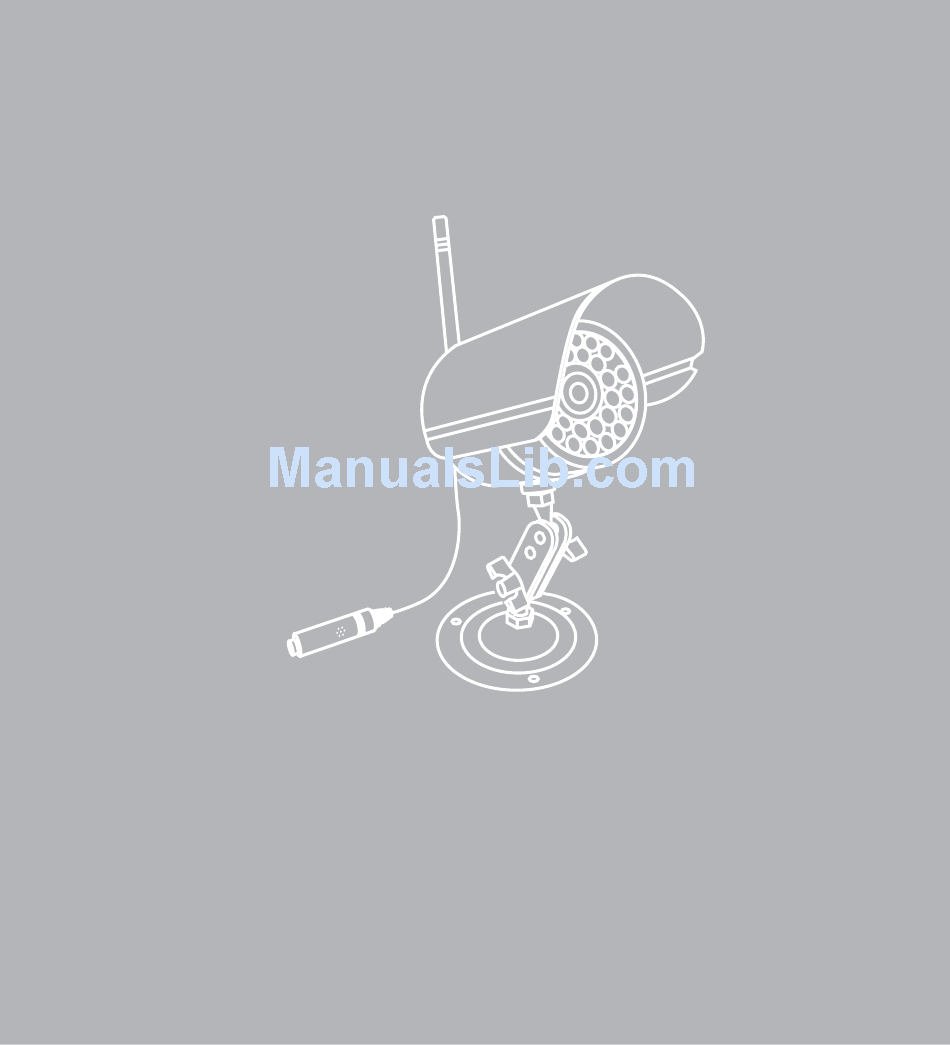

- Page 1 SecurityMan ® OutdoorWatch Series 2.4GHz Wireless Outdoor/Indoor Color Camera Kit with Night Vision/Audio User Guide...
- Page 3 The content of this manual is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by SecurityMan. SecurityMan assumes no responsibility or liability for any errors or inaccuracies that may appear in this book.
- Page 4 Limitation of Liability The liability of SecurityMan arising from this warranty and sale shall be limited to a refund of the purchase price. In no event shall SecurityMan be liable for costs of procurement of substitute prod- ucts or services, or for any lost profits, or for any consequential, incidental, direct or indirect dam- ages, however caused and on any theory of liability, arising from this warranty and sale.
- Page 5 1 feet away from any heart pacemaker. Radio waves might potentially influence heart pacemaker and lead to respiratory disturbance. DO NOT use this product for any illegal activities. SecurityMan shall not be responsible for any consequences of illegal conducts by users.
- Page 6 Conditions Please read the following messages to make sure whether your working envi- ronment is suitable. • Ensure there is enough space around the receiver for ventilation. • The temperature should be kept between –20˚C and 50˚C (-4F – 122˚F). The relative humidity should remain from 20% to 80%.
- Page 7 Warning: • In order to avoid inflammation or electric shock, this machine should be kept away from exposure to rain or moist, and it shall not be put in or near bath- rooms, washing pools, washhouses, moist basements, or swimming pools. •...
- Page 8 DO NOT put the package plastic bags in reach of children or babies. *It might cause asphyxia if children or babies putting the bags into their mouths. DO NOT plug the AC adapter into the out- let in improper situation. *Plugging AC adapter with wet hand might cause electric shock.
- Page 9 DO NOT disassemble or repair the cam- era, the receiver and other relevant periph- eral equipment. *Improper disassembly might cause damages to the product or the peripheral equipment. DO NOT use the receiver on the surface of thermo labile material. *Please embed thermal insulating material when using on the surface of the thermo labile material.
- Page 10 DO NOT let several cameras with same frequency work at the same time. *The overlap of the electromagnetic wave sig- nal of the same frequency might cause severe interferences and unable to receive signals. Please adjust the brightness on TV or on monitor to achieve optimum efficiency.
-
Page 11: Table Of Contents
Contents Introduction Package Contents Technical Support Product Basics Installation Diagram Installation A) Setting up the Anntannas B) Setting up the Camera C) Setting up the Receiver D) Setting up the Receiver with TV/Monitor/VCR/DVR Specification Troubleshooting... -
Page 12: Introduction
Introduction Thank you for purchasing OutdoorWatch/ OutdoorWatch4. OutdoorWatch/OutdoorWatch4 is a convenient wireless security camera kit for any outdoor/indoor surveillance of a home or a business. It con- sists of a wireless camera/4 wireless cameras, a receiver, and needed accessories. Note: Please read the manual entirely before using the product. Package contents: OutdoorWatch •... -
Page 13: Product Basics
Product Basics Camera Dip-Switch Antenna Microphone Sunshade Built-in (not weatherproof, Infrared LEDs for indoor use only) for night vision Bracket (with 2 adjustable Power Jack viewing angle) Receiver CH1~CH4 Antenna Dip-Switch Power Jack LED channel Indicator DC 8V O F F DC8V Manual Manual/Auto... - Page 14 Dip-Switch (Camera) To adjust the dip-switch channel for the camera, unscrew to remove the front portion of the camera. Switch Use a pointed object to set the dip-switch to desired channel Channel ON GDH02 ON GDH02 ON GDH02 ON GDH02 OFF OFF...
- Page 15 Dip-Switch (Receiver) Manual Mode Dip-Switch ON/OFF Receiver channel will be set manually O F F Switch for different channel Loop Mode (Up=OFF, Down=ON) Receiver channel will loop automatically Basic Dip-switch Setting Manual Loop CH1 CH2 CH3 CH4 Receiver Status Mode Mode OFF OFF OFF OFF No Camera Singal received...
- Page 16 Channel Switch LED channel Indicator Manual Channel Switch If you set the Dip-Switch on the back of the receiver to M (Manual Mode), you can set the receiver to receive desired channel by pressing the Channel Switch. The LED channel indicator light will be on when the desired channel is selected.
-
Page 17: Installation Diagram
Installation Diagram VCR/DVR A / V Cable adapter TV/ Monitor WARNING: When using power adapter, make sure the voltage indica- tions on the adapters are compatible to the devices to avoid potential damages for incorrect usage of power. Installation A) Setting up the Anntannas Connect the antenna to the receiver and camera... -
Page 18: B) Setting Up The Camera
B) Setting up the Camera Set the camera to desired Dip-Switch Channel Place the camera at desired location. Plug the power adapter jack into the power jack Plug the power adapter to any DC outlet Mark down the Dip-Switch Channel of each camera. (The receiver will receive signal from camera’s corresponding Dip-Switch Channel and display in different channels. -
Page 19: D) Setting Up The Receiver With Tv/Monitor/Vcr/Dvr
D) Setting up the Receiver with TV/Monitor/VCR/DVR Connect one end of the A/V cable to the A/V out jacks of the Receiver. Connect the other end to your TV/Monitor A/V jacks. Plug the Receiver’s Power Supply (8V DC Adapter) into any wall out- let and plug its jack into the Receiver. -
Page 20: Specification
Specification... -
Page 22: Troubleshooting
Troubleshooting Abnormal Phenomena Possible Reasons/Solutions *Check the camera / receiver connected to power supplies, and power on. *Check if the channel of receiver is corresponding to camera; *Check the distance and blocks. *Interfered by other sources; *Check the distance and blocks. *Mismatching system of PAL TV and NTSC cameras or vice versa. - Page 24 www.securitymaninc.com...
