WARNING: Use of removable hard drive enclosures other than Promise
SuperSwap is not supported and may result in performance loss or other
undesired results.
3.
Attach one Ultra ATA cable to each hard drive. Then attach one cable to each of the
IDE connectors on the FastTrak TX2000 controller card. The colored edge of the
cable(s) indicates pin 1 (see below), and the blue cable connector must be attached
to the FastTrak TX2000 connector.
NOTE: You must use an 80-wire, 40-pin cable when connecting an Ultra
ATA/133 hard drive to the FastTrak TX2000 controller card. The FastTrak
TX2000 package contains two 80-wire, 40-pin cables.
FastTrak TX2000™ Series User Manual
IDE 2
IDE 2

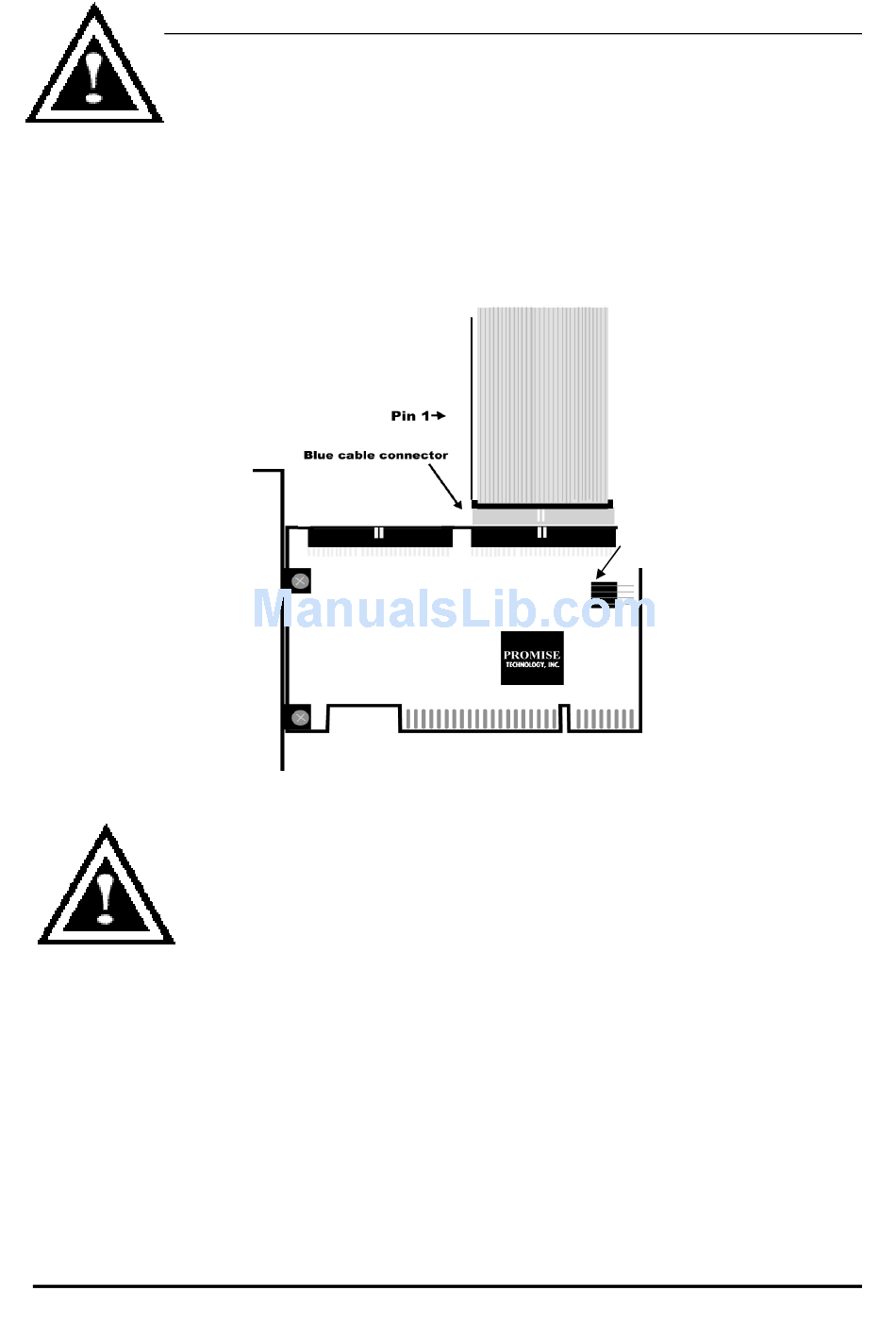

Figure 2
IDE 1
8
LED Pin 1
