Installing The Card
Installing the FastTrak TX2000 controller card in a system is a simple process. The card fits into
any available 32-bit PCI slot (must be PCI 2.1 or 2.2 compliant), or the 32-bit portion of a 64-bit
PCI slot, on the system's motherboard (see figure below).
1.
Remove the cover of your system.
2.
Remove the inside slot cover of an available 32-bit PCI slot on the motherboard.
3.

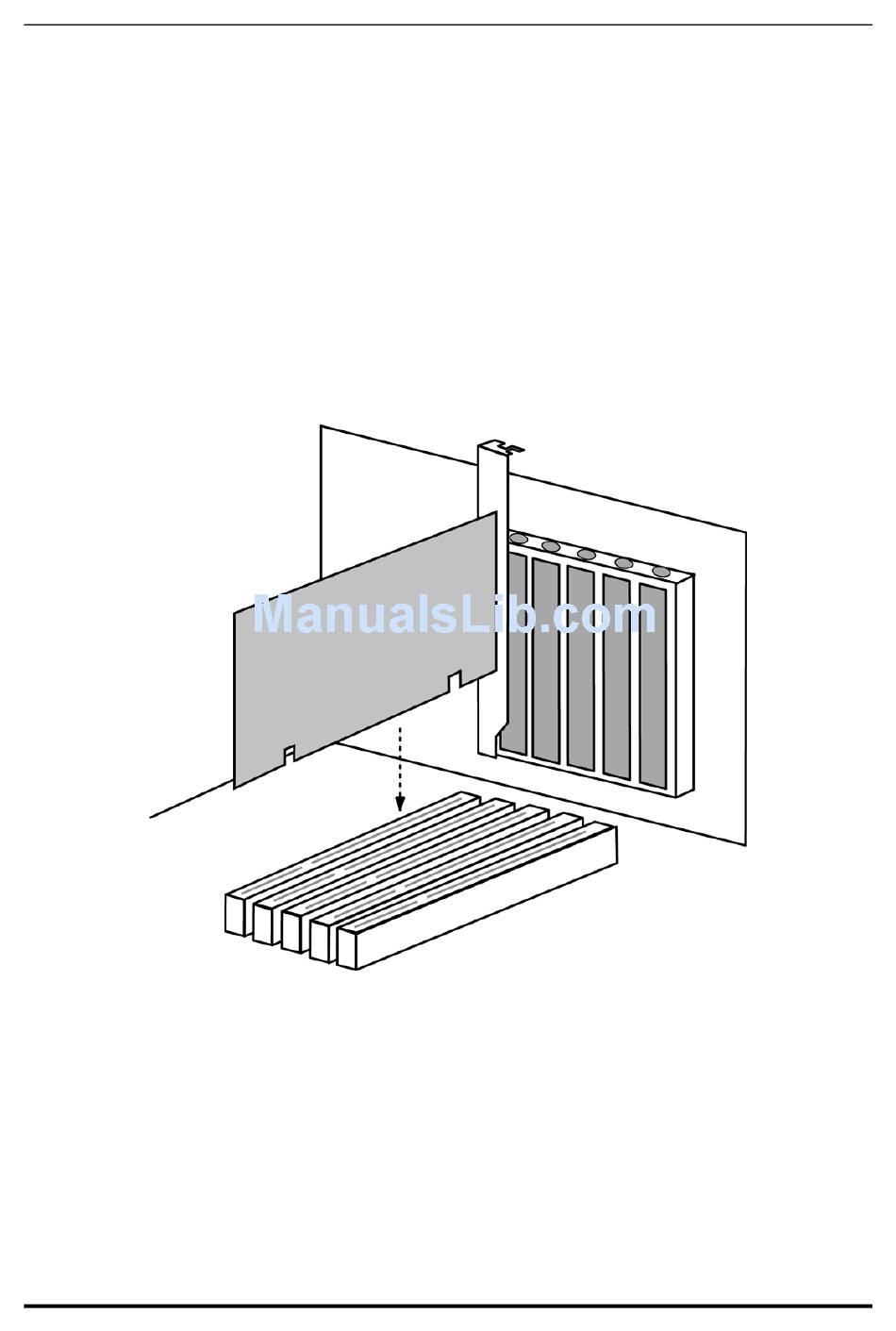

Install the FastTrak TX2000 controller card into the open slot (see Figure 1 below).
4.
Attach your system case's 2- or 4-pin LED cable to the LED connector on the
FastTrak TX2000 controller card (see Figure 2 on page 8). Make sure that pin 1 on
the connector is aligned with pin 1 of the cable.
5.
Fasten the controller card bracket to the system case (see below).
FastTrak TX2000™ Series User Manual
Figure 1
6
