C o n t r o l s a n d F e a t u r e s

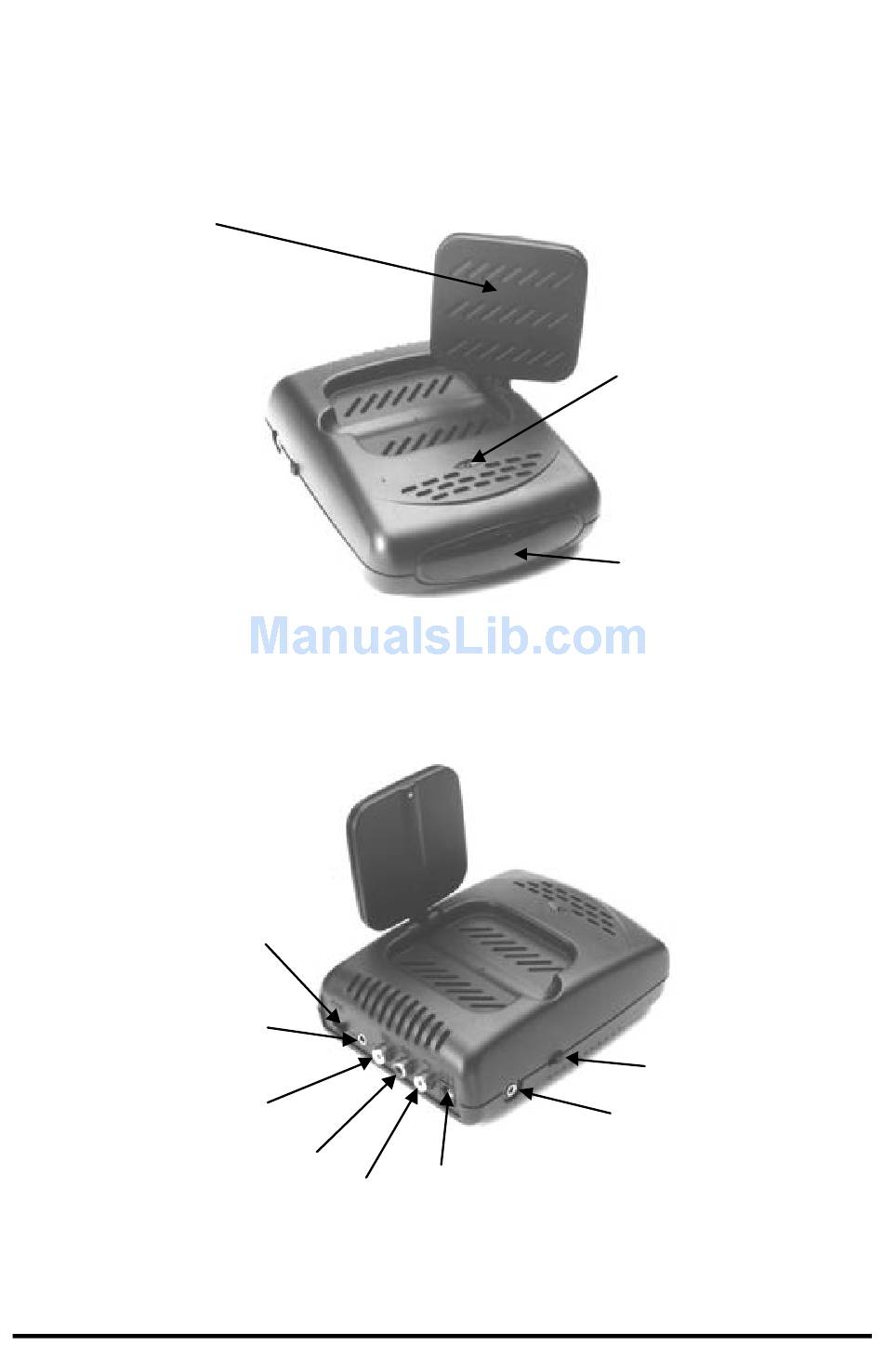

Transmitter
Front View
Directional 2.4 GHz
antenna
Transmits and receives
audio and video signals.
Caution: Do not ratate
this antenna 360 degrees
or permanent damage to
both antenna and
mechanical stopper will
occur.
Rear View
Channel selection switch
Use to find optimal
reception. Must select
same channel on both
transmitter and receiver.
5V DC OUT
For external channel 3/4
modulator. (Not included)
Audio left jack (white)
Audio right jack (red)
TM
4 WAVECOM
Video jack (yellow)
Sr. owner's manual
12V DC IN
12V power adapter plug
Indicator light
The indicator light
should be lit when the
ON/OFF switch is at
ON position.
Remote control window
Transmits UHF remote
control signals.
ON/OFF switch
12V DC OUT
12V power output jack for
approved accessory.
