Orienting the Remote Control Antennas

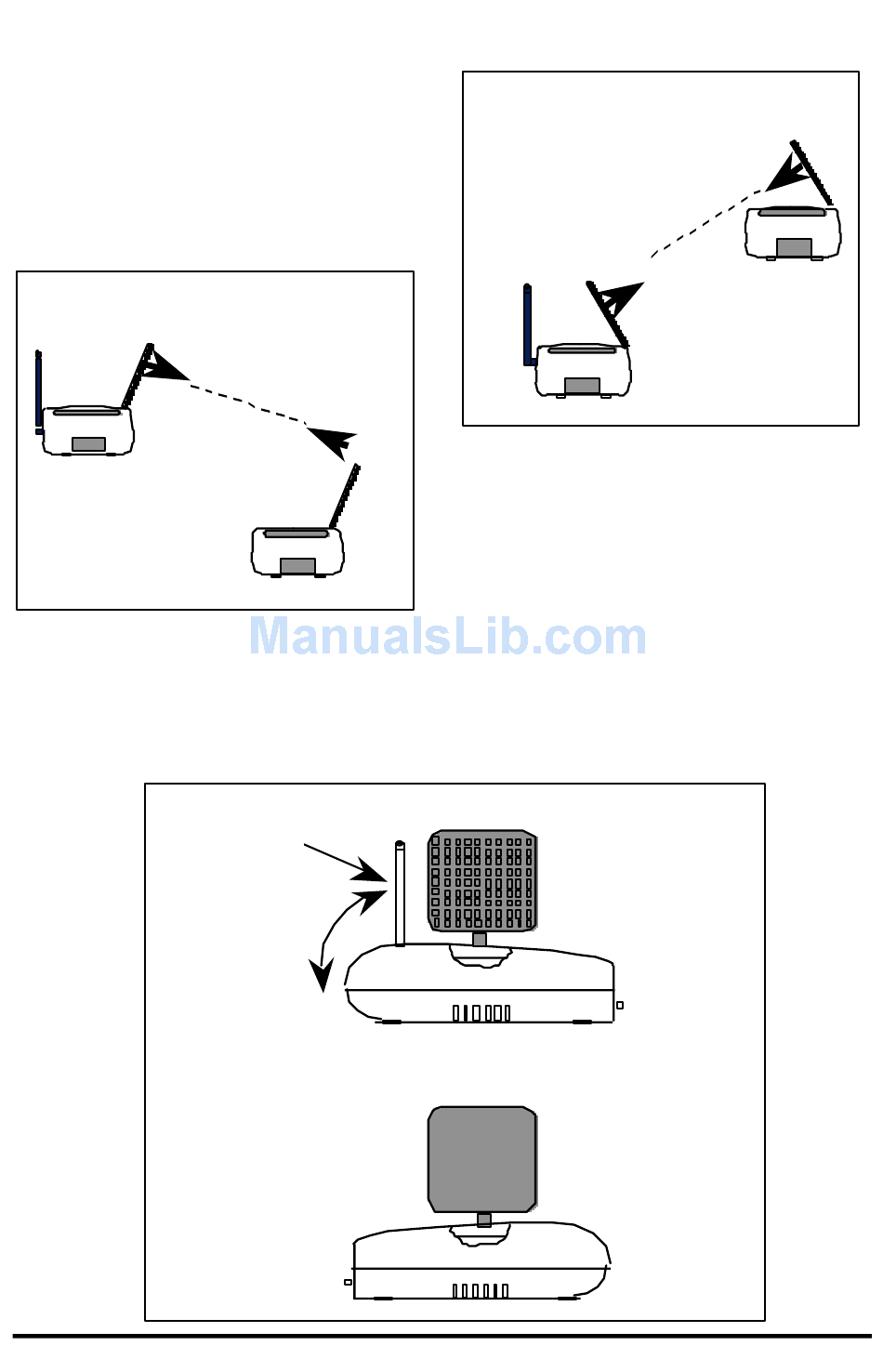

For most applications, the transmit
remote control antenna should also be
oriented vertically with respect to the
main housing (see diagrams 1 & 2)
Remote
Control
Pitted Side
Antenna
Audio/Video
Antenna
Transmitter
(Front View)
If you remoter remote control extender is not working satisfactorily, rotate the
transmit remote control antenna to different positions (see diagram 3). If
you notice improved performance, keep this orientation.
TM
24 WAVECOM
2
Audio/Video
Antenna
Pitted
Side
face
Receiver
(Front View)
3
Remote
control
Antenna
Transmitter
(Side View)
Side view of WAVECOM Sr.
Audio/Video
Antenna
Receiver
(Side View)
Sr. owner's manual
1
Remote
Control
Antenna
Pitted Side
Audio/Video
Antenna
Transmitter
(Front View
)
Audio/Video
Antenna
Audio/Video
Antenna
Pitted Side
Receiver
(Front View)
