C o n t r o l s a n d F e a t u r e s

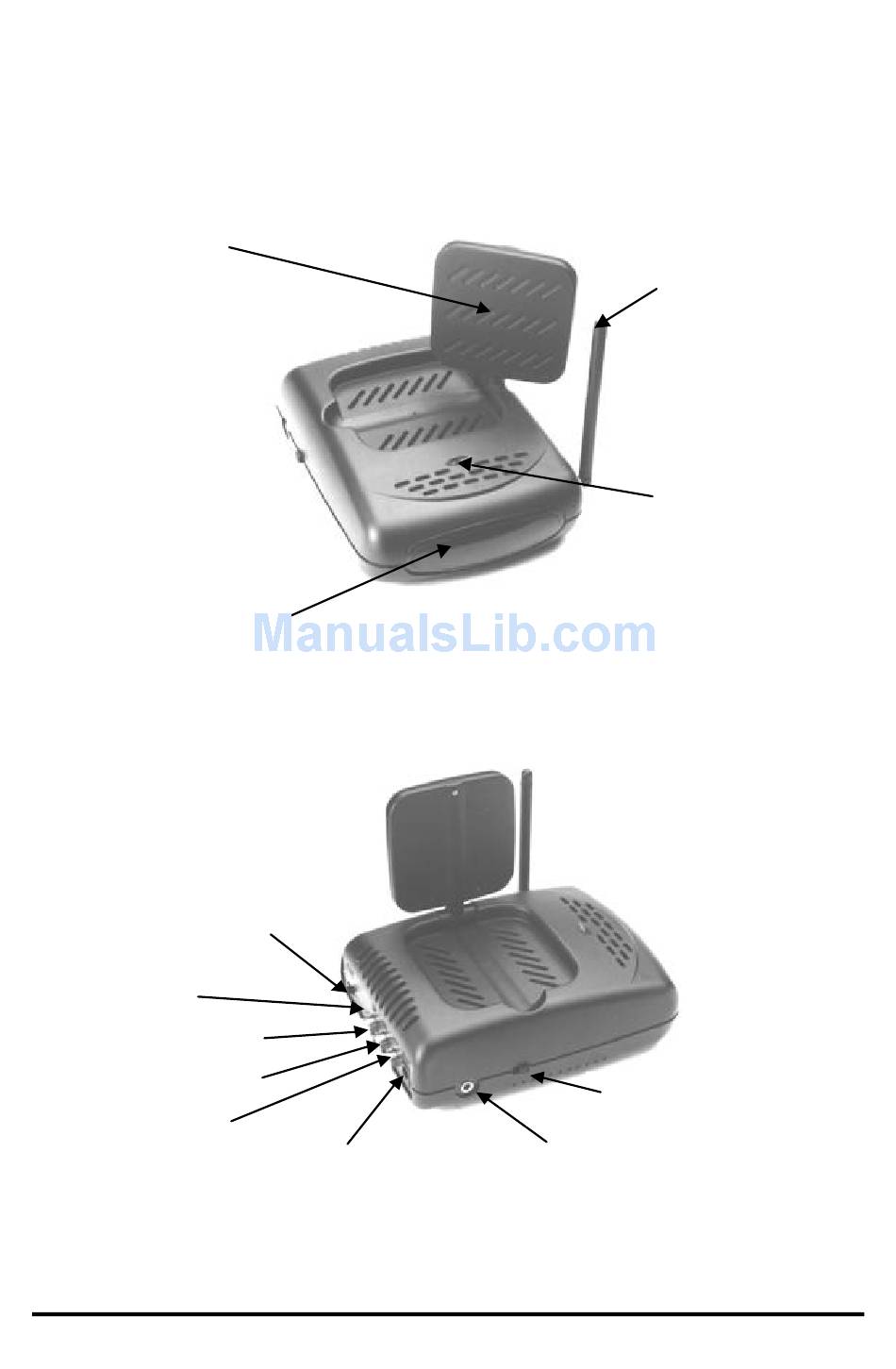

Transmitter
Front View
Directional 2.4 GHz
antenna
Transmits and receives
audio and video signals.
Caution: Do not rotate
this antenna 360 degrees
or permanent damage to
both antenna and
mechanical stopper will
occur.
Remote control window
Infrared passes through this
to remotely control
audio/video signal source.
Rear View
Channel selection switch
Use to find optimal
reception. Must select
same channel on both
transmitter and receiver.
IR mouse jack
Left audio jack (white)
Right audio jack (red)
Video jack (yellow)
12V DC IN
12V power adapter plug
12V DC OUT
12V power output jack
for approved accessory.
TM
WAVECOM Sr. owner's manual 3
Remote control antenna
Receives UHF remote
control signals.
Indicator light
The indicator light should
be lit when the On/Off
switch is at On position.
On/Off switch
