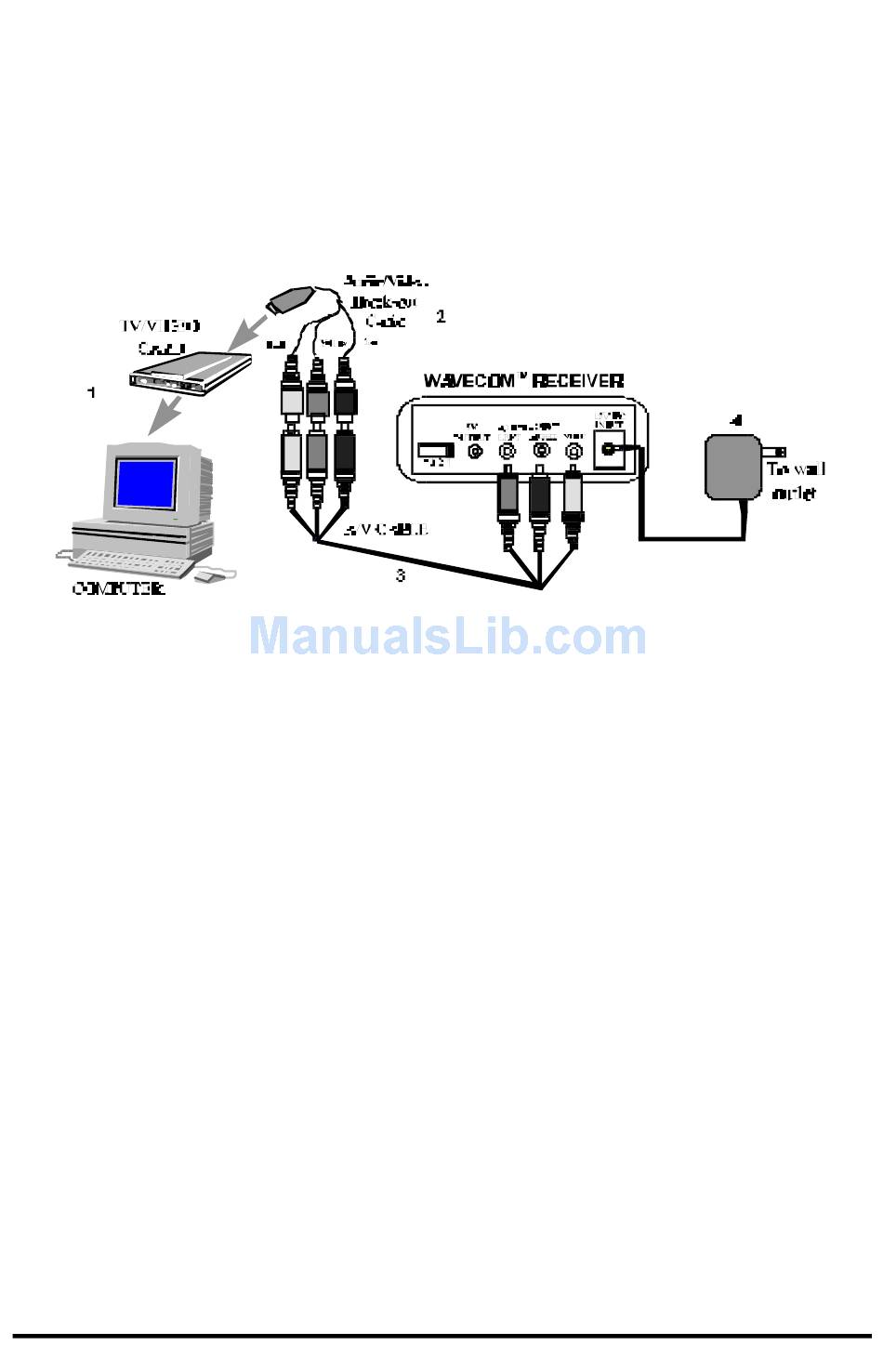

making sure to match the color code of the RCA plugs and jacks.
Step 4. Plug one end of the provided power adapter into the back of the
WAVECOM
Turn the ON/OFF switch to ON position and indicator light should go on.
Step 5. Locate and orient the transmitter according to the chapter of this manual
titled "Orienting units for optimal performance."
O r i e n t i n g u n i t s f o r o p t i m a l
p e r f o r m a n c e
TM
WAVECOM Sr. should be placed on a flat, stable surface to prevent it from falling.
For uneven or very smooth surfaces, such as the top of your TV, audio/video
components, or entertainment center, fastener strips have been provided to secure
the units (strips may be cut into smaller squares with scissors)
For optimal performance, both the audio/video and remote control antennas should
be carefully oriented as described below. For maximum operating range, try to
minimize the number of obstacles (such as TV, other components, or furniture)
between the transmit ter and receiver units. In addition, try to place the units as high
as possible to avoid any possible interference from people walking between the
transmitter and the receiver.

Orienting the audio/video antennas

TM
WAVECOM Sr. broadcasts its high-quality audio and video using directional
antennas which must be oriented in certain configurations for maximum results. The
2.4Ghz audio/video antennas have been designed to pivot and have limited rotation in
either clockwise or counterclockwise directions.
TM
22 WAVECOM
TM
Sr. receiver and the other end into any 120-volt wall outlet.
Sr. owner's manual
