Your UXGA and Audio Optical Transmitter and Receiver

4 Your UXGA and Audio Optical Transmitter and Receiver
This section describes the:
•
672T UXGA and Audio Optical Transmitter, see
•
672R UXGA and Audio Optical Receiver, see
4.1

Your 672T UXGA and Audio Optical Transmitter

Figure 1 and
Transmitter:

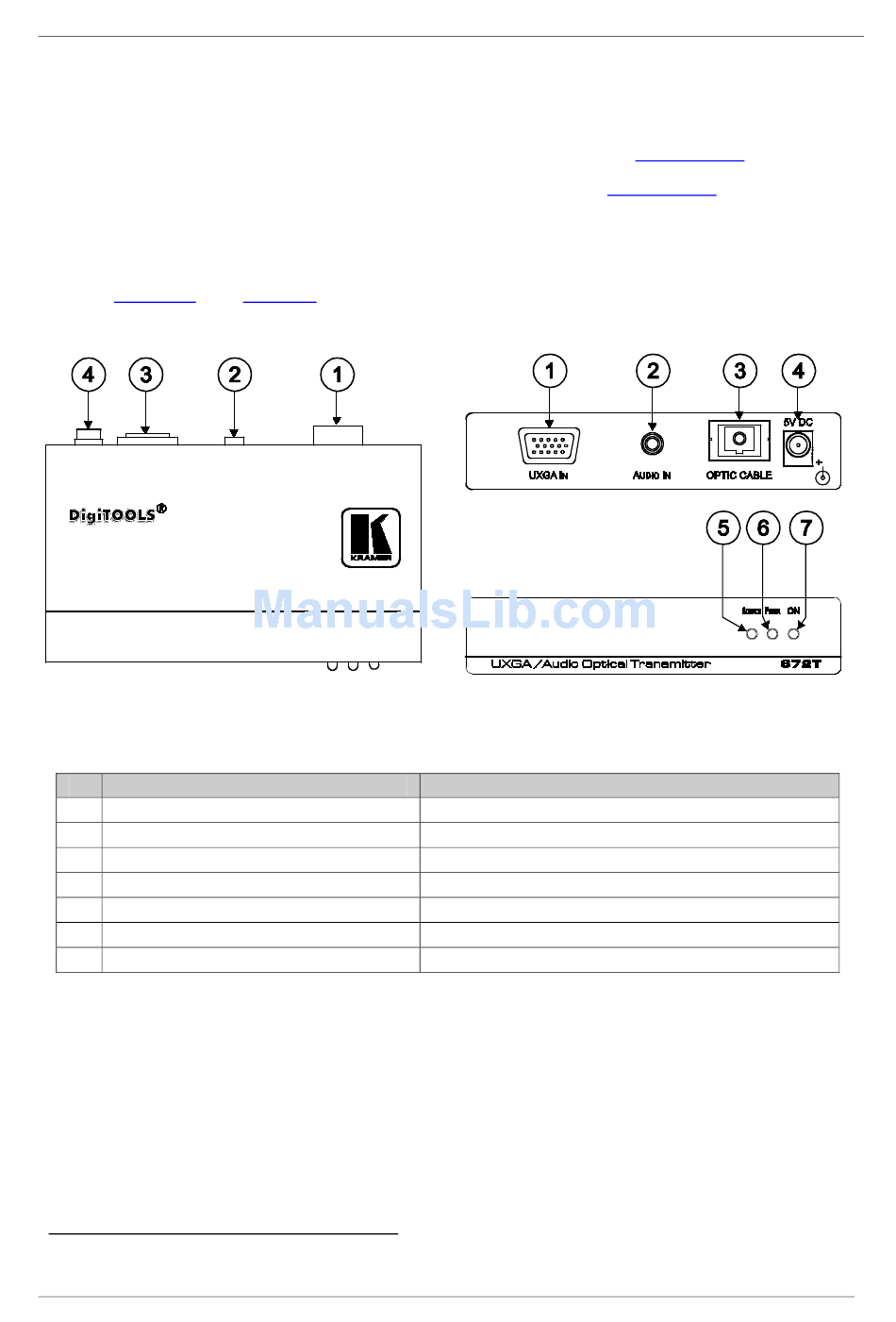

Figure 1: 672T UXGA and Audio Optical Transmitter

Table 1: 672T UXGA and Audio Optical Transmitter Features

#
1 UXGA IN 15-pin HD Connector
2 AUDIO IN 3.5mm Mini Jack Connector
3 OPTIC CABLE Connector
4 5V DC
5 SOURCE LED
6 FIBER LED
7 ON LED
1 With a dust cap cover
4
Table 1 define the 672T UXGA and Audio Optical
Feature
1
Connects to the computer graphics source
Connects to an unbalanced stereo audio source
Connects to the optical connector on the 672R
+5V DC connector for powering the unit
Lights when a source is connected
Lights when the fiber optic cable is connected
Illuminates when receiving power
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Section 4.1
Section 4.2
Function
