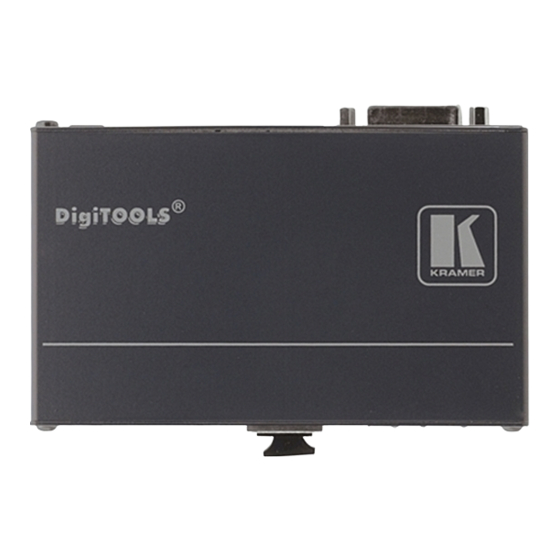

- Page 1 K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: 671T DVI Optical Transmitter 671R DVI Optical Receiver P/N: 2900-000484 Rev 4...
-
Page 3: Table Of Contents
Introduction Getting Started Achieving the Best Performance Safety Instructions Recycling Kramer Products Overview Defining the 671T, 671R DVI Optical Transmitter/Receiver Connecting the 671T, 671R Technical Specifications Figures Figure 1: 671T DVI Optical Transmitter Figure 2: 671R DVI Optical Receiver Figure 3: Connecting the 671T/671R Transmitter/Receiver System... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer 671T, 671R away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The 671T converts the DVI signal to an optical signal, and the 671R converts the optical signal back into a DVI signal. Together, the 671T and 671R form a DVI transmitter/receiver over multimode fiber system. The 671T and 671R pair features: ... -
Page 8: Figure 1: 671T Dvi Optical Transmitter
3.1.1 Your 671T DVI Optical Transmitter Figure 1 defines the 671T DVI Optical Transmitter: Figure 1: 671T DVI Optical Transmitter Feature Function DVI IN Connector Connects to the DVI source CONNECTED FIBER Illuminates when the fiber optic cable is connected... -
Page 9: Figure 2: 671R Dvi Optical Receiver
Indicates a valid video signal on the transmitter side ON LED Illuminates when receiving power OPTIC CABLE Connector Connect to the optical connector on the 671T (remove dust cap prior to use) 5V DC +5V DC connector for powering the unit... -
Page 10: Connecting The 671T, 671R
3. Remove the dust caps and connect the OPTIC CABLE connector of the 671T to the OPTIC CABLE connector of the 671R, via optic OM3 cabling with SC connectors (maximum range of 2000 meters (over 6560ft)). 4. Connect the 5V DC power adapter to the power socket on each unit and... -
Page 11: Figure 3: Connecting The 671T/671R Transmitter/Receiver System
Figure 3: Connecting the 671T/671R Transmitter/Receiver System 671T, 671R - Connecting the 671T, 671R... -
Page 12: Technical Specifications
12cm x 7.95cm x 2.76cm (4.7" x 3.1" x 1.08") W, D, H WEIGHT: 0.3kg (0.67lbs) approx. each ACCESSORIES: 2 power supplies (5V/2A), 2 bracket installation kits Specifications are subject to change without notice at http://www.kramerelectronics.com 671T, 671R - Technical Specifications... - Page 14 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
