- Page 1 Kramer Electronics, Ltd. USER MANUAL Models: 673T , HD-SDI Optical Transmitter 673R , HD-SDI Optical Receiver...
-
Page 2: Table Of Contents
Figure 1: 673T HD-SDI Optical Transmitter Figure 2: 673R HD-SDI Optical Receiver Figure 3: Connecting the 673T/673R Transmitter/Receiver System Tables Table 1: 673T HD-SDI Optical Transmitter Features Table 2: 673R HD-SDI Optical Receiver Features Table 3: Technical Specifications of the 673T and the 673R... -
Page 3: Introduction
2 Each package consists of a transmitter and receiver set. Each item in the set is rendered to work specifically with each other, so two separate sets should not be mixed 3 Download up-to-date Kramer user manuals from the Internet at http://www.kramerelectronics.com 4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
Getting Started 2.1 Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
673R receiver that converts them back to serial digital signals. The 673T and 673R pair has a transmission range of 1000 meters (more than 3,200ft). Both the 673T and 673R: •... -
Page 6: Recommendations For Achieving The Best Performance
• 673T HD-SDI Optical Transmitter, see section • 671R HD-SDI Optical Receiver, see section 4.1 Your 673T HD-SDI Optical Transmitter Figure 1 and Table 1 define the 673T HD-SDI Optical Transmitter: Figure 1: 673T HD-SDI Optical Transmitter 1 For example, part number 2535-052002... -

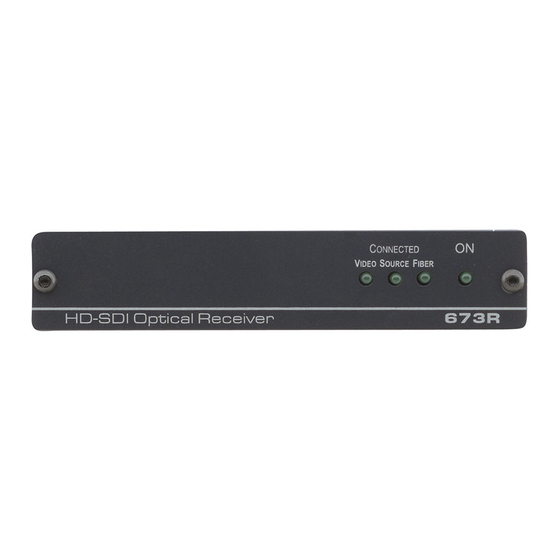

Page 7: Your 673R Hd-Sdi Optical Receiver
Your HD-SDI Optical Transmitter and Receiver Table 1: 673T HD-SDI Optical Transmitter Features Feature Function 5V DC +5V DC connector for powering the unit OPTIC CABLE Connector Connects to the optical connector on the 673R via multimode fiber cable SDI IN BNC Connector... -
Page 8: Connecting The 673T And 673R Transmitter/Receiver System
2. Connect the four SDI OUT connectors to up to four SDI acceptors (for example, HD-SDI displays). 3. Remove the dust caps and connect the OPTIC CABLE connector of the 673T to the OPTIC CABLE connector of the 673R, via OM3 cabling (maximum range of 900 meters (2950ft)). -
Page 9: Figure 3: Connecting The 673T/673R Transmitter/Receiver System
Connecting the 673T and 673R Transmitter/Receiver System Figure 3: Connecting the 673T/673R Transmitter/Receiver System... -
Page 10: Technical Specifications
Technical Specifications 6 Technical Specifications Table 3 includes the technical specifications Table 3: Technical Specifications of the 673T and the 673R 673T 673R INPUTS: 3G HD-SDI/HD-SDI/SDI/Dual-link SDI 1 optical connector serial video, 75Ω on BNC connectors OUTPUTS: 1 optical connector 3G HD-SDI/HD-SDI/SDI/Dual-link SDI serial video, 75Ω... - Page 11 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
