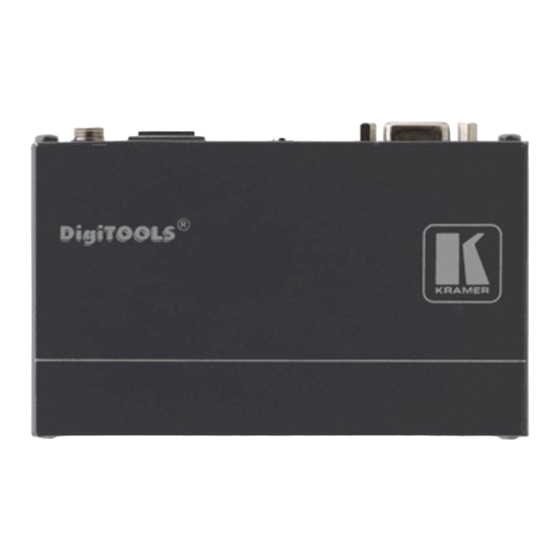

- Page 1 K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: 672T UXGA Audio Optical Transmitter 672R UXGA Audio Optical Receiver P/N: 2900-000549 Rev 4...
-
Page 3: Table Of Contents
Introduction Getting Started Achieving the Best Performance Safety Instructions Recycling Kramer Products Overview Defining the 672T, 672R UXGA Audio Optical Transmitter/Receiver Connecting the 672T, 672R Technical Specifications Figures Figure 1: 672T DVI Optical Transmitter Figure 2: 672R DVI Optical Receiver Figure 3: Connecting the 672T/672R Transmitter/Receiver System 672T, 672R –... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer 672T, 672R UXGA Audio Optical Transmitter/Receiver, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer 672T, 672R away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The 672T and 672R are an optical fiber transmitter and receiver for computer graphics signals up to UXGA and stereo audio signals. The 672T converts the computer graphics and stereo audio signals to an optical signal, and the 672R converts the optical signal back to computer graphics and stereo audio signals. -
Page 8: Figure 1: 672T Dvi Optical Transmitter
3.1.1 Your 672T UXGA Audio Optical Transmitter Figure 1 defines the 672T UXGA Audio Optical Transmitter: Figure 1: 672T DVI Optical Transmitter Feature Function UXGA IN 15-pin HD Connects to the computer graphics source Connector AUDIO IN 3.5mm Mini Jack... -
Page 9: Figure 2: 672R Dvi Optical Receiver
(670T and 671T), set the switch to the left AUDIO OUT 3.5mm Mini Jack Connects to an unbalanced stereo audio acceptor Connector Connects to the optical connector on the 672T (before OPTIC CABLE Connector use remove the dust cap cover) 5V DC... -
Page 10: Connecting The 672T, 672R
Connect the 5V DC power adapter to the power socket on each unit and connect the adapter to the mains electricity (not shown in Figure Note: A 672T can be connected to Kramer’s 670R or 671R to convert a VGA input to an HDMI/DVI output. 672T, 672R - Connecting the 672T, 672R... -
Page 11: Figure 3: Connecting The 672T/672R Transmitter/Receiver System
Figure 3: Connecting the 672T/672R Transmitter/Receiver System 672T, 672R - Connecting the 672T, 672R... -
Page 12: Technical Specifications
12cm x 6.95cm x 2.cm (4.7" x 2.74" x 1.0", W, D, H) WEIGHT: 0.3kg (0.67lbs) approx. each ACCESSORIES: 2 power supplies (5V/2A), 2 bracket installation kits RK-3T 19” rack adapter OPTIONS: Specifications are subject to change without notice at http://www.kramerelectronics.com 672T, 672R - Technical Specifications... - Page 14 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
