Step 1: Check what's in the box
675T
HDMI Optical Transmitter
675R
HDMI Optical Receiver
2
OSP-MM1
Fiber Optic SFP+ Transceivers

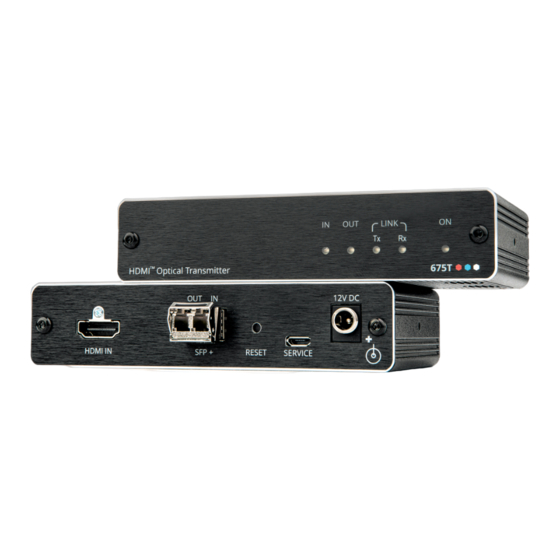

Step 2: Get to know your 675R/T
675T
#
Feature
1
IN LED
2
OUT LED
3
LINK Tx and Rx LEDs
4
ON LED
HDMI™ IN Connector
5
6
OUT IN SFP+ Connector
7
RESET Recessed Button
8
SERVICE Micro USB Port
9
12V DC Power Connector
675R/T Quick Start
675R/T Kit Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/675R/T
upgrades are available.
Function
Lights green when a connected source device (with an active HDMI signal) is
detected.
Flashes 4 times green when resetting the device.
Off when a connected source device with an active signal is not detected.
Lights green when both a connected HDMI source (with an active HDMI signal) and
a connected far-end HDMI acceptor are detected.
Off if either the source or the acceptor is not connected, or an active signal is not
present.
Light green when OUT IN SFP+ is connected and an active optical link is detected.
Light red when OUT IN SFP+ is connected, but an active optical link is not detected.
Off when OUT IN SFP+ is disconnected.
Lights green when the device receives power.
Connect to an HDMI source.
Connect the fiber optic cable to the plugged-in SFP+ optical module connector.
Press and hold to reset settings to factory default values.
Connect to a PC to perform firmware upgrade (via K-Upload).
12V DC connector for powering the unit.
675R/T
for the first time.
to download the latest user manual and check if firmware
2 Power adapters and cords
8 Rubber feet
P/N: 2 9 0 0 - 3 0 1 3 8 9 QS
1 Quick start guide
2 Bracket sets
Rev: 1
Advertisement
Related Manuals for Kramer 675R/T
Summary of Contents for Kramer 675R/T
- Page 1 675R HDMI Optical Receiver 8 Rubber feet 2 Bracket sets OSP-MM1 Fiber Optic SFP+ Transceivers Step 2: Get to know your 675R/T 675T Feature Function IN LED Lights green when a connected source device (with an active HDMI signal) is detected.
- Page 2 • Maximum mounting height for the device is 2 meters. Step 4: Connect the inputs and outputs Always switch OFF the power on each device before connecting it to your 675R/T. For best results, we recommend that you always use Kramer high-performance cables to connect AV equipment to 675R/T.
- Page 3 To install/replace the OSP-MM1 or other Kramer recommended SFP+ transceiver: 1. Pull the bail out and remove the currently installed transceiver, insert the protective cap and store in a safe place. 2. Make sure the bail of the new transceiver is pushed up, in the closed position.
- Page 4 4096x2160@60Hz 4K@60 (4:4:4) Compliance HDMI 2.0 and HDCP 2.2 Extension Line Optical Fiber Multi-mode (MM) or single-mode (SM) Optical Module Kramer 10Gbps SFP+ IEEE 802.3ae compliant modules (OSP-MM1 modules included) Multi-mode Line Compliance G.651.1 OFNR fiber Max Reach over OM3 MM Fiber 3km (1.8 miles)
