Digicast Media Router S2 Receiver CMR-5975 (MR-S2)
Configuring and Controlling the Digicast CMR‑ 5975 Media Router with SNMP
E.4 MIB II

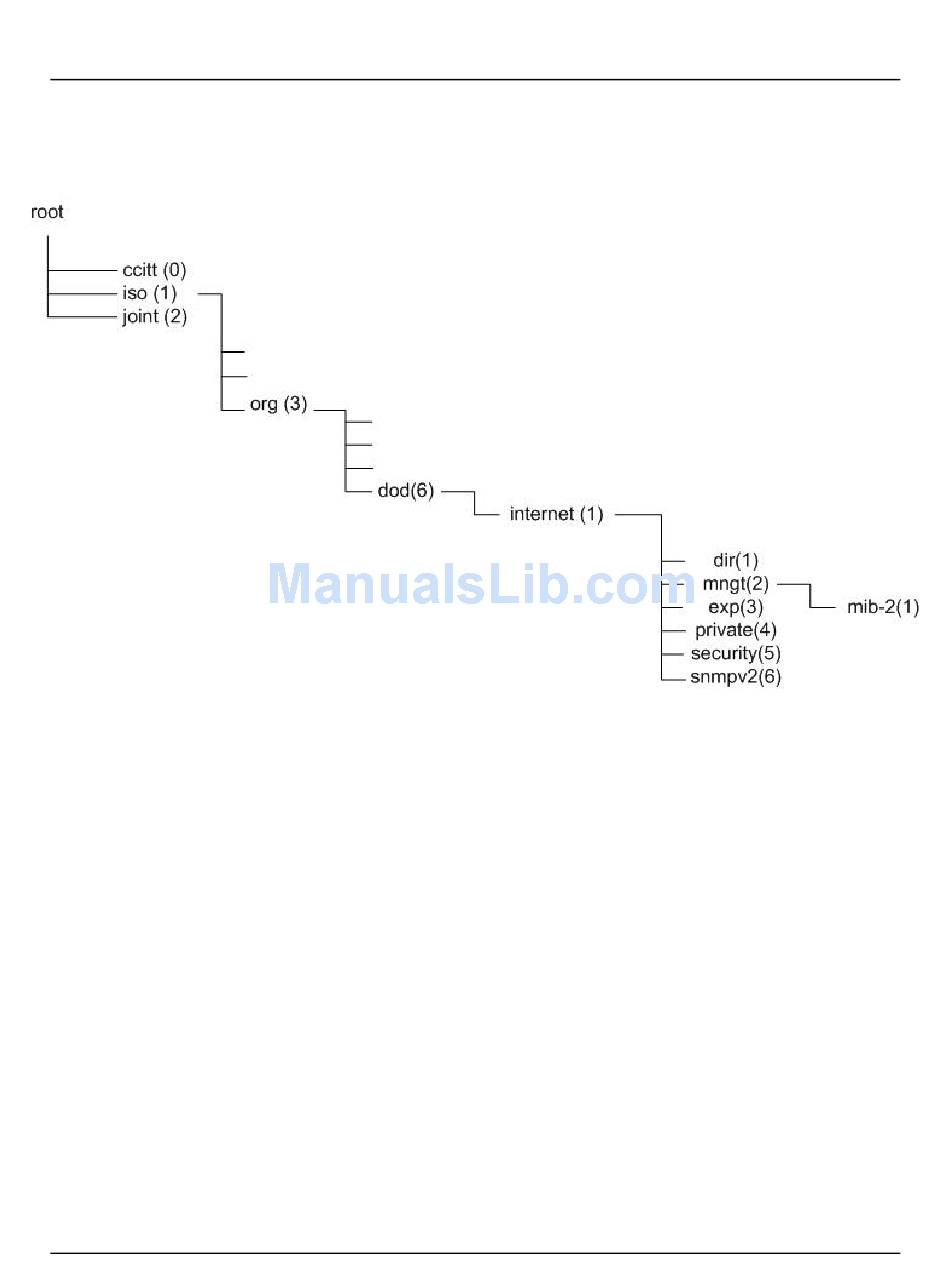

The SNMP MIB-II, as defined by Request for Comments (RFC) 1213, is a compilation of OIDs
fashioned in a hierarchical structure, as shown below:
The resulting notation used inside the MIB is represented in doted decimal notation as follows:
1.3.6.1.2.1.
1 = iso
3 = org
6 = dod
1 = internet
2 = mngt
1 = mib-2
etc.
Any remaining digits to the right of the last digit shown are sub elements and represent the actual
variables in the MIB.
