Digicast Media Router S2 Receiver CMR-5975 (MR-S2)
Device Management via User Interfaces
4.2.6

Network Configuration

The Network Configuration page has the following configurable parameters:
IP Address
The IP Address assigned to the MR-S2's LAN interface. The IP Address is entered in dotted
decimal format.
Subnet Mask
The Subnet Mask assigned to the MR-S2's LAN interface. The Subnet Mask is entered in dotted
decimal format and is typically 255.255.255.0 for a C-Class mask, 255.255.0.0 for a B-Class
mask or 255.0.0.0 for an A-Class mask.

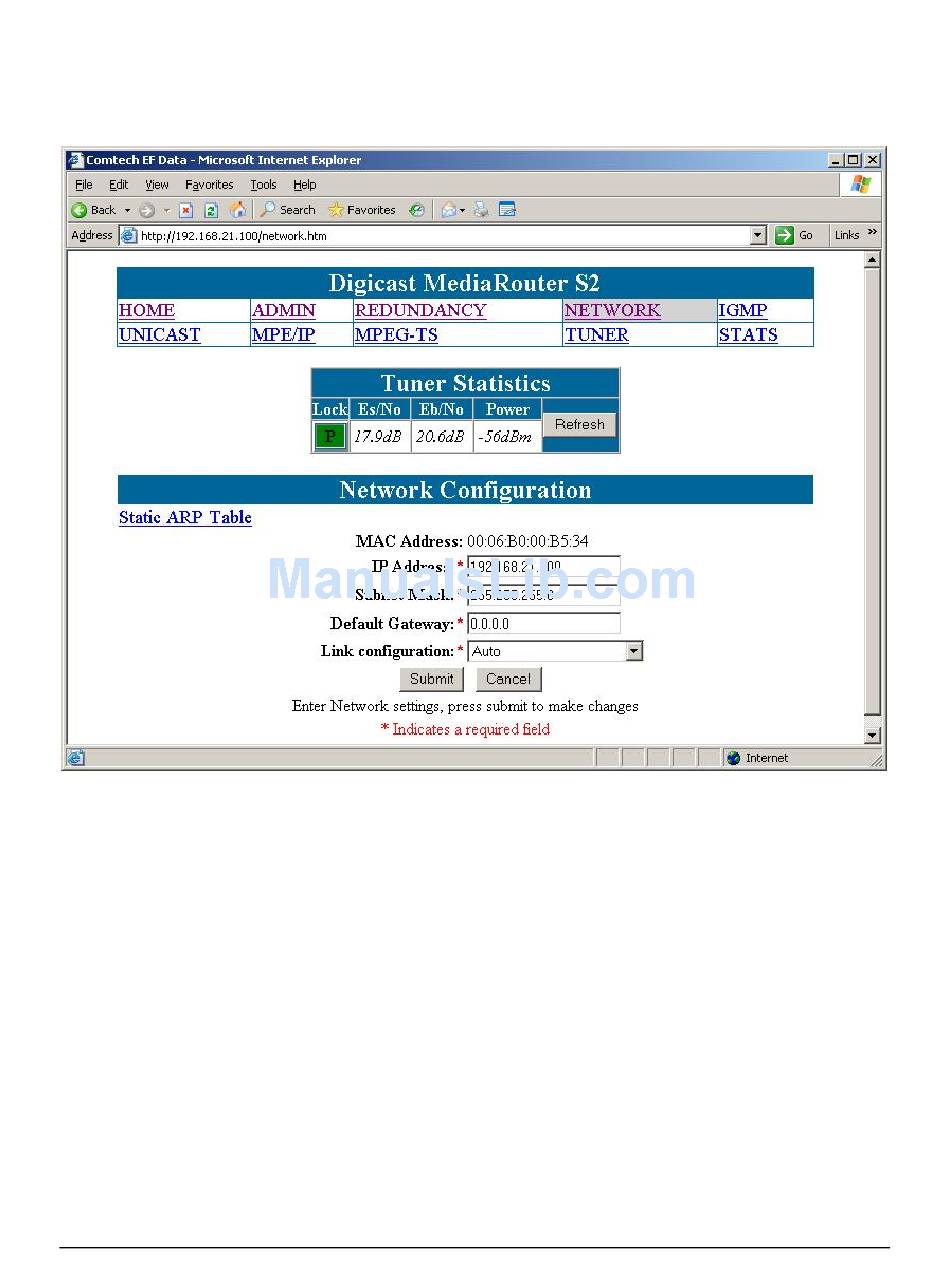

Figure 4-9. Network Configuration page

4-10
Revision 1
MN-0000032
