Network Arp; Figure 4-10. Network Arp Configuration Page - Comtech EF Data MR-S2 Installation And Operation Manual

Digicast Media Router S2 Receiver CMR-5975 (MR-S2)
Device Management via User Interfaces
4.2.7

Network ARP

The CMR-5975 allows the user to define a static ARP for a defined IP address. This mode should
only be used when an IP flow is required to be directed to a particular MAC address.
Name
The name of the table entry.
IP Address
A valid IP address of a device on the network.
MAC Address
The MAC address associated with the IP address.

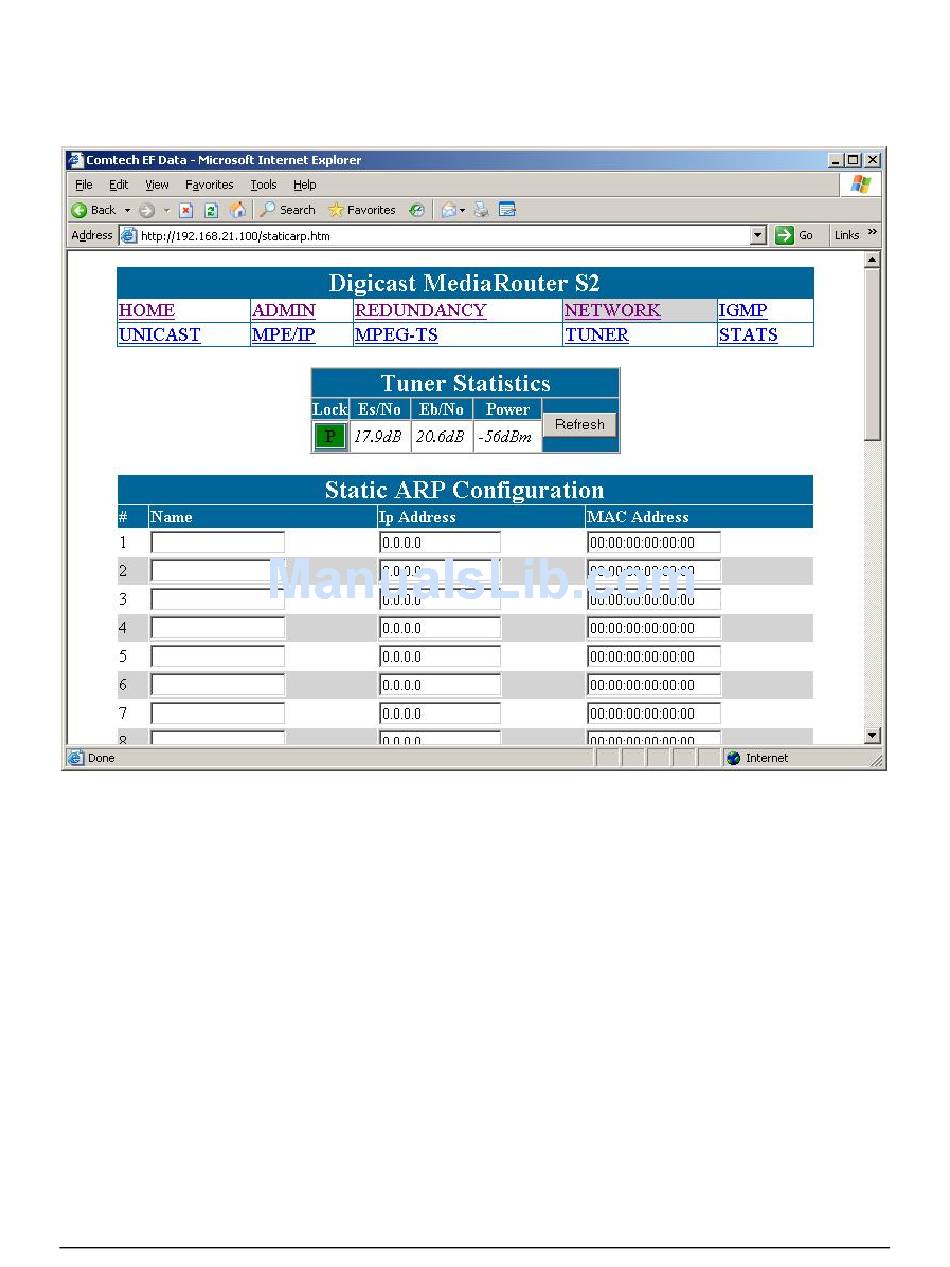

Figure 4-10. Network ARP Configuration page

4-12
Revision 1
MN-0000032
