Digicast Media Router S2 Receiver CMR-5975 (MR-S2)
Device Management via User Interfaces
Satellite MAC (MPE/IP)
The hardware Media Access Control (MAC) address assigned for Unicast operation. When the
satellite MAC is defined, the MR-S2 will only route Unicast traffic that is specifically addressed
to the satellite MAC. This value does not affect the characteristics of multicast data flow.
4.2.10

MPE/IP Configuration

A configured PID value in hexadecimal is required for MPE/IP data to be extracted from the
transport stream and sent to the CPU. Once a valid PID value is configured, and data is found on
a transport stream, the data is decapsulated and delivered to the Ethernet port. A value of
0x1FFF is disabled.
Name
User defined name (cannot contain spaces)
PID
A valid PID in hexadecimal format, ranging from 0x10 to 0x1FFE (0x1FFF disables the item).
The PID value cannot be in use elsewhere on the receiver.
Mode
MPE/IP or DVB-TS

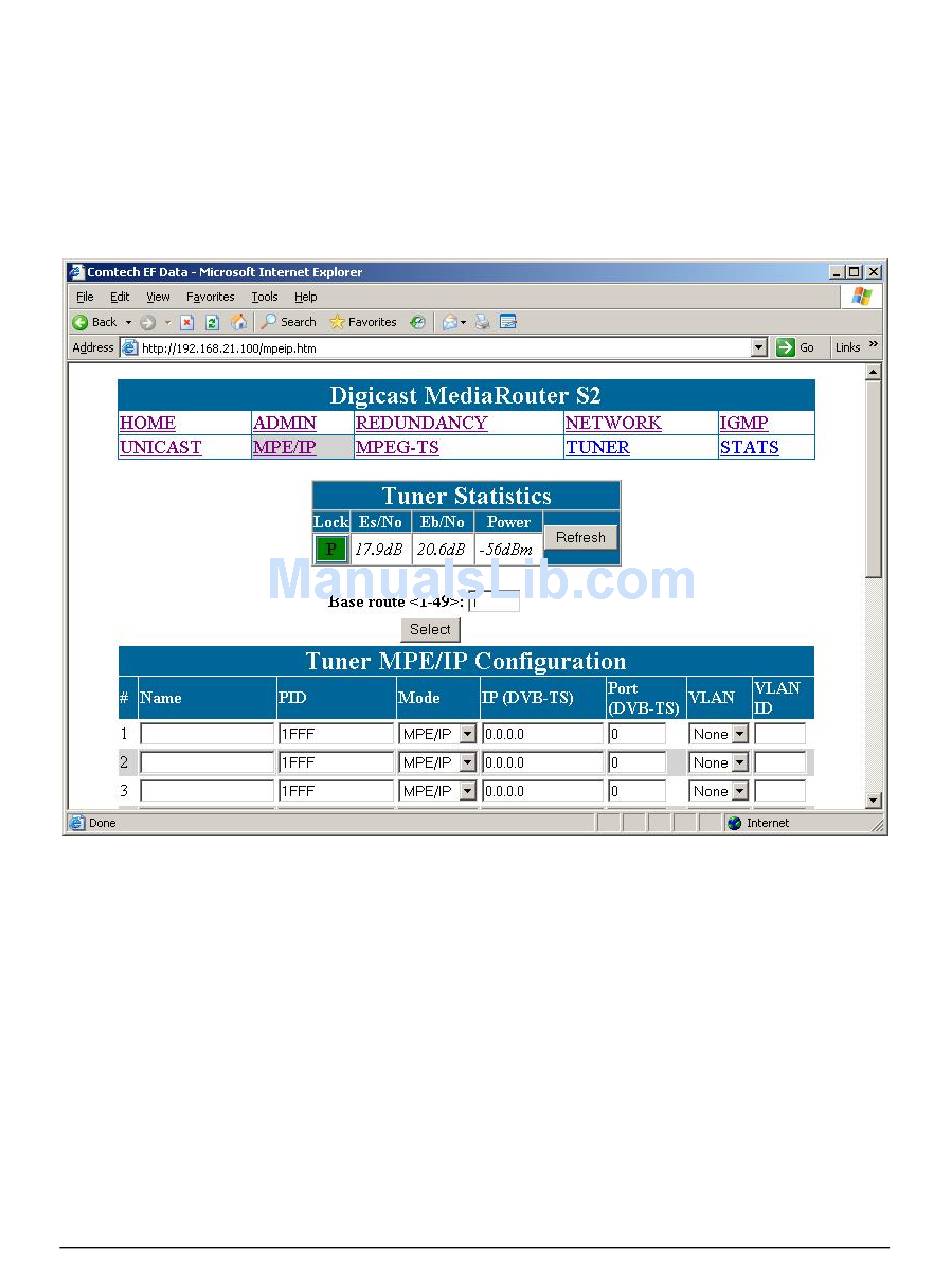

Figure 4-13. MPE/IP Configuration page

4-15
Revision 1
MN-0000032
