Digicast Media Router S2 Receiver CMR-5975 (MR-S2)
Device Management via User Interfaces
4.2.8

IGMP Configuration

Enable
Select the Boolean if IGMP version 2 (IGMPv2) is to be supported. If the Boolean is not
selected, all received Multicast IP is forwarded to the Ethernet, but if support is enabled, no
Multicast IP will be forwarded to the Ethernet, until a subscriber has joined the Multicast group.
Query Period
How often a solicitation is made for Multicast subscribers.
Maximum Tries
The maximum number of attempts the MR-S2 will make for soliciting for Multicast subscribers
before the Multicast stream is pruned off.
Response Timeout
The maximum amount of time the MR-S2 will wait for a Multicast Subscribers before the
Multicast stream is pruned off.

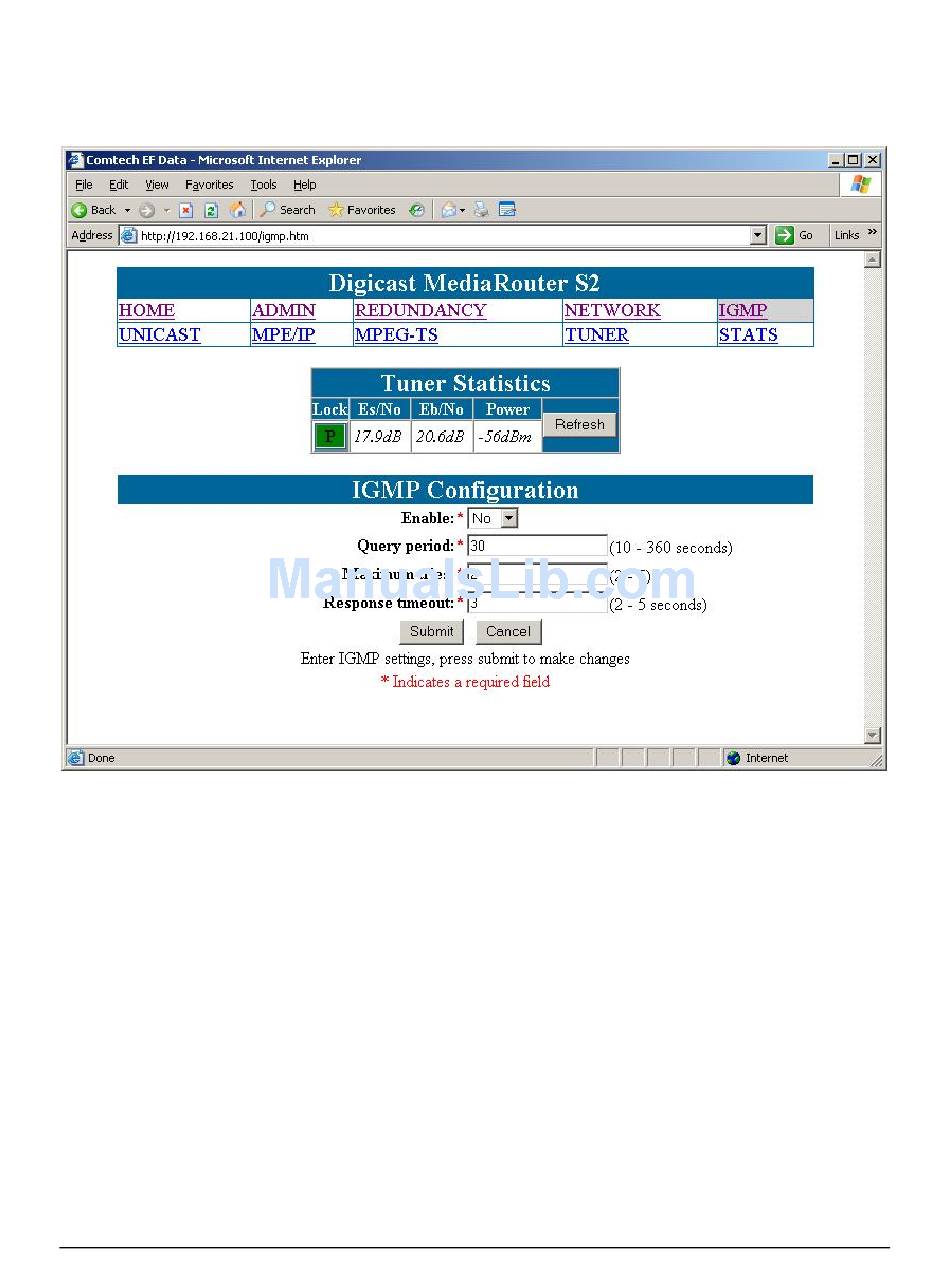

Figure 4-11. IGMP Configuration page

4-13
Revision 1
MN-0000032
