V i p e r s a t C o n f i g u r a t io n

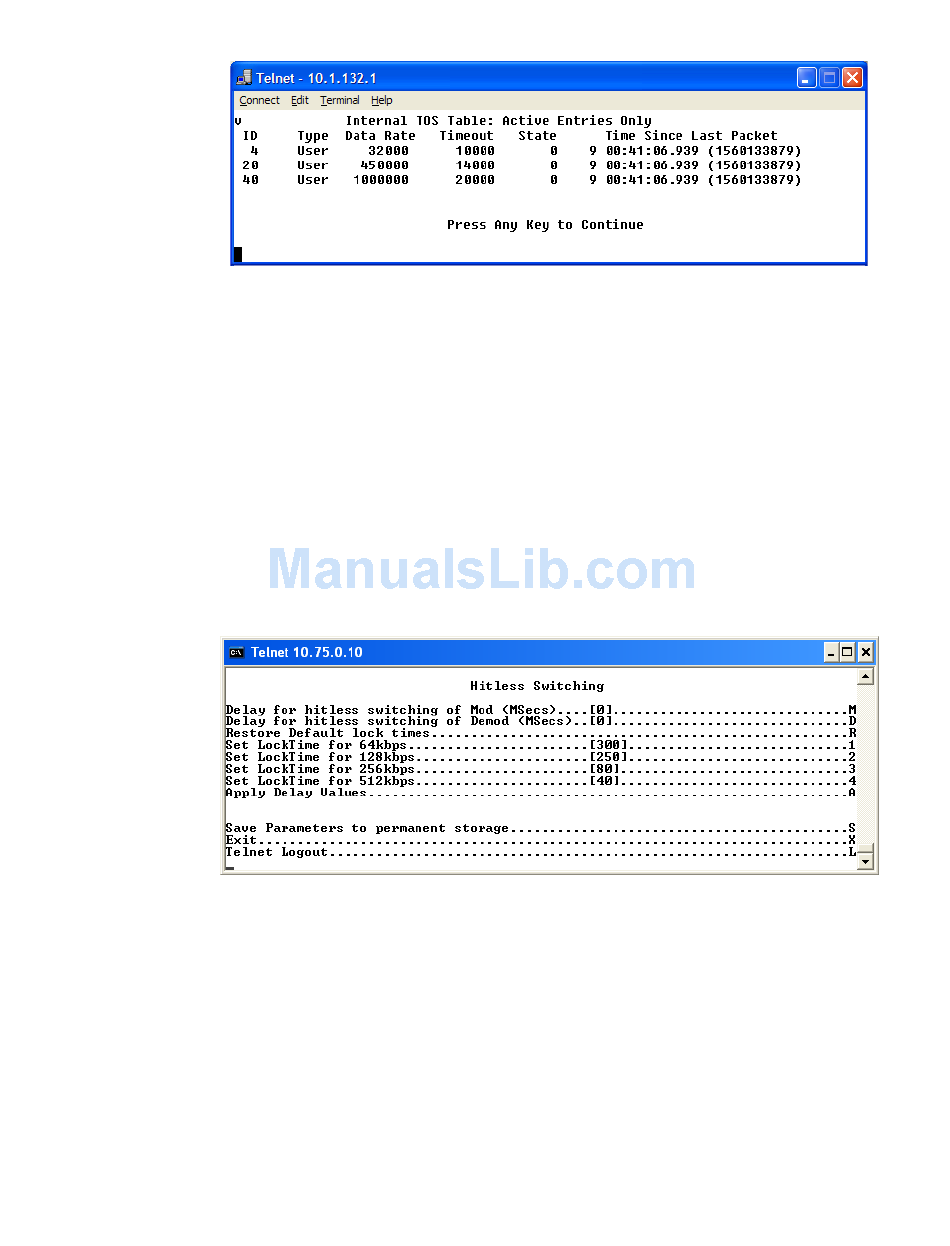

Figure 3-51
ToS View screen

Hitless Switching Parameters

Unless inherent delays in configuring both ends of a satellite bandwidth link
during dynamic switching are accounted for, transmitted data may be lost
during the transition. The time for a switch command to be sent across the satel-
lite link (~ 250 ms), the command processing time, as well as receiver acquisi-
tion time must be considered. The Vipersat Hitless Switching feature provides
a means to coordinate timing and utilize buffering to eliminate these data
outages.
To access the Hitless Switching screen, enter H from the STDMA/SCPC Auto
Switching screen (see figure 3-35).
Figure 3-52
Hitless Switching screen
This screen will initially display all lock times as -1, indicating that Hitless
Switching is currently disabled. To enable the Hitless Switching feature, enter R
at the command prompt to restore default lock times.

Delay for Mod

This parameter allows the operator to insert additional delay to buffer more data
after modulator transmission is ceased. Enter M to modify this parameter.
C h ap t e r U s i n g t h e C o m m a n d L in e I n t e r f a c e ( C L I )
3 - 3-41
