- Page 1 1x8 DVI DA U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1x8 DVI DA is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the 1x8 DVI DA Dip Switch Guide Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction

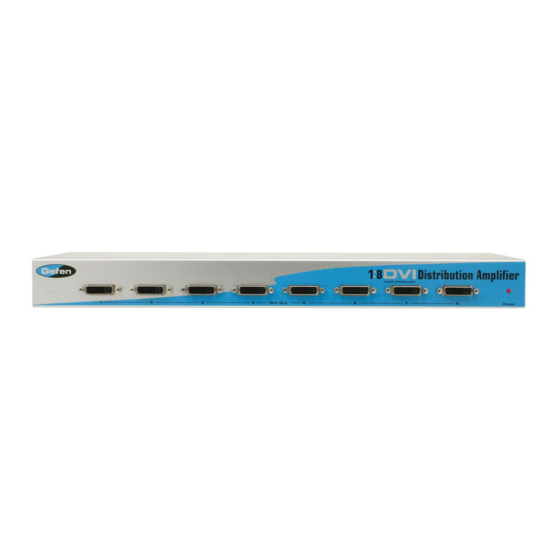

The Gefen 1x8 DVI DA allows one HDTV DVI device to be distributed easily in to eight HDTV DVI compatible monitors or projectors. Simply connect your HDTV displays to the DA’s display outputs. -
Page 5: Features
FEATURES Features • Distributes easily up to eight DVI/HDMI displays • Maintains 480i, 480p, 720p, 720i, and 1080i, 1080p resolutions • Maintains highest DVI single link video resolution • Maintains highest DVI digital audio signal • Supports HDCP compliant devices •... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS... -
Page 7: Connecting And Operating The 1X8 Dvi Da
CONNECTING AND OPERATING THE 1X8 DVI DA How to Connect the 1x8 DVI DA to your devices 1 Connect the supplied cable from the HDTV DVI source into the 1x8 DVI DA input. 2 Connect the cables from your displays (monitor or projector) into the DVI outs of the 1x8 DVI DA. -
Page 8: Dip Switch Guide
1, 2, and 5. Please refer below for the different EDID modes. To access the Dip Switches, remove all screws from the bottom and sides of the Gefen unit. Remove the hex screw heads from each side of the rear DVI port. Carefully slide the unit apart. -
Page 9: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ...1.65 GHz Input Video Signal ...1.2 volts p-p Input DDC Signal ...5 volts p-p (TTL) Single Link Range ...1080p / 1920 x 1200 Input Connector Type ...DVI (Digital Only) Output Connector Type ...DVI (Digital Only) Power Consumption ...60 Watts (max.) Power Supply ...12-24VDC Dimensions ...17”W x 1.75”H x 7.25”D...
