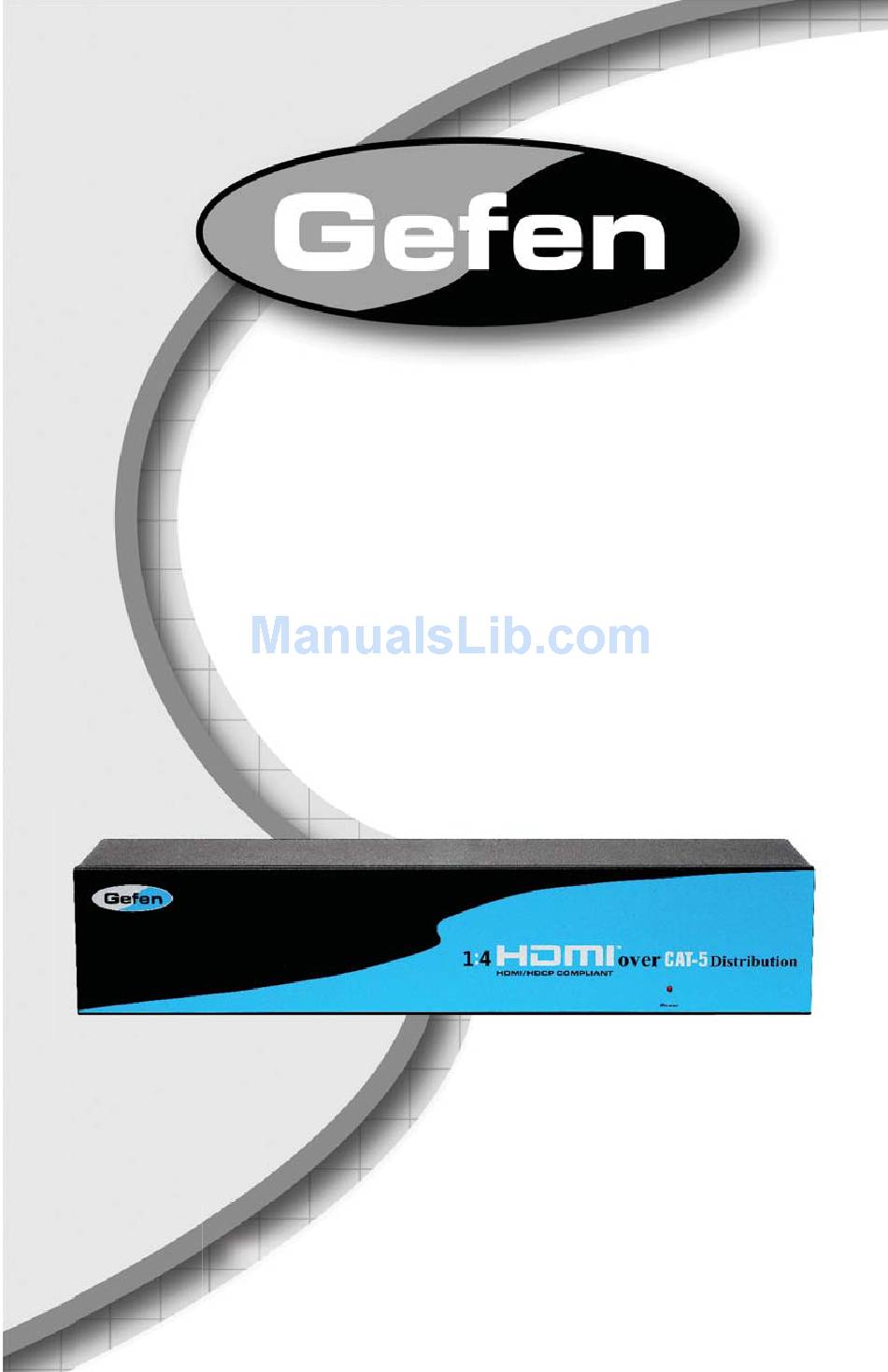

- Page 1 ® 1:4 HDMI CAT5 Distribution Amplifier EXT-HDMI-CAT5-144 User’s Manual www.gefen.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1:4 HDMI CAT5 Distribution Amplifi er is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Panel Descriptions Receiver Panel Descriptions Connecting And Operating The 1:4 HDMI CAT5 DA Manual Equalization Procedure Network Cable Wiring Diagram Specifi cations Warranty... -
Page 4: Introduction
The Gefen 1:4 HDMI CAT5 DA The Gefen 1:4 HDMI Over CAT5 Distribution Amplifi er allows you to distribute a single HDMI video source remotely to as many as 4 separate HDTV displays via inexpensive and standard CAT5 cables as well as HDMI cables. -
Page 5: Operation Notes
READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 1:4 HDMI CAT5 DA • The 1:4 HDMI CAT5 DA unit is housed in a metal box for better RF shielding. • An HDMI jumper cable (4 are included) must be connected from each of the lower board outputs to each of the upper board inputs for proper extension operation. -
Page 6: Features
Enables greater versatility when installing multiple HDMI displays • HDMI / HDCP compliant Package Includes (1) 1:4 HDMI CAT5 Distribution Amplifi er (Sender Unit) (1) 6 foot HDMI Cable (M-M) (4) 1 foot HDMI Cable (M-M) (1) 24V DC power supply... -
Page 7: Sender Panel Descriptions
SENDER PANEL DESCRIPTIONS Front Panel Power LED Indicator Back Panel HDMI 1 HDMI 2 HDMI 3 HDMI 4 Input Input Input Input 24V DC Power Input HDMI 1 HDMI 2 HDMI 3 HDMI 4 RJ-45 Outputs RJ-45 Outputs RJ-45 Outputs RJ-45 Outputs Main HDMI 1*... -
Page 8: Receiver Panel Descriptions
RECEIVER PANEL DESCRIPTIONS Front Panel HDMI Output 5V DC Power input EQ trim pot Power LED Indicator Back Panel DDC RJ-45 Port VIDEO RJ-45 Port... -
Page 9: Connecting And Operating The 1:4 Hdmi Cat5 Da
CONNECTING AND OPERATING THE 1:4 HDMI CAT5 DA How to Connect the 1:4 HDMI CAT5 DA Connect the single HDMI source to the 1:4 HDMI CAT5 DA main HDMI input using the supplied 6 foot HDMI cable. Using the four supplied 1 foot HDMI jumper cables, connect each output on the lower portion of the back panel to each of the HDMI inputs on the upper portion of the 1:4 HDMI CAT5 DA. -
Page 10: Manual Equalization Procedure
MANUAL EQUALIZATION PROCEDURE The HDMI CAT5 DAR receiver units have a set of dip switches located on the underside of their casings. There is a piece of silver metallic tape that must be removed to expose these dip switches. Each HDMI CAT5 DAR receiver carries one bank of 4 dip switches. -
Page 11: Network Cable Wiring Diagram
Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. -
Page 12: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ............... 165 MHz Input Video Signal ................1.2 volts p-p Input DDC Signal ................. 5 volts p-p (TTL) Single Link Range ..............1080p/1920 x 1200 HDMI Video Connector ............Type A, 19 Pin Female Power Supply .................... 24V DC Power Consumption ............... -
Page 13: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 15 Rev X1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
